Home >> Ford >> 1993 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HB - Flexible Fuel (FF) Control >> HB16 - Check Power at HO2S Harness Connector

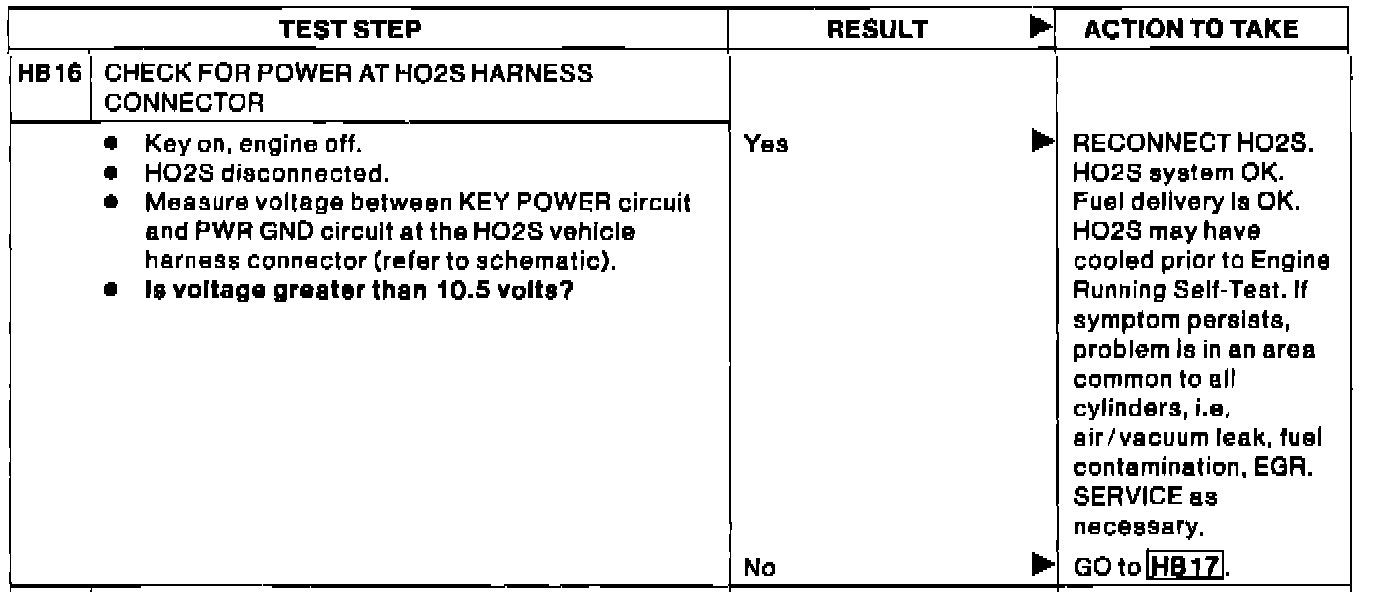

HB16 - Check Power at HO2S Harness Connector

Pinpoint Test HB16:
