Home >> Ford >> 1993 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HB - Flexible Fuel (FF) Control >> HB11 - Check HO2S On Engines With MAF Sensor

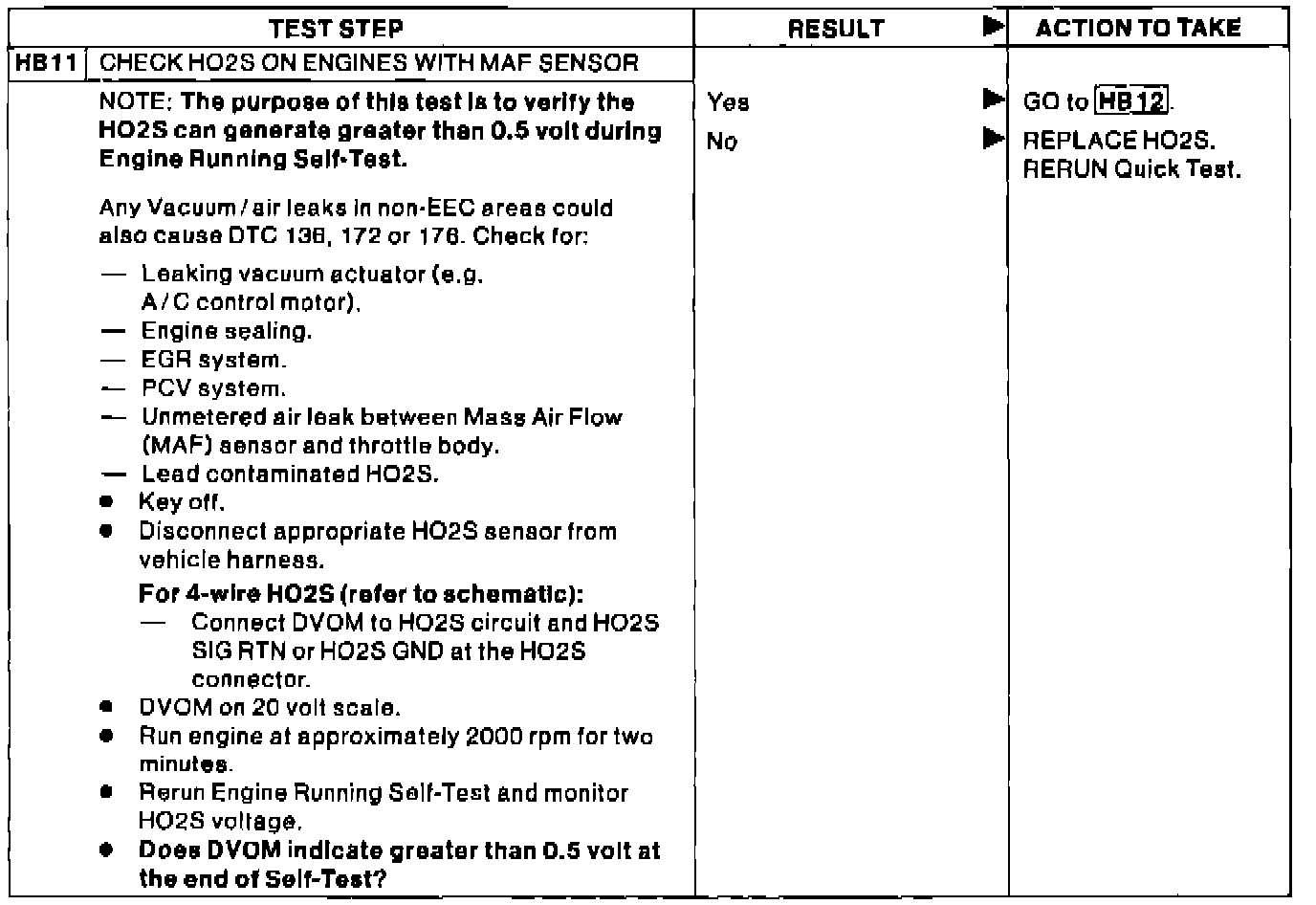

HB11 - Check HO2S On Engines With MAF Sensor

Pinpoint Test HB11:
