DE - Flexible Fuel (FF) Sensor
>>

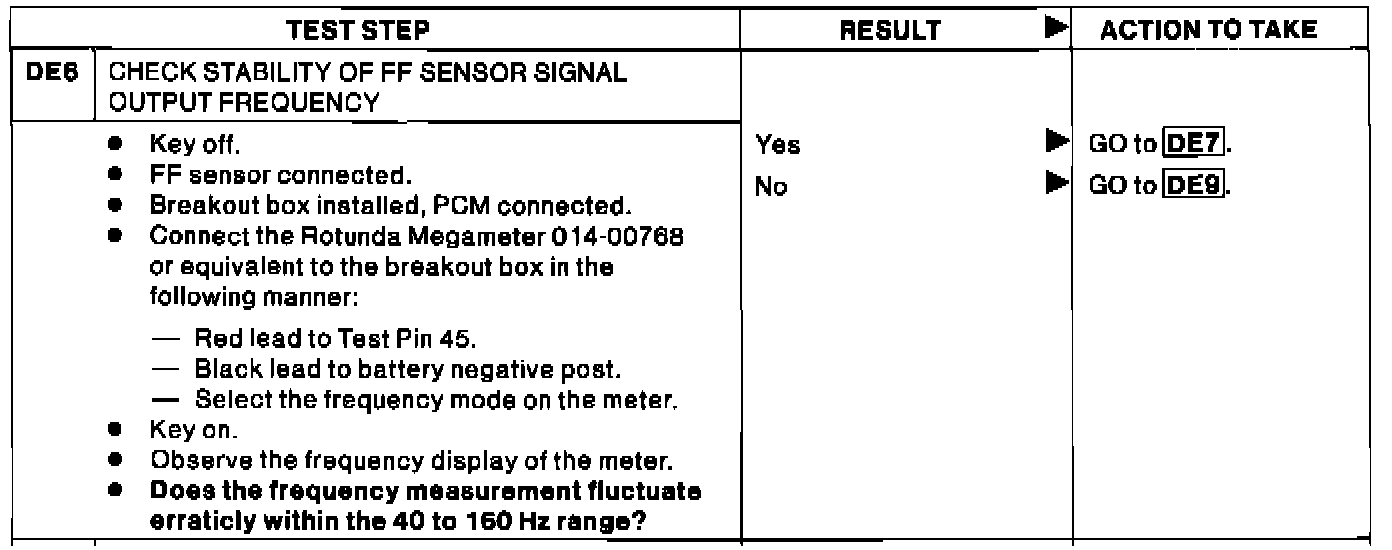

DE6 - Check Stability of FF Sensor Signal Output Frequency
DE6 - Check Stability of FF Sensor Signal Output Frequency
Pinpoint Test DE6:
