Camshaft Position Sensor: Service and Repair

CAUTION: Syncro Positioning Tool T93P-12200-A (303-453) must be obtained prior to installation of the replacement synchronizer assembly. Failure to follow this procedure will result in the fuel system being out of time with the engine, possibly causing engine damage.

Camshaft Sensor:

1. Disconnect the negative battery cable.
2. Remove the engine torque strut.
3. Remove the power steering belt, then the pump pulley.
4. Disconnect the camshaft sensor wiring connector.

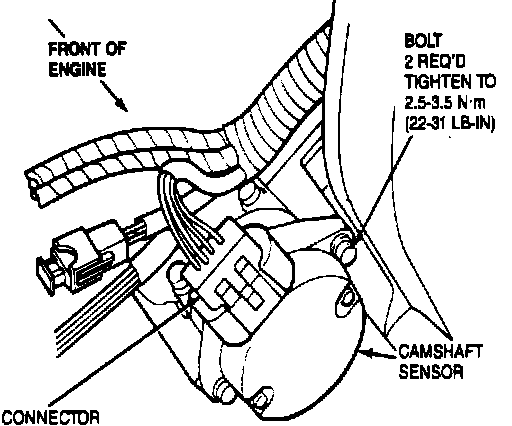

5. Remove the camshaft sensor retaining screws and then the sensor.
6. Install the camshaft sensor and retaining screws, torquing the screws to 22-31 lb. in. (2.5-3.5 N-m).
7. Connect the camshaft sensor wiring connector.
8. Install the power steering pulley, then the belt.
9. Install the engine torque strut and the battery ground cable.
