Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>

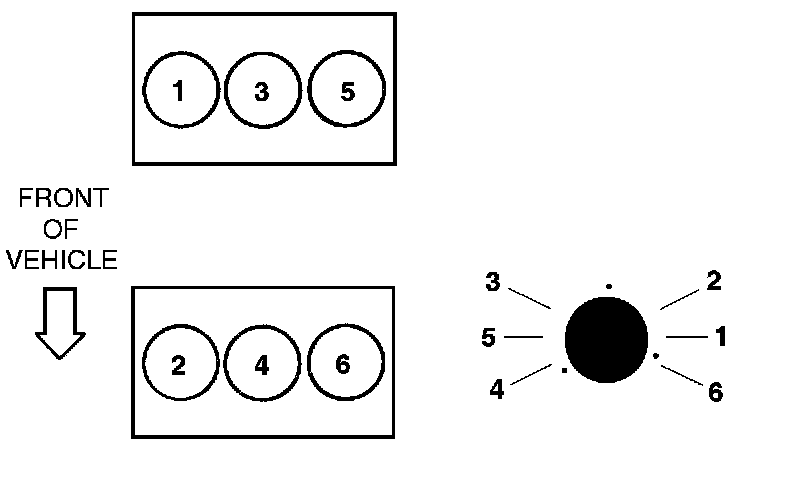

Firing Order
Firing Order

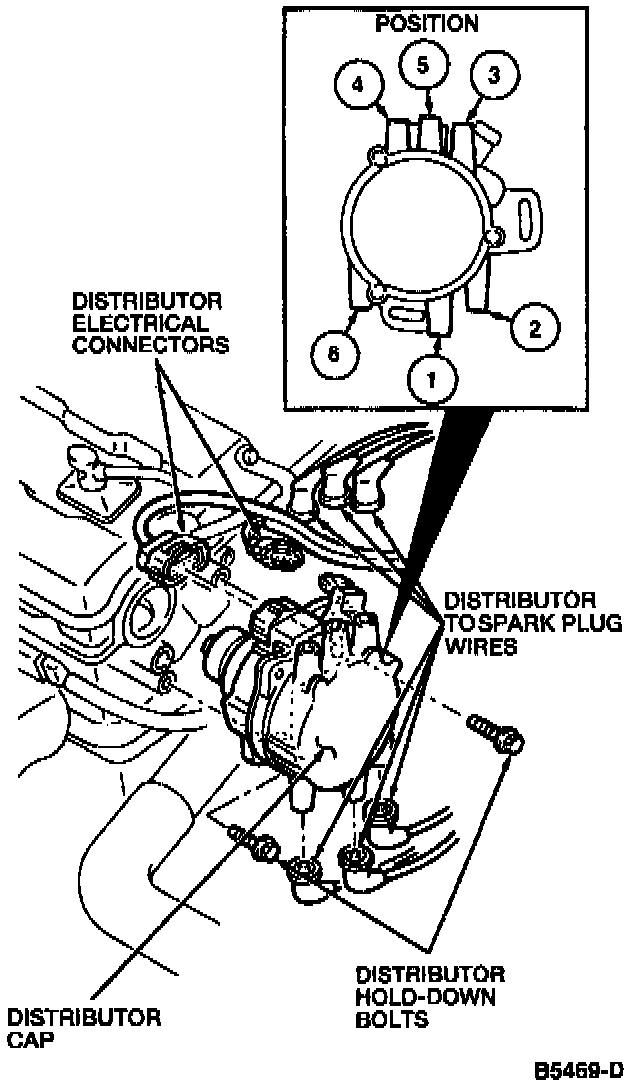

Distributor and Related Components:
V6
Firing Order
: 1 2 3 4 5 6
(2.5L Probe, 3.0L & 3.3L Villager
ONLY
)
