Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PID's) >> Diagnostic Reference Values >> Manual Transmission

Manual Transmission

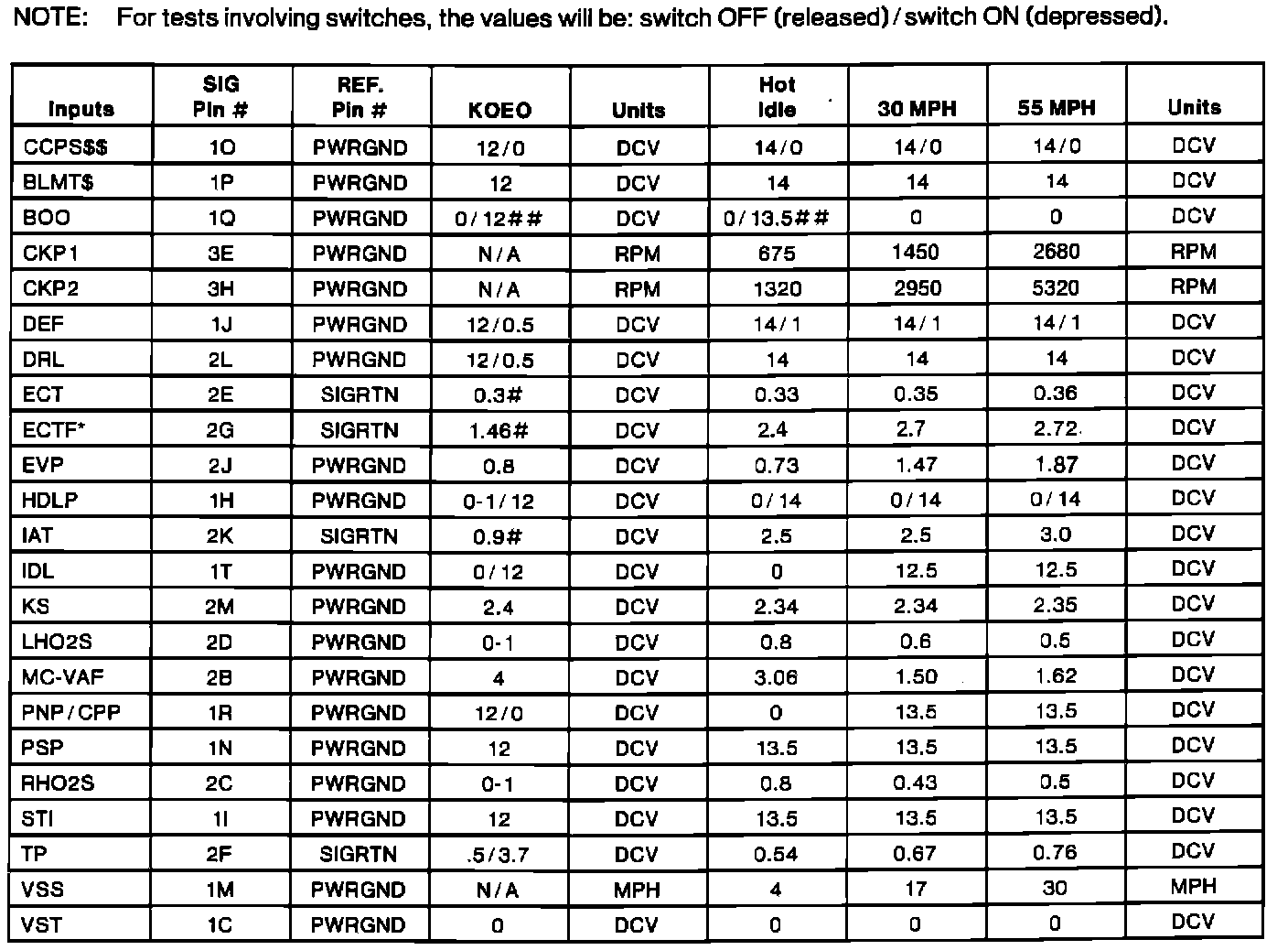

Diagnostic Reference Values (Part 1):

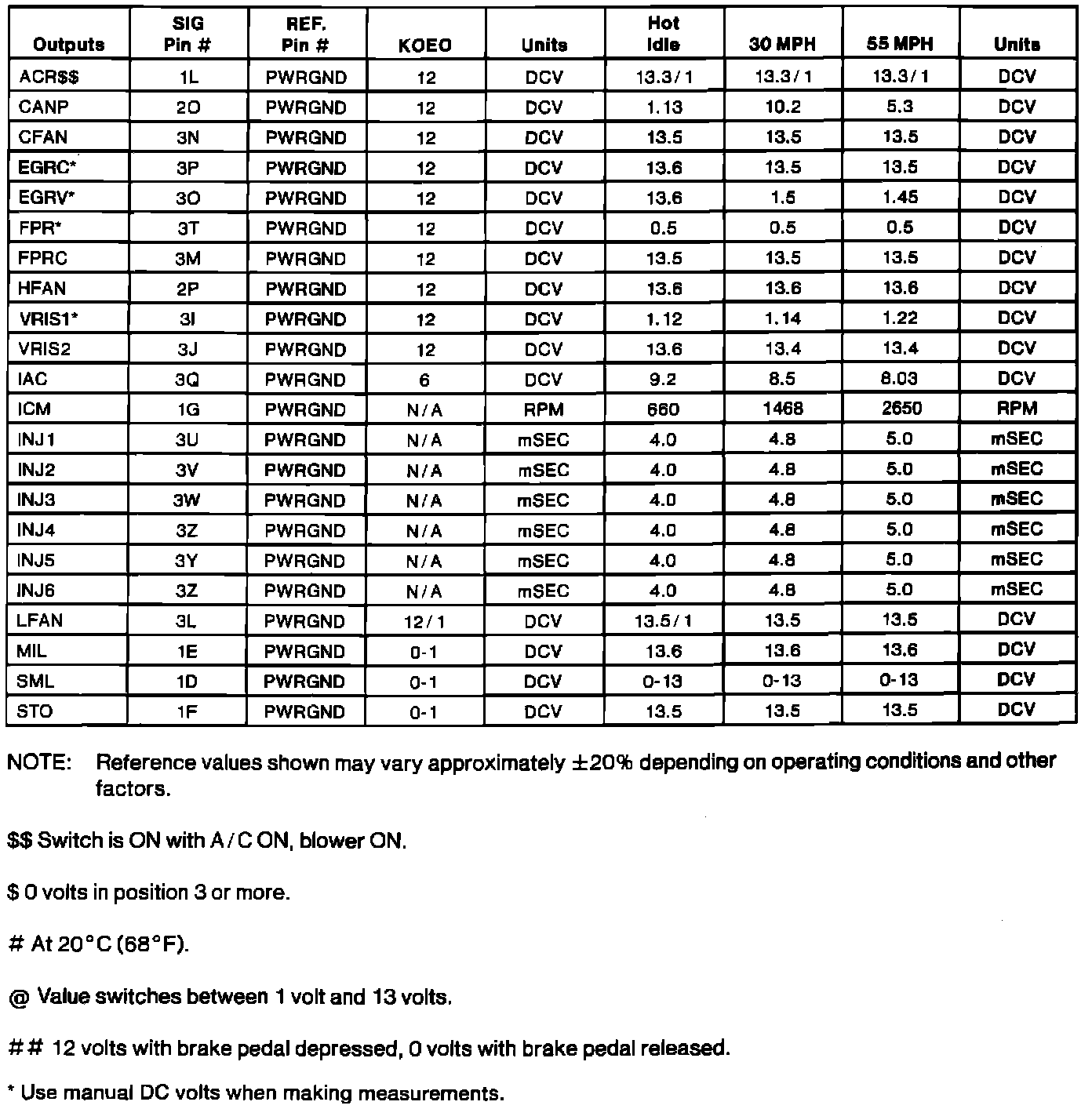

Diagnostic Reference Values (Part 2):
