Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
SC17 - SC19
SC17 - SC19

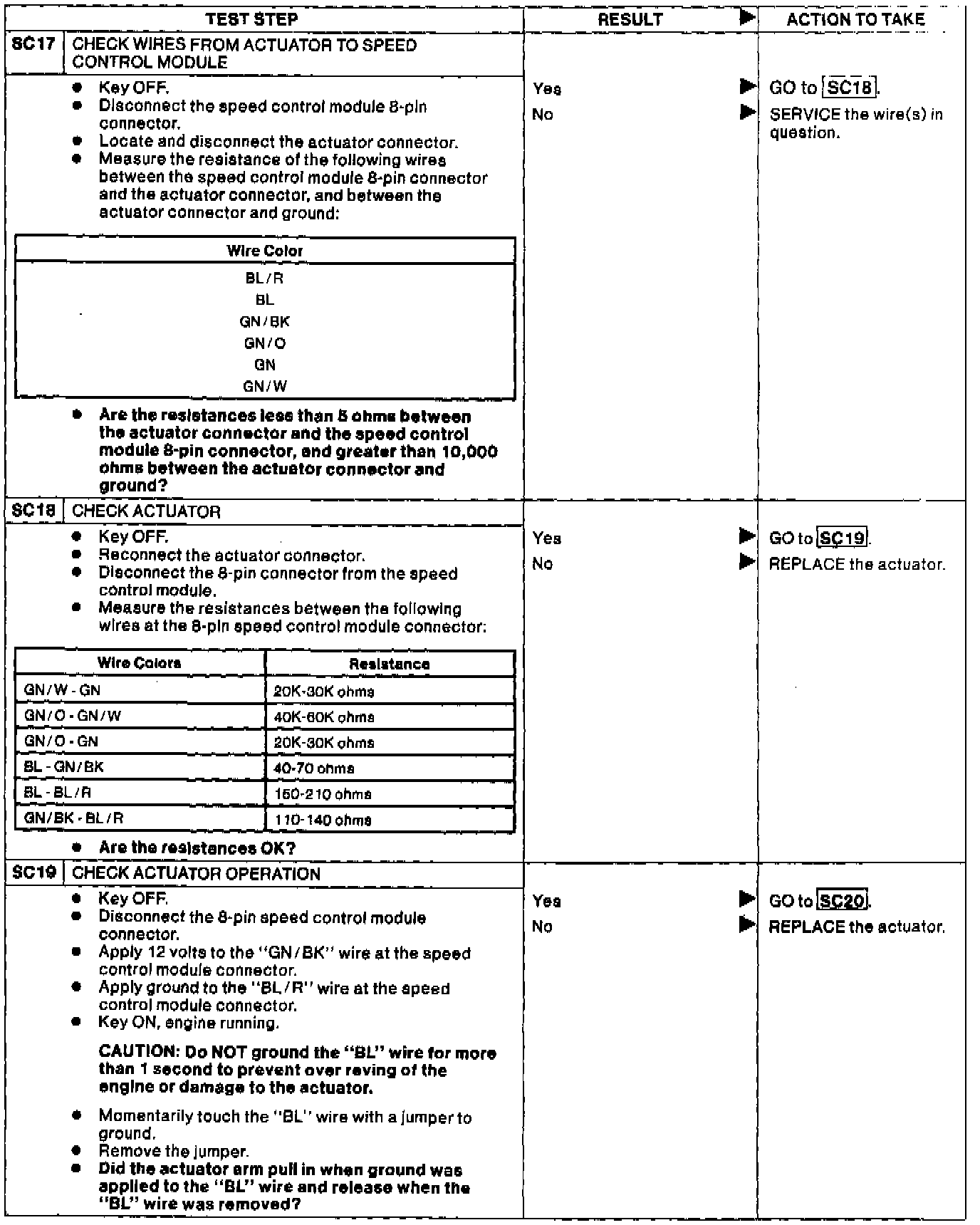

Fig. 105 Pinpoint Test SC17-SC19:
