Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> SC13 - SC16

SC13 - SC16

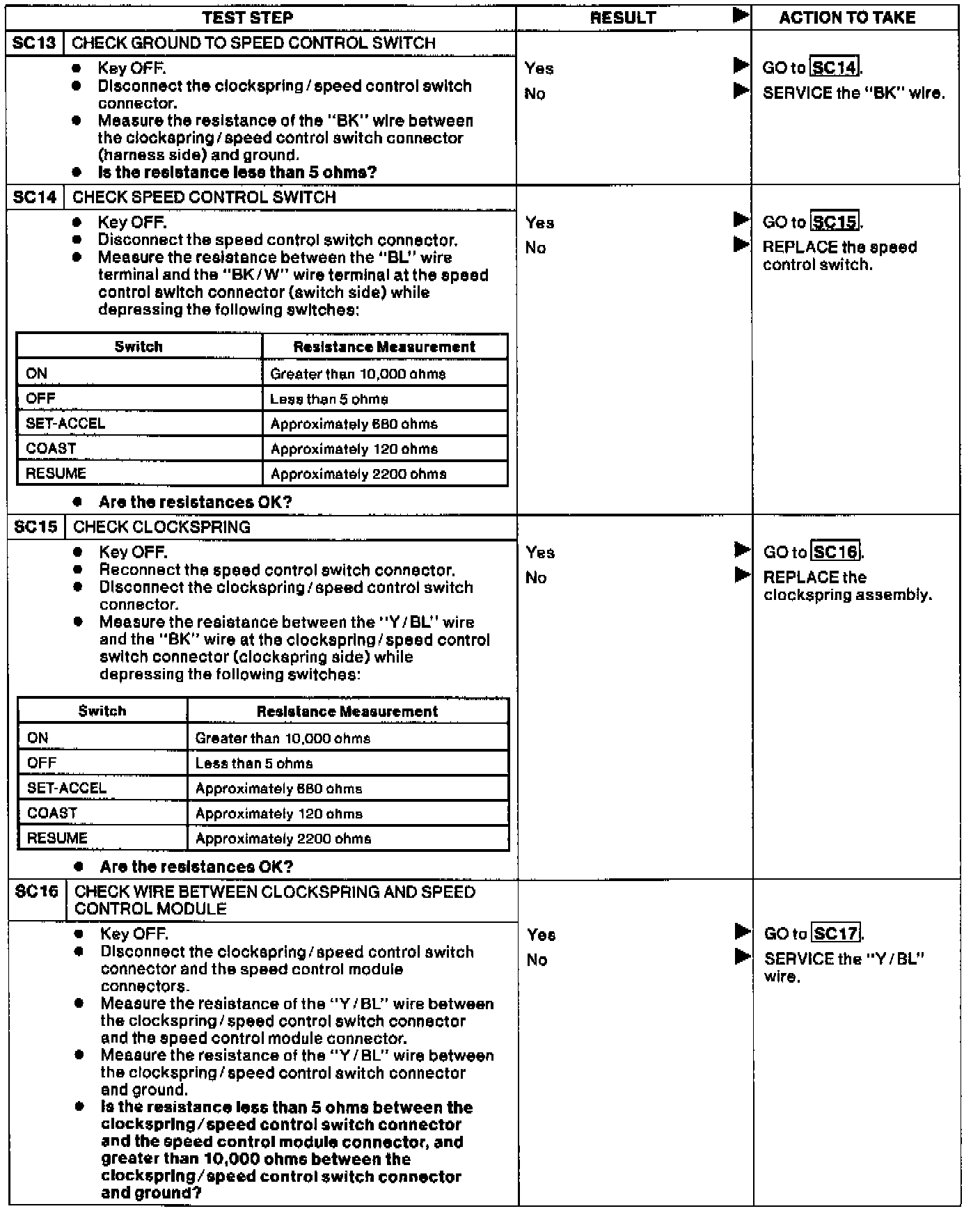

Fig. 105 Pinpoint Test SC13-SC16:
