Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
SC1 - SC4
SC1 - SC4

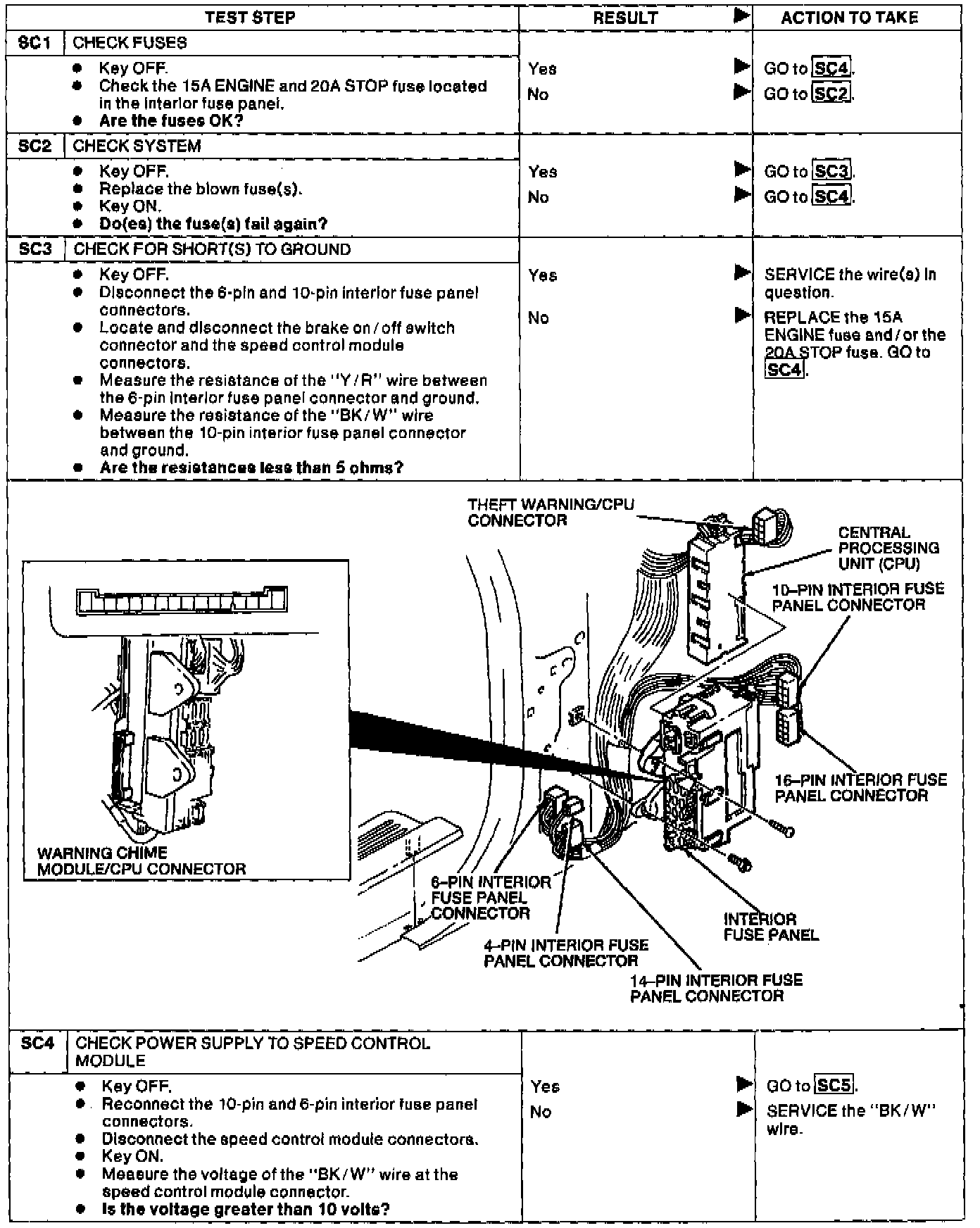

Fig. 105 Pinpoint Test SC1-SC4:
