Installation

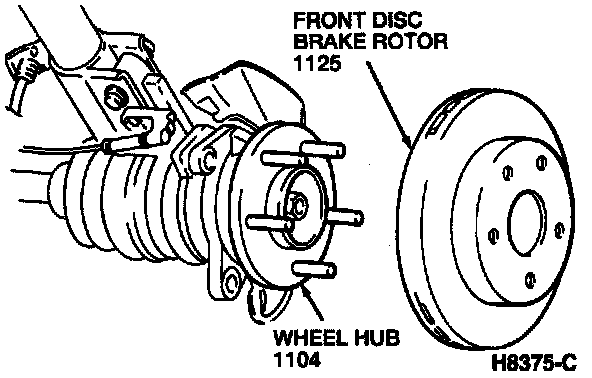

Front Disc Brake Rotor:

1. Attach the front disc brake rotor to the wheel hub.
2. Install the front disc brake caliper anchor bracket. Tighten the front disc brake caliper anchor bracket bolts to 78-102 N-m (58-74 lb-ft).
3. Install the wheel and tire assembly. Tighten the wheel hub bolts to 88-118 N-m (65-87 lb ft).
4. Lower the vehicle.
