Transmission Position Sensor/Switch: Testing and Inspection
Component Testing: Park/Neutral Position (PNP) Sensor

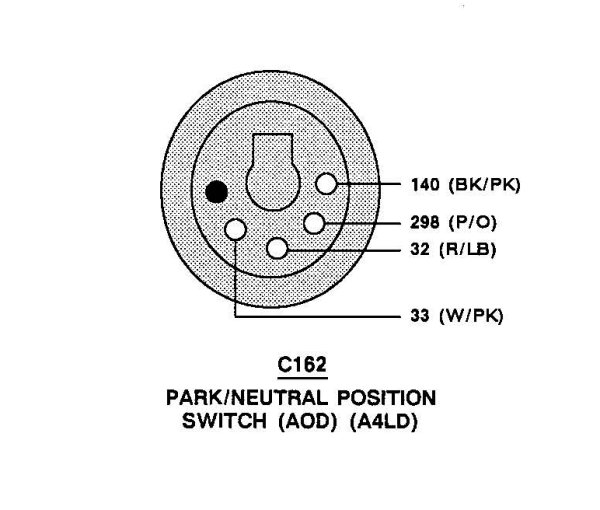

C162-PNP Switch:

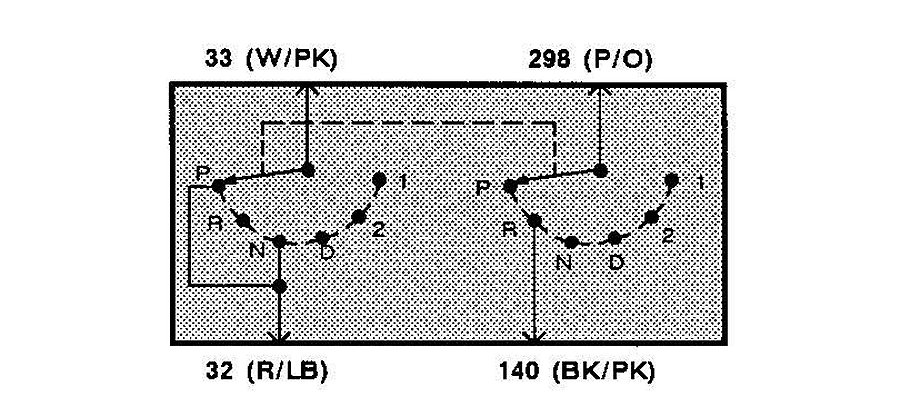

Schematic:

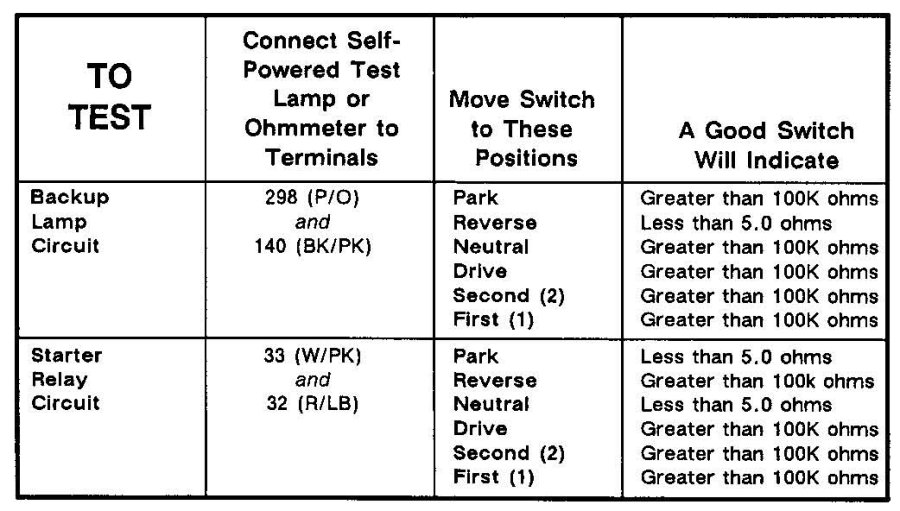

Component Testing Procedure:
