VAF - Testing Notes and Schematic

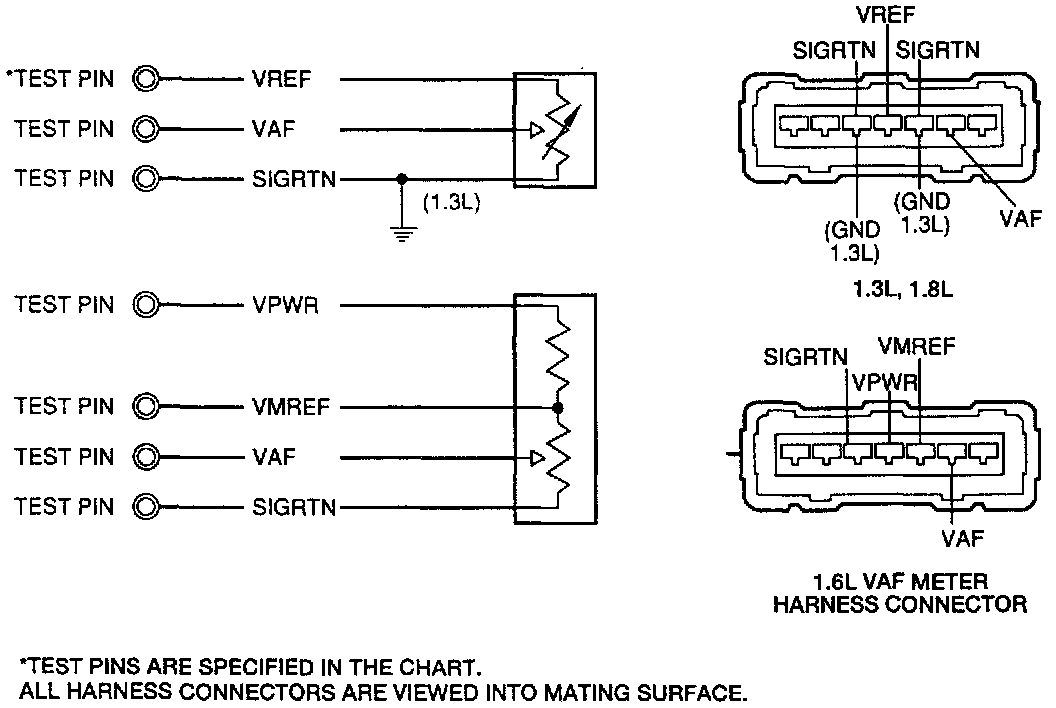

Pinpoint Test VAF Schematic:

Enter this Pinpoint Test only when trouble code 08 is received in Quick Test step 5 or 6, or when Quick Test step 11 directs you here.

This test is only intended to diagnose the VMREF and VAF circuits.
