STI - Testing Notes and Schematic

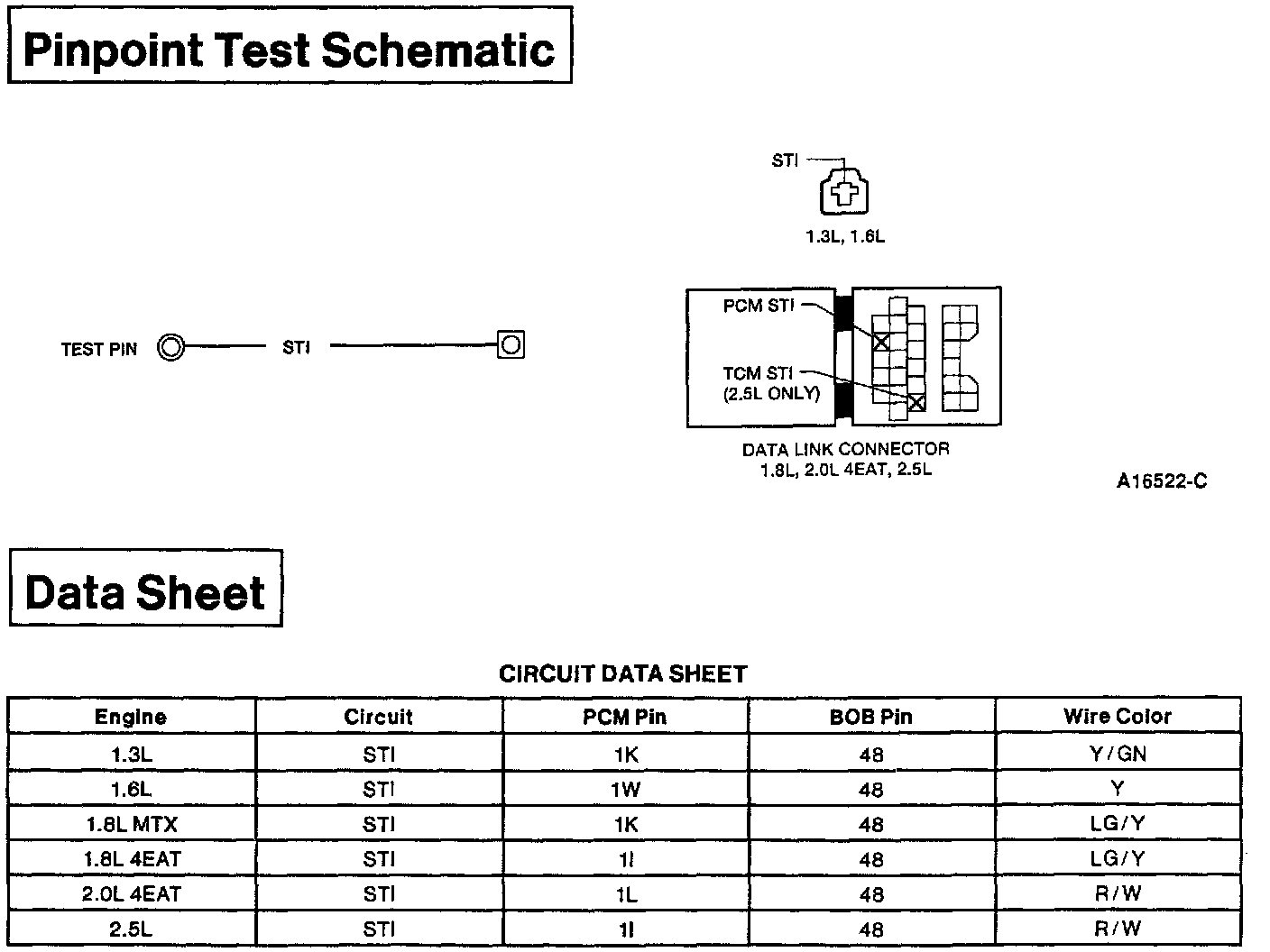

Pinpoint Test STI Schematic & Circuit Data:

Enter this Pinpoint Test only when directed here by Quick Test step 4.

This test is only intended to diagnose the STI circuit.
