Brake Signal: Service and Repair

Brake ON/OFF Switch:

REMOVAL

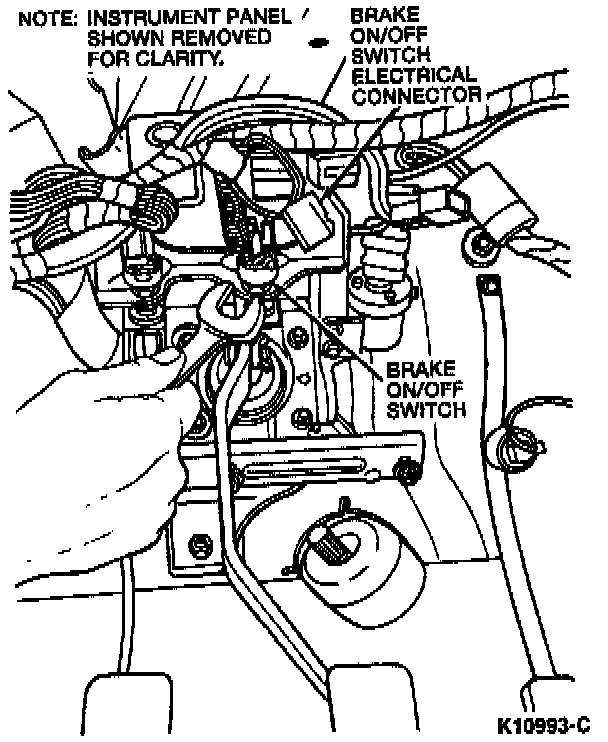

1. Disconnect the Brake On/Off (BOO) switch electrical connector.

2. Remove the nut and the BOO switch from the bracket.

3. Remove the nut from the BOO switch.

INSTALLATION

1. Install the nut on the BOO switch.

2. Position the BOO switch on the bracket and install the nut.

3. Adjust the BOO switch.

4. Connect the BOO switch electrical connector.
