Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Tests WW1 - WW3

Tests WW1 - WW3

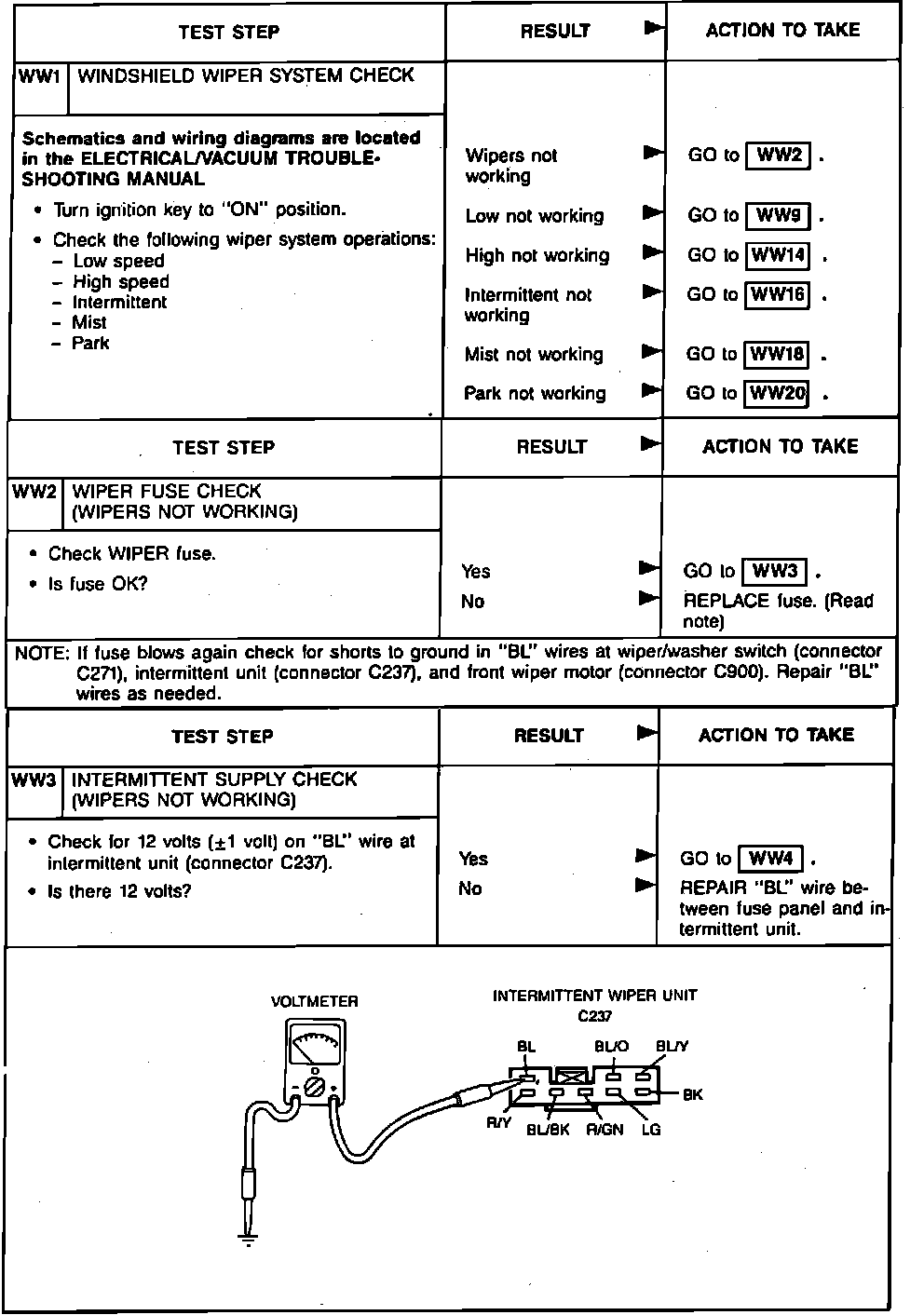

Fig. 16 Wiper System Diagnosis & Testing (Part 1 Of 24):
