Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Rear Wiper System Diagnosis >> LW8 - Liftgate Wiper/Washer Switch Check

LW8 - Liftgate Wiper/Washer Switch Check

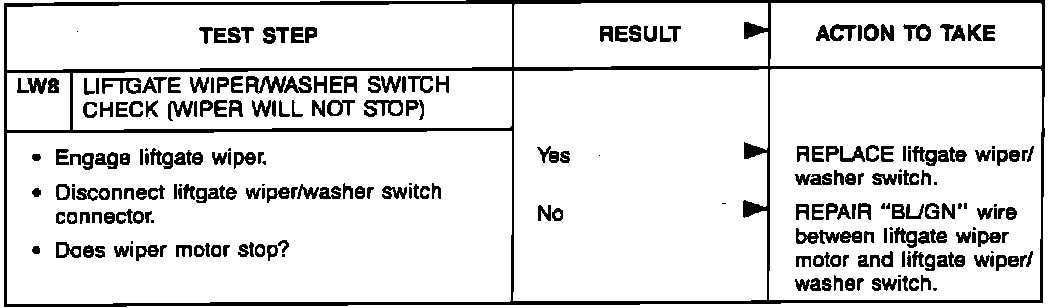

Fig. 9 Wiper System Diagnosis & Testing (Part 8 Of 8):
