Wiper Relay: Locations

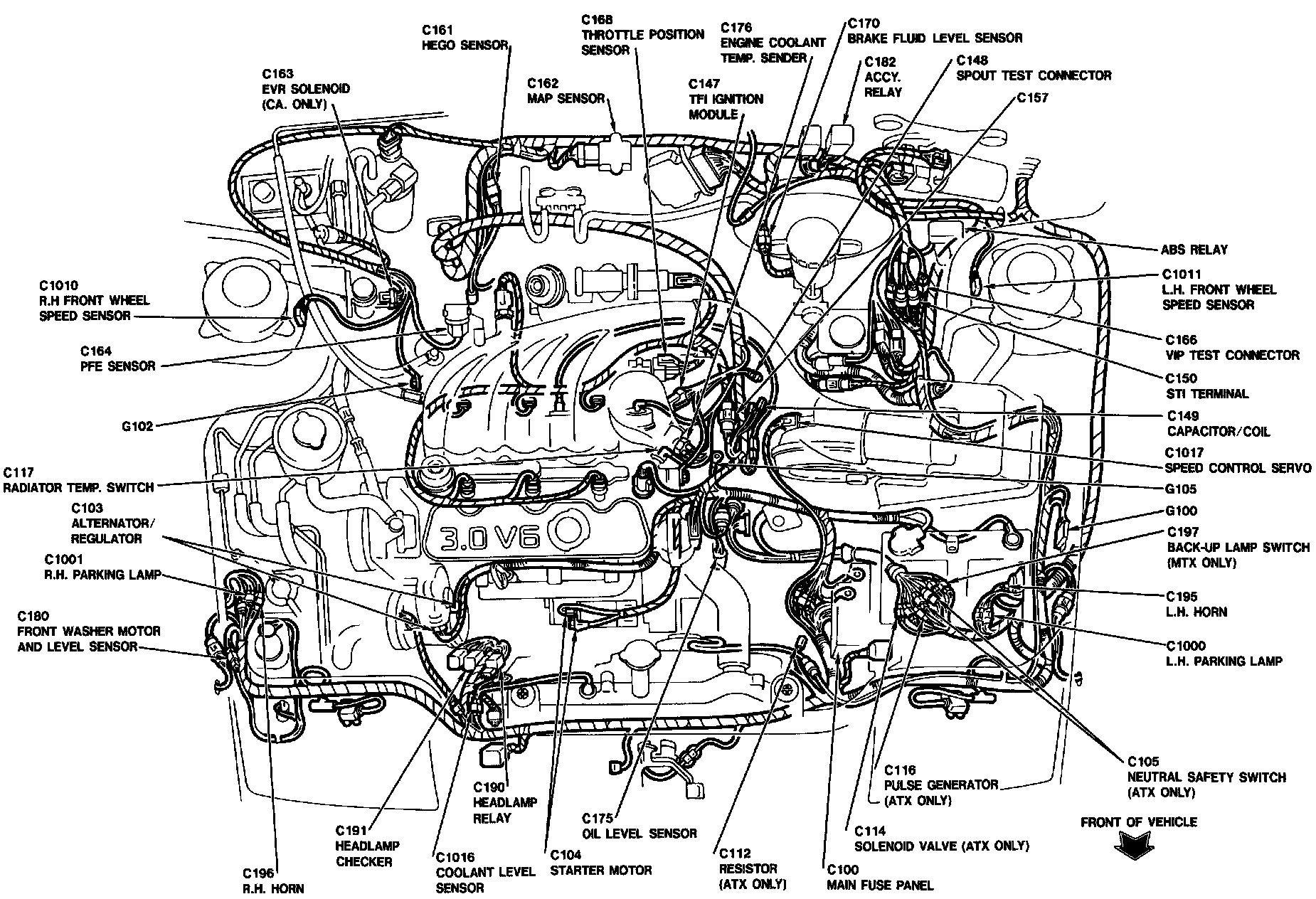

The Accessory Relay (ACCY) Connector C182 is located on the Left Hand side of the engine compartment, at the cowl panel.
