Removal and Replacement

Glass and Regulator - Power Windows

Removal

1. Remove the door trim panel. Doors
2. Remove the door mirror.
3. Remove the plastic door shield.
4. Remove the upper stopper retaining bolts and remove the stoppers.

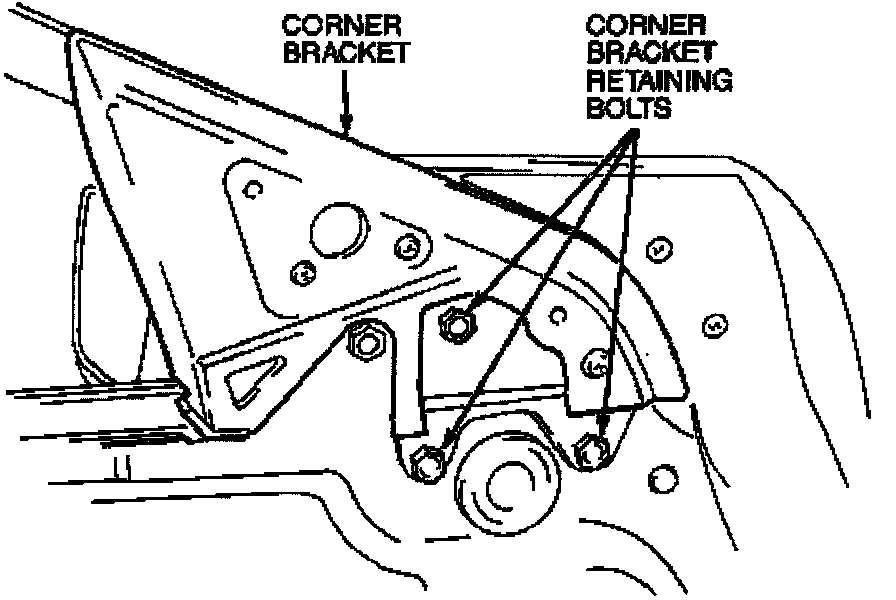

5. Remove the three bolts retaining the corner bracket. Remove the corner bracket.

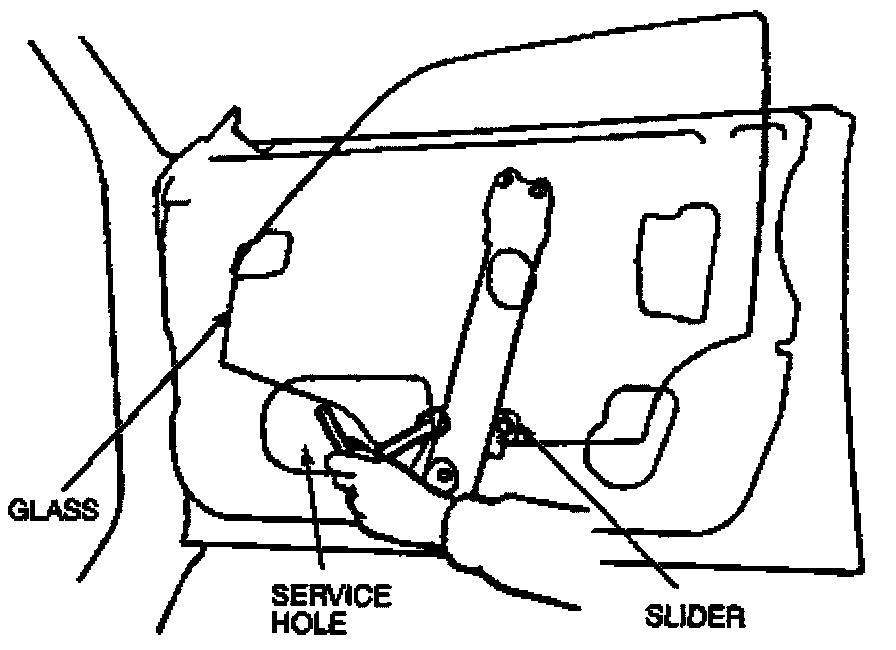

6. Position the door glass so that the nuts securing the window glass can be removed through the service hole. Remove the two retaining nuts.






7. Remove the door glass upward by sliding it through the glass guide.

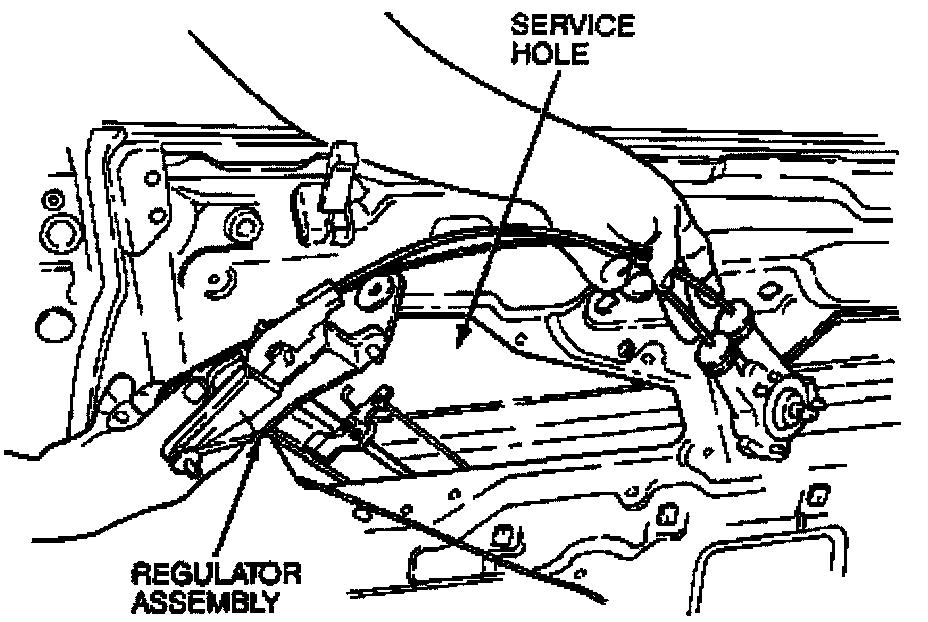

8. Remove the six window regulator-to-door retaining nuts. Disconnect the electric motor wire connector and remove the regulator assembly through the service hole.

Installation

To install, reverse the removal procedure.

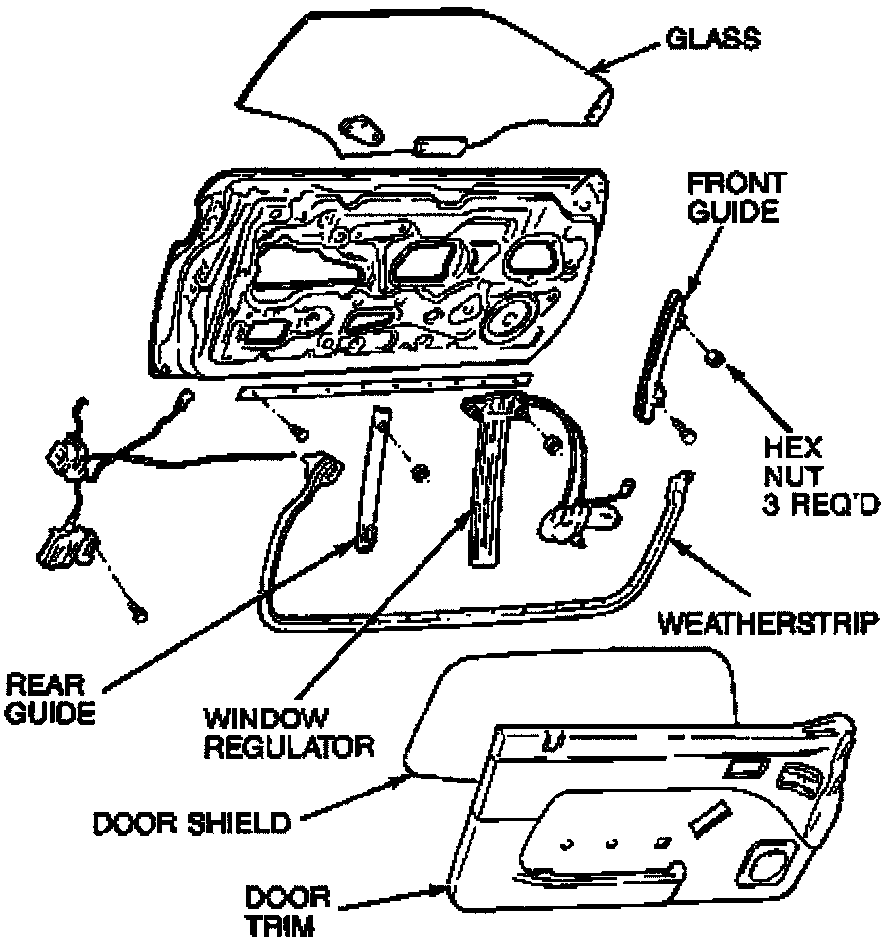

NOTE: Refer to the following illustration during installation.
