Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Locations

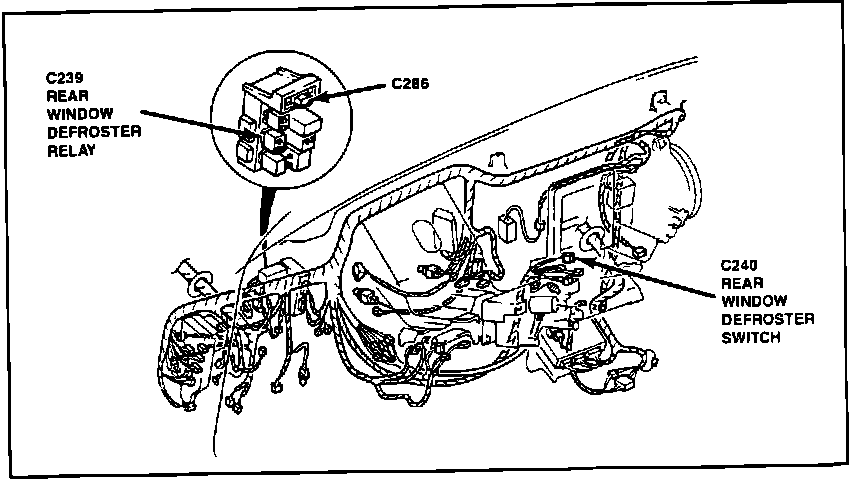

Heated Glass Element Relay: Locations

LH Side Of I/P:




Relay & Main Relay Box:




At Relay Box Under LH Side Of I/P
