Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Upshift Concerns >> Upshift Symptom Menu

Upshift Symptom Menu

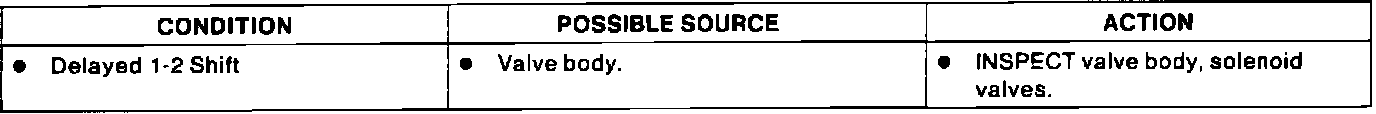

Upshift Symptom Chart (Part 1):

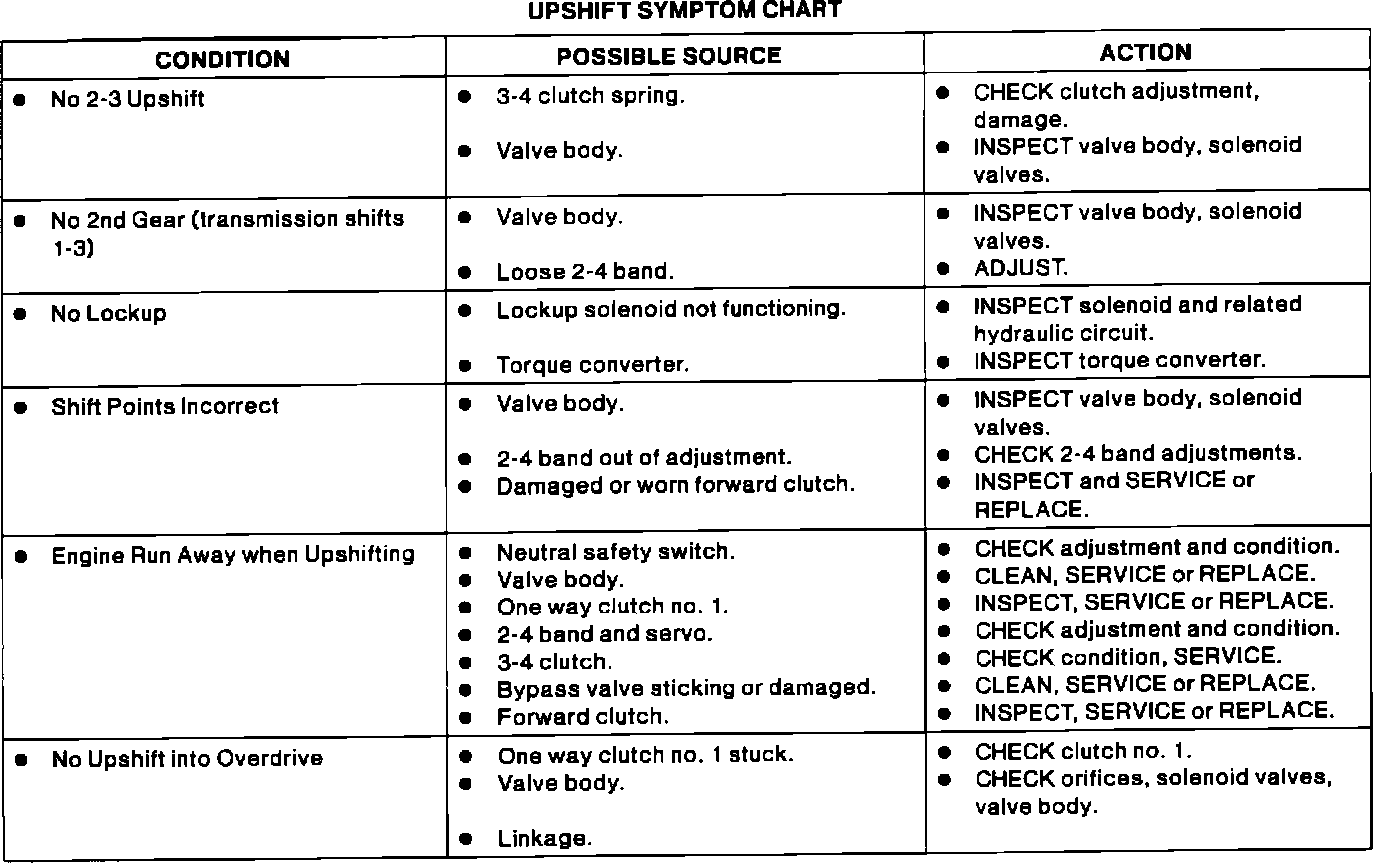

Upshift Symptom Chart (Part 2):
