Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Feel Concerns >> Shift Feel Symptom Menu

Shift Feel Symptom Menu

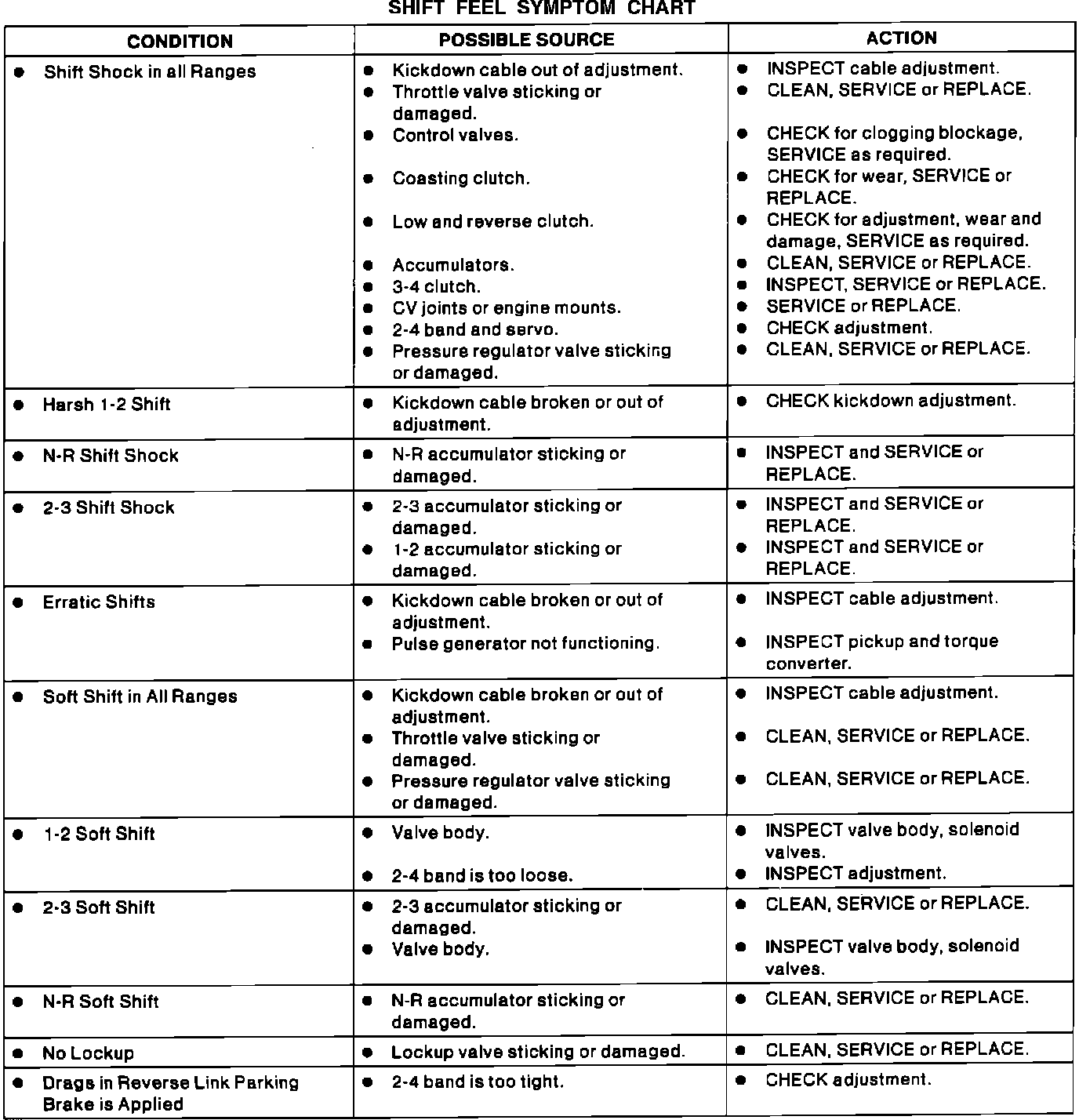

Shift Feel Symptom Chart (Part 1):

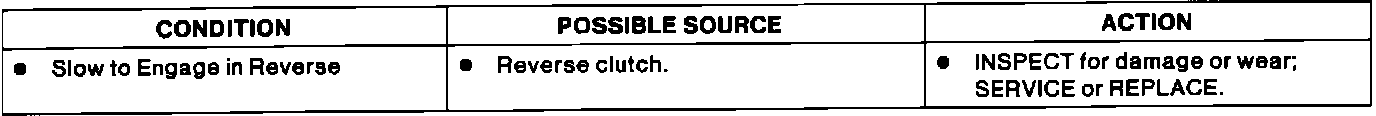

Shift Feel Symptom Chart (Part 2):
