A/T Line Pressure/Throttle Pressure - Revision

90ford15
SHOP MANUAL - 1990 - PAGES 17-01-19 AND 17-01-20 - LINE PRESSURE AND THROTTLE PRESSURE

REVISION

Article No. 90-6B-38

FORD: 1990 PROBE







ISSUE: The transaxle line pressure and throttle pressure specifications have been revised. The affected pages are 17-01-19 and 17-01-20 of the 1990 Probe Shop Manual.

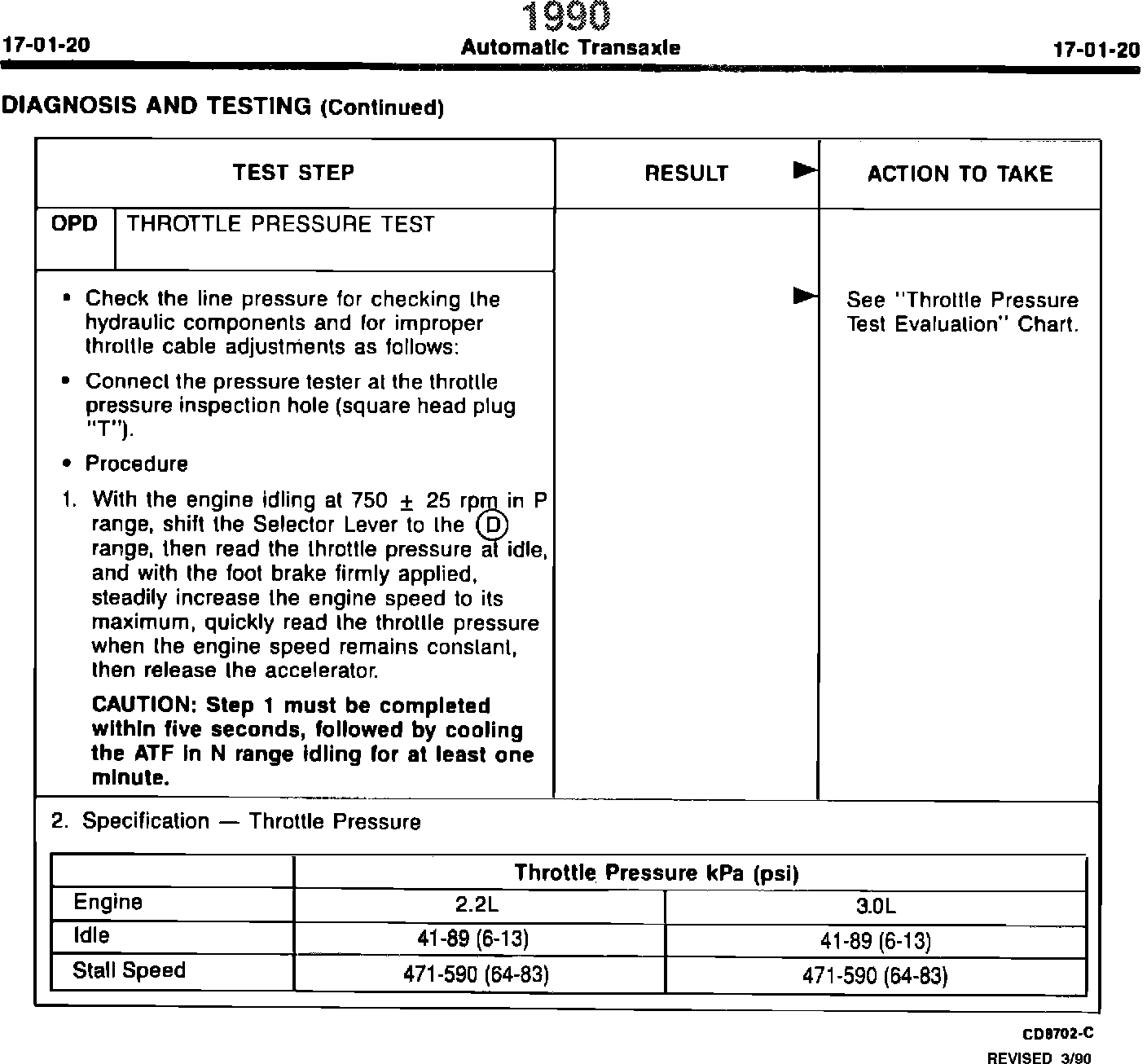

ACTION: Refer to the pages following this TSB article for the updated specification charts.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 5800
