Programmed Ride Control Test Step C2 - Manual Revision

Article No.
91-11B-20

06/14/91

SHOP MANUAL - 1990 - PAGE 14-39-21 - PROGRAMMED RIDE CONTROL TEST STEP C2 REVISED

FORD:
1990 PROBE

ISSUE:
Programmed Ride Control Pinpoint Test Step C2 on Page 14-39-21 of the 1990 Probe Shop Manual requires rewording to clarify the procedural Test Steps which follow.





ACTION:

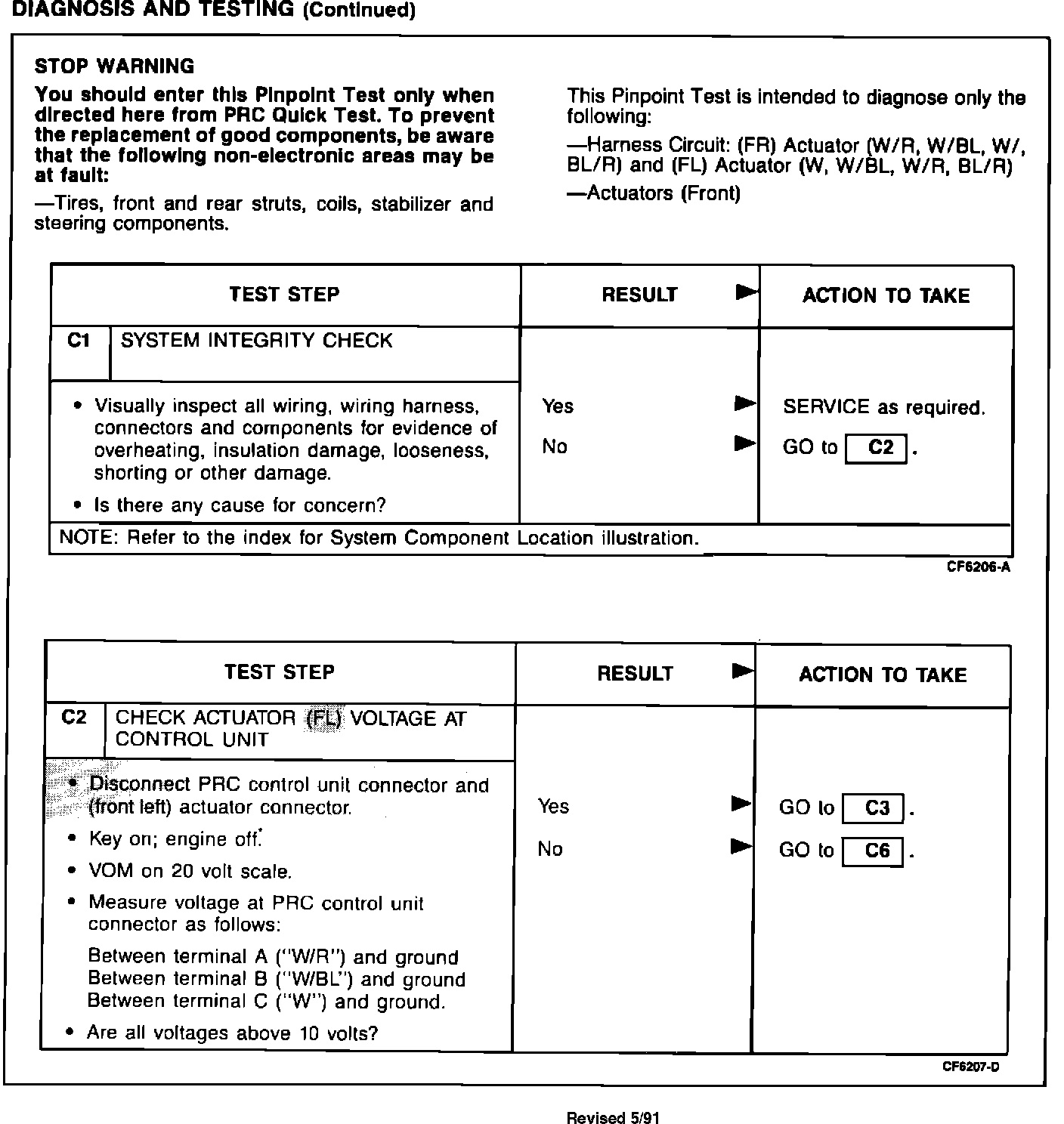

Refer to the page in this TSB article for the revised wording in Test Step C2.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
