Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G400, G401 & G402

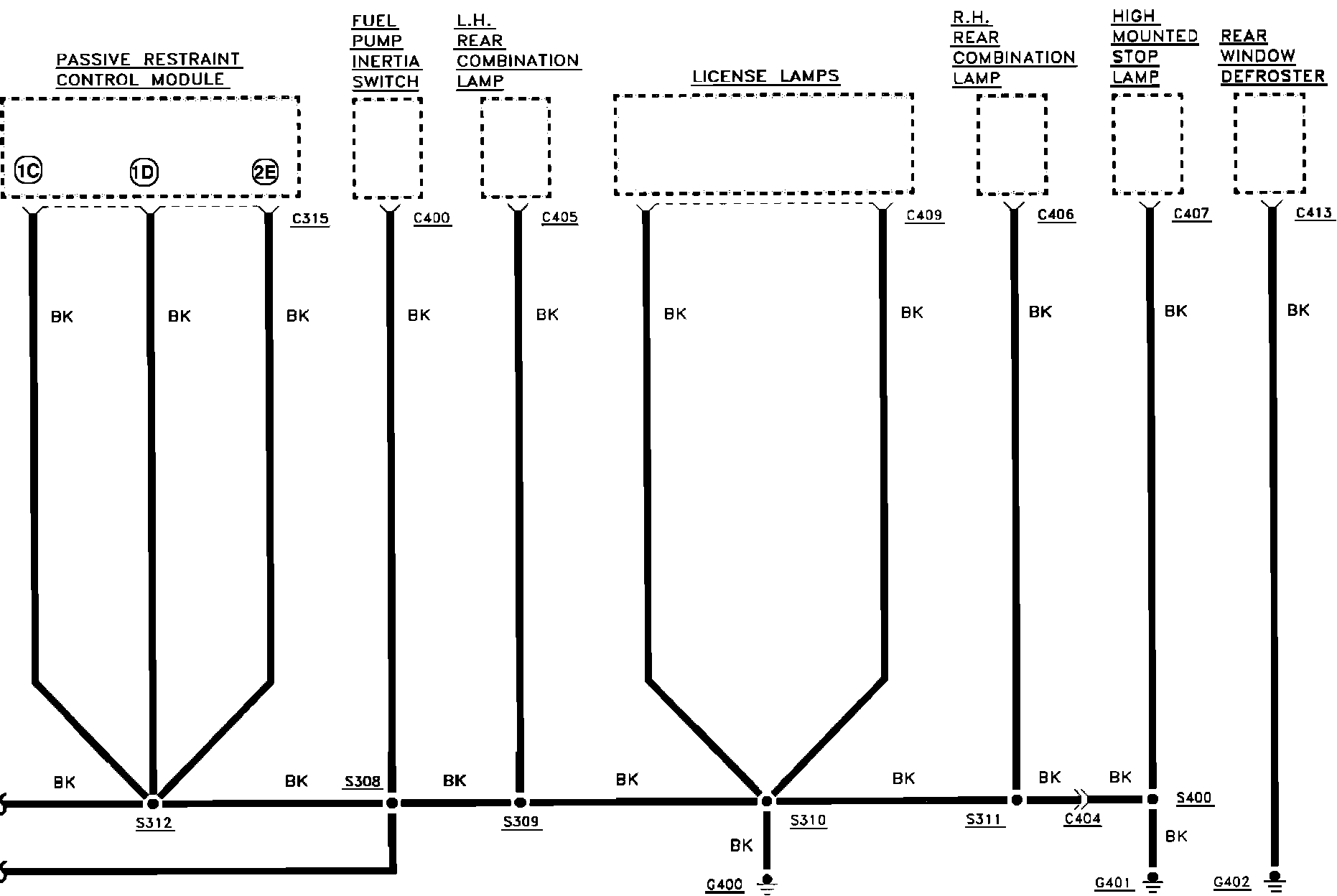

G400, G401 & G402

G400, G401 & G402:
