Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G202 >> GT Models

GT Models

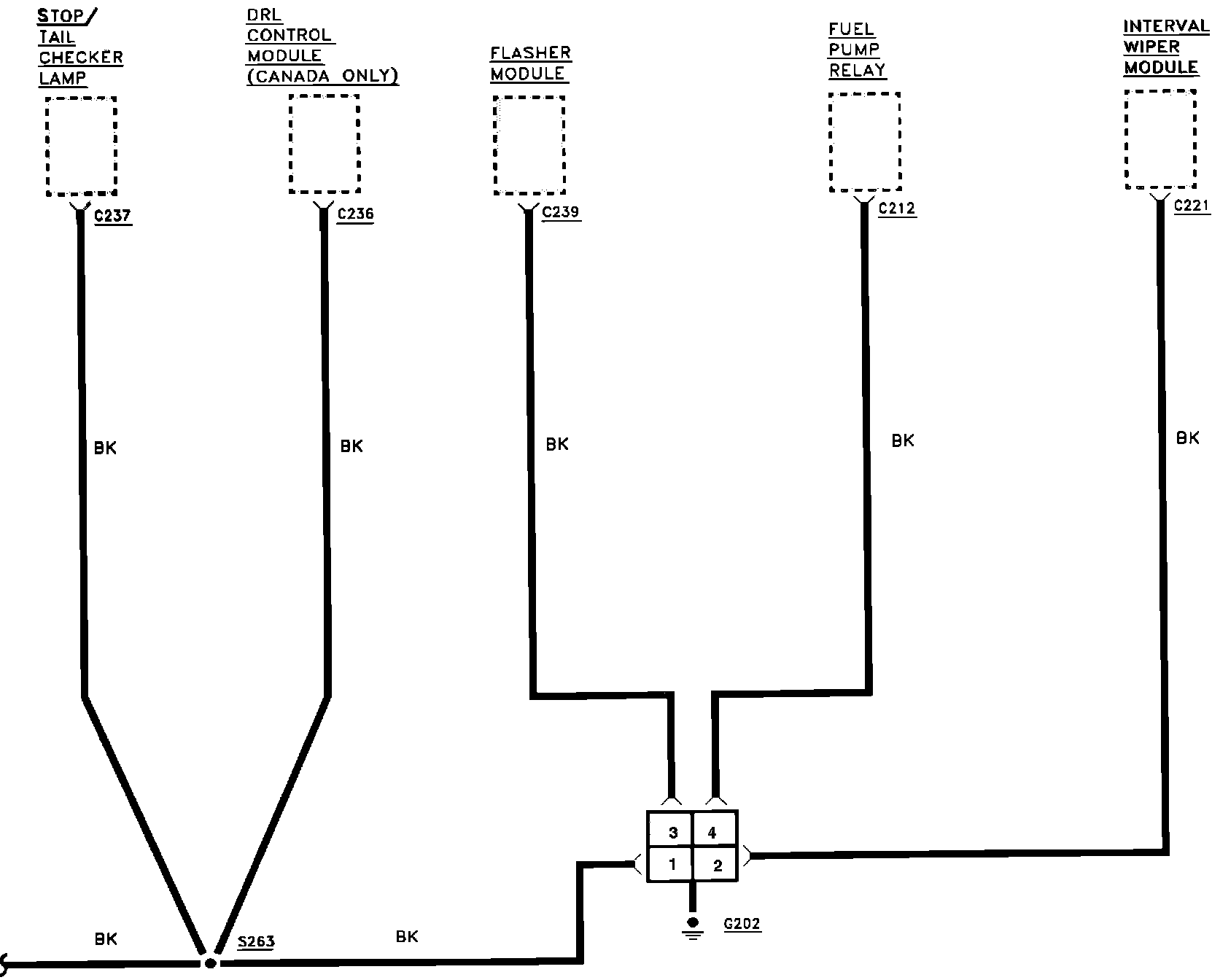

G202 - GT Models:
