Attachment III-A - Tech. Instruct- 1989-92 Non-Turbo Probe

Fuel Pump/Sender Jumper Wire Modification Instructions

SERVICE PART NUMBER F4CZ-14406-A KIT CONTENTS

ENGINEERING PART NUMBER DESCRIPTION QUANTITY

Jumper Harness 1

Tie Strap 1

I.S. 8156 Instruction Sheet 1

Affected Vehicles:
1989/90/91/92 Non-Turbo engine equipped Probes.

Technical Instructions

1. Open doors. Connect Rotunda Memory Saver 014-R1064 to retain memory in radio settings, engine learn strategies, etc.

2. Open hood and disconnect battery negative cable.

3. Position both front seats forward.

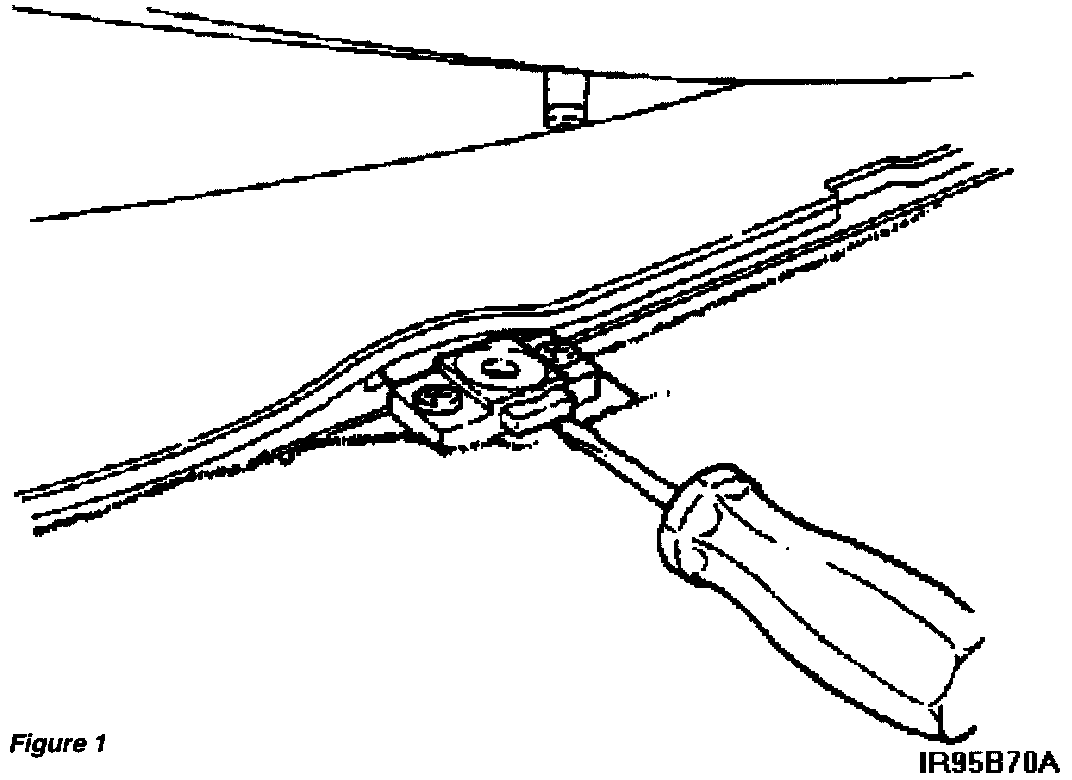

4. Using a screwdriver, disengage rear seat latches and remove rear seat cushion and pad from vehicle. See Figure 1.

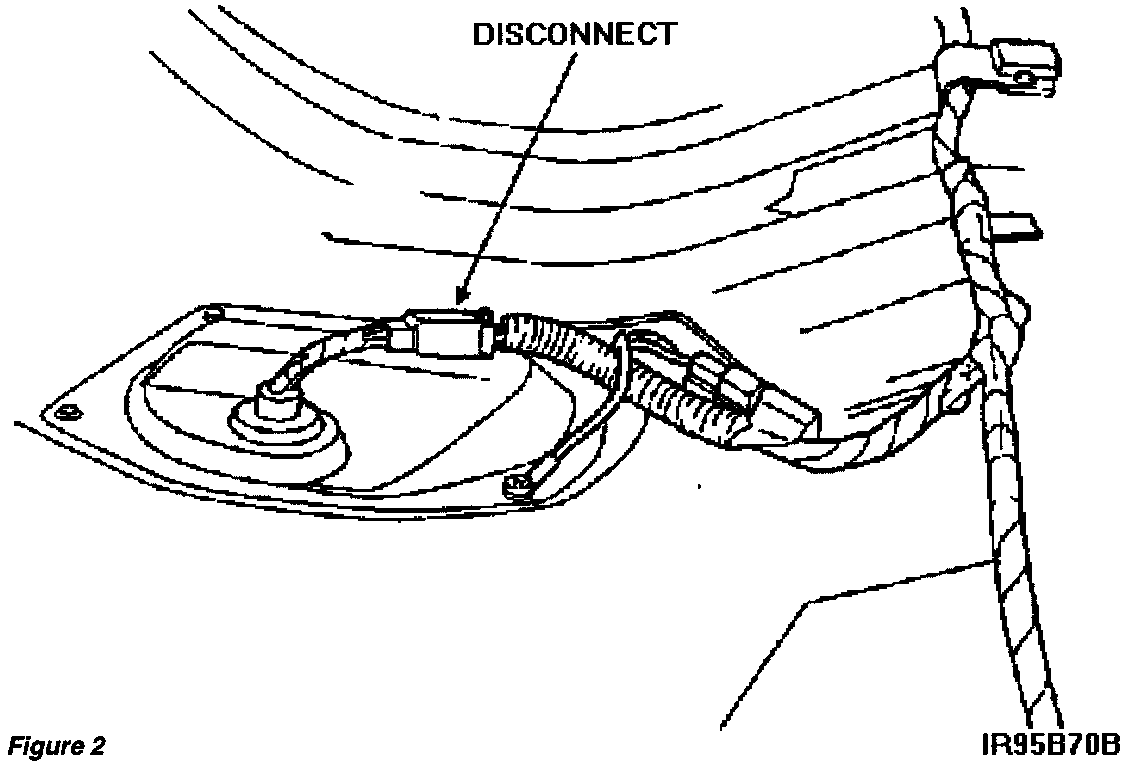

5. Disconnect fuel pump electrical connector. See Figure 2.

6. Connect jumper harness F4CA-14406-A to fuel pump connector and to vehicle wiring harness.

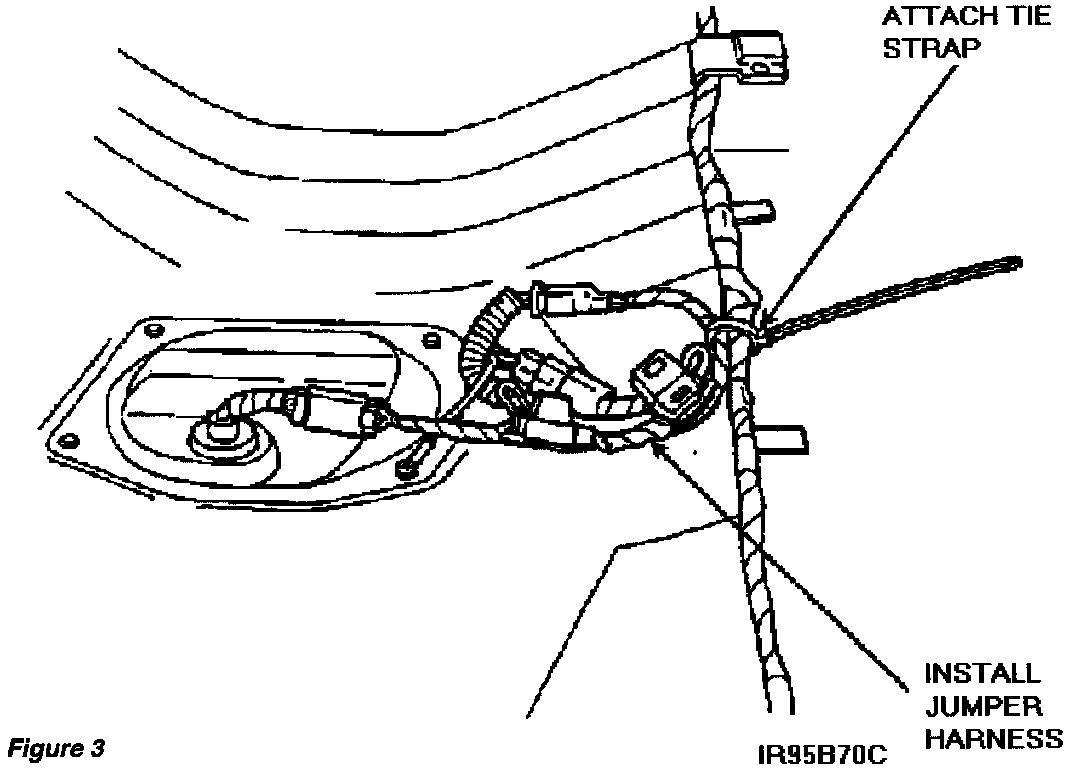

7. Coil and tie-strap the jumper harness to the vehicle wiring harness. See Figure 3.

8. Install pad and rear seat cushion. Ensure latches are properly engaged.

9. Connect battery negative cable and close hood.

10. Disconnect Rotunda Memory Saver.

11. Verify engine operation.
