Attachment V - Technical Instructions(System Diagnosis): Overview

SUPPLEMENTAL DIAGNOSTIC GUIDE

TABLE OF CONTENTS

^ I. Symptom Chart------------------------------------ Pg. 1
^ II. Description And Operation---------------------- Pg. 2-4

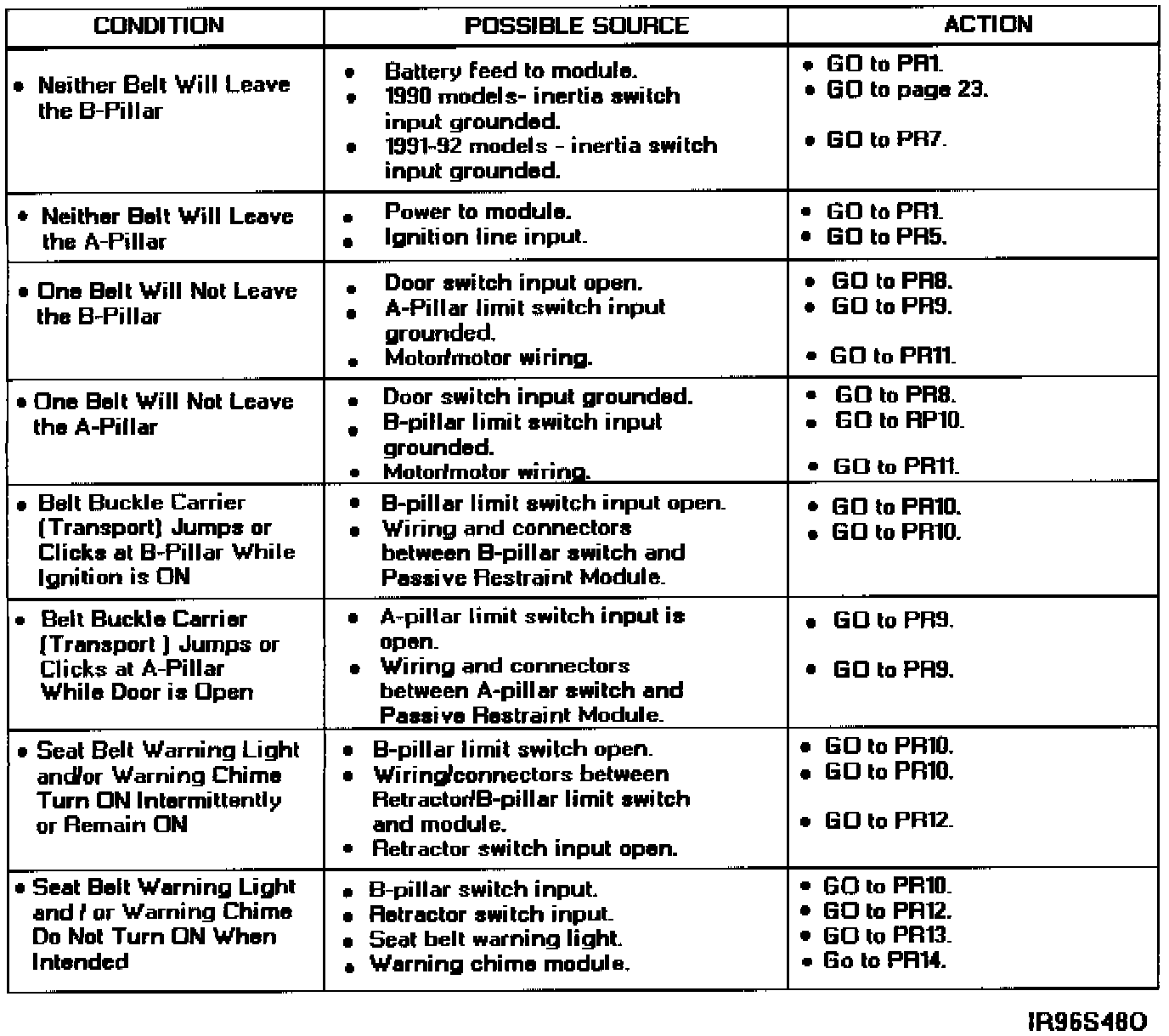

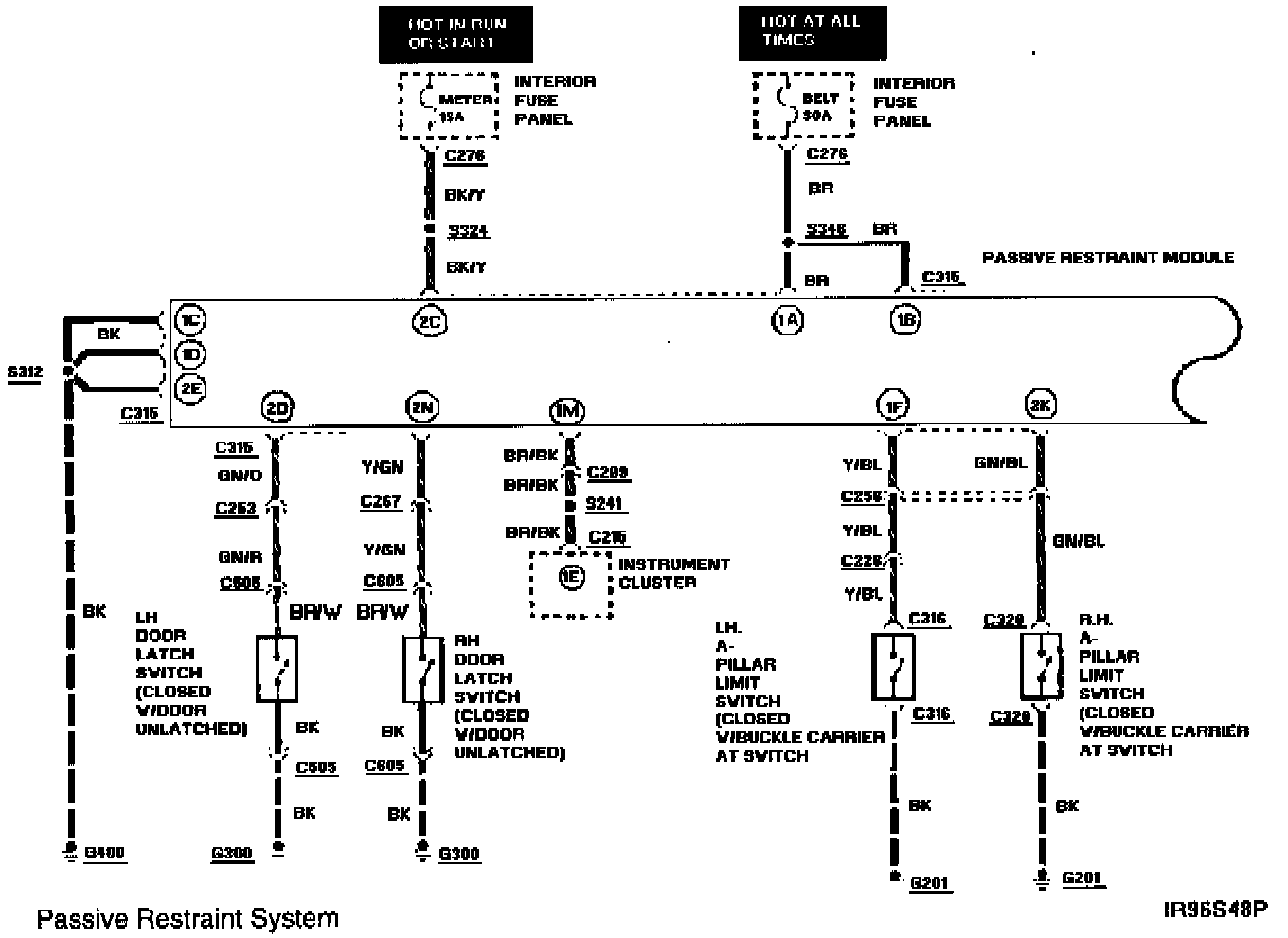

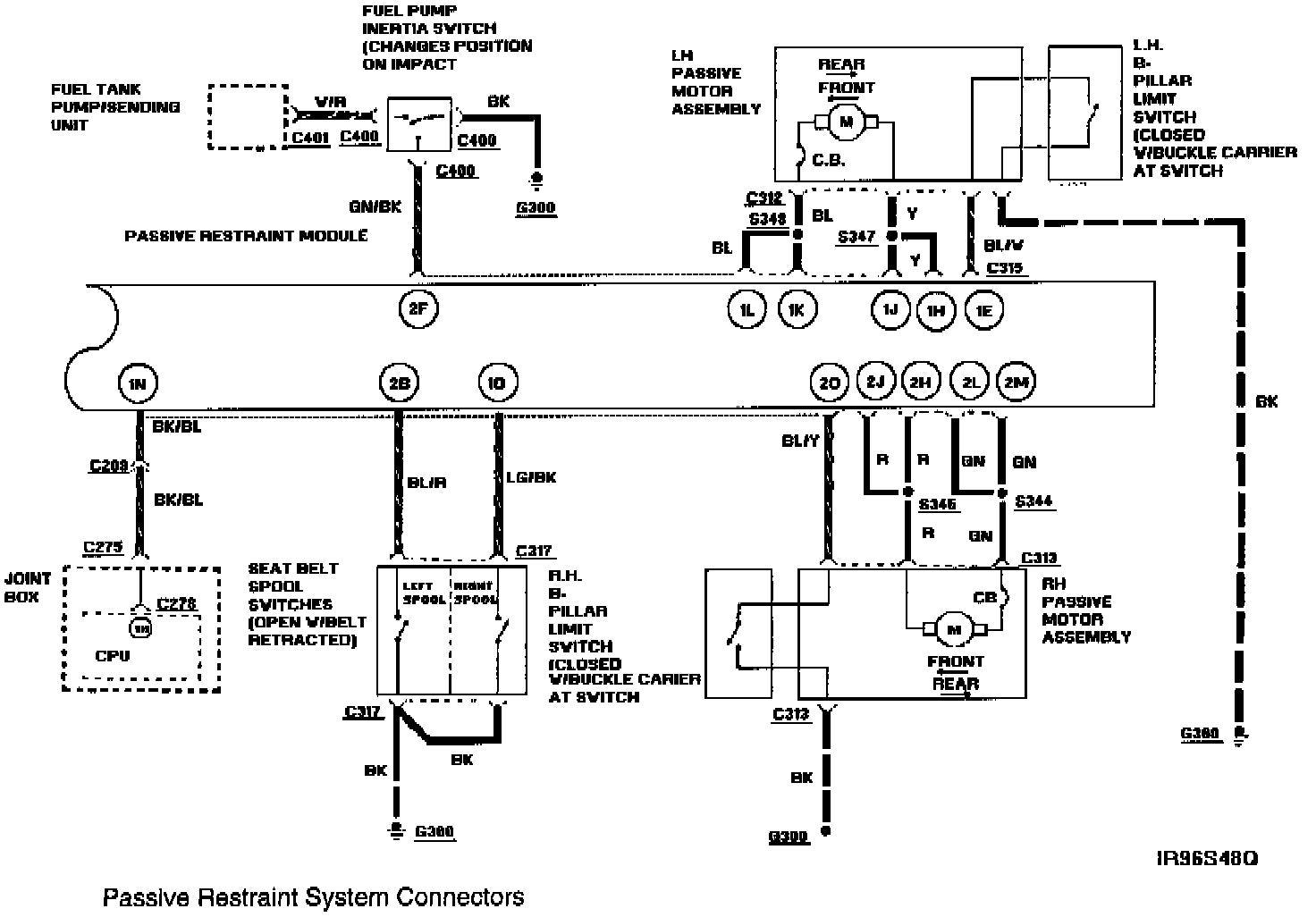

^ III. Electrical Schematic----------------------------- Pg. 5-7

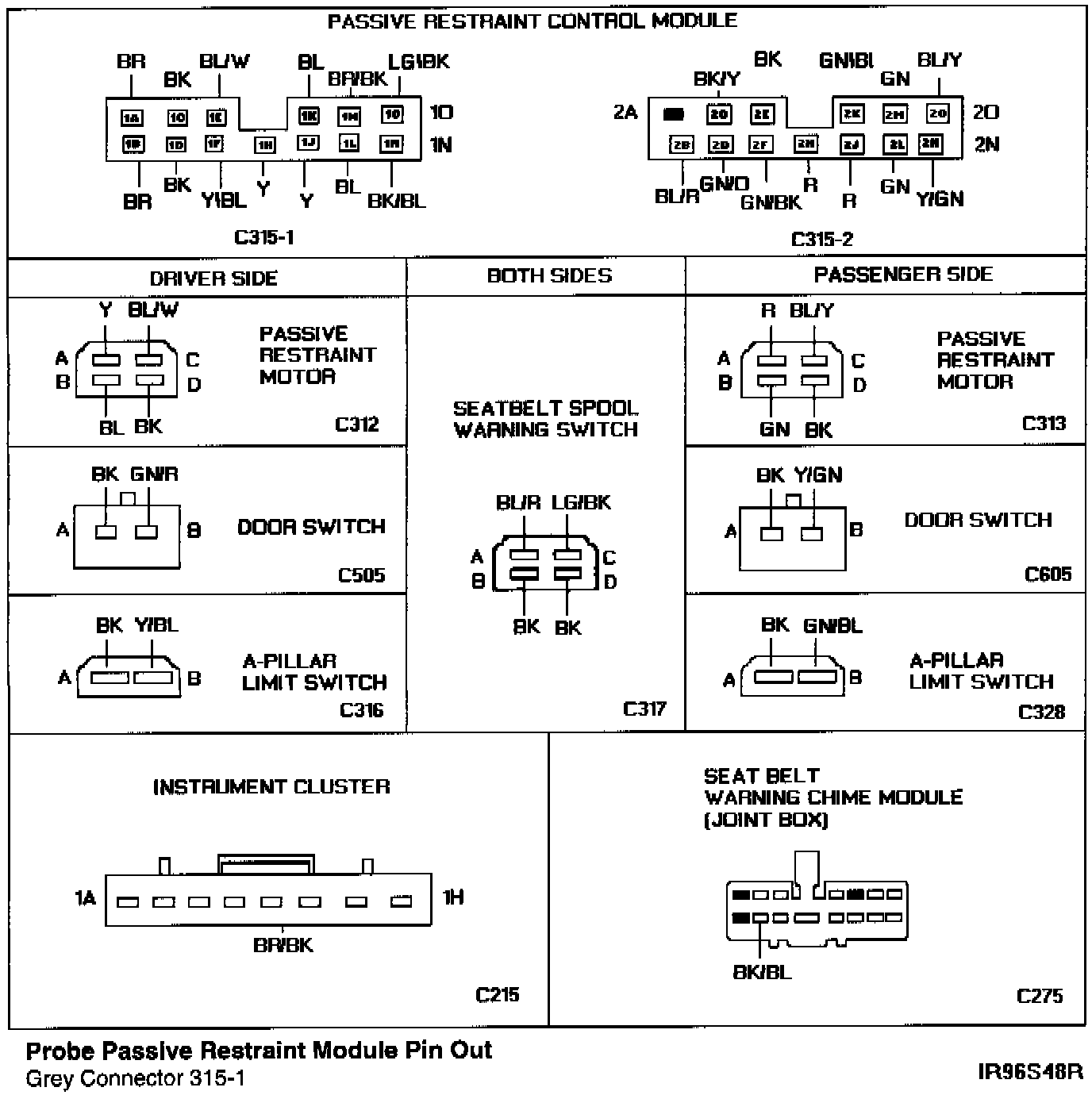

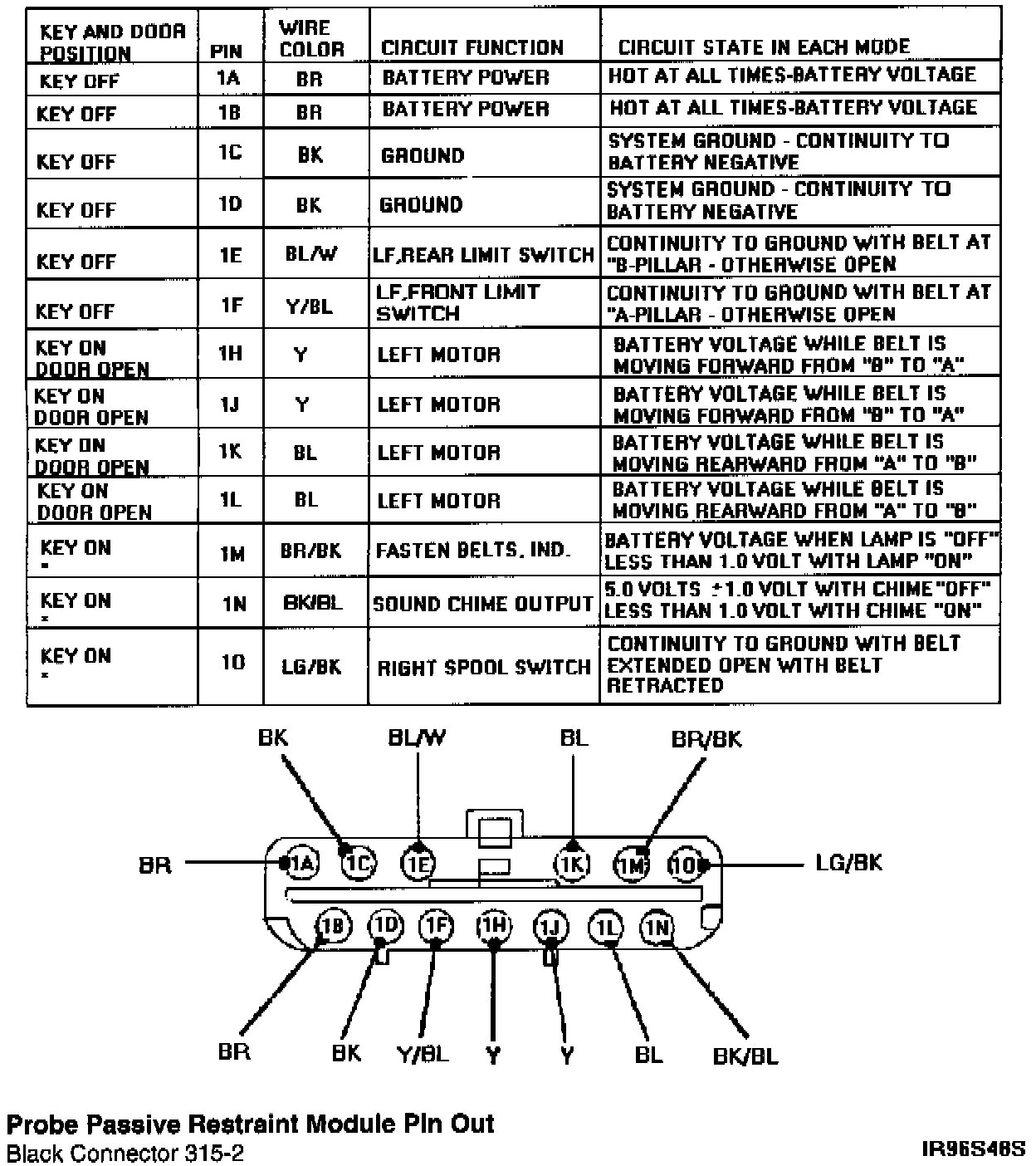

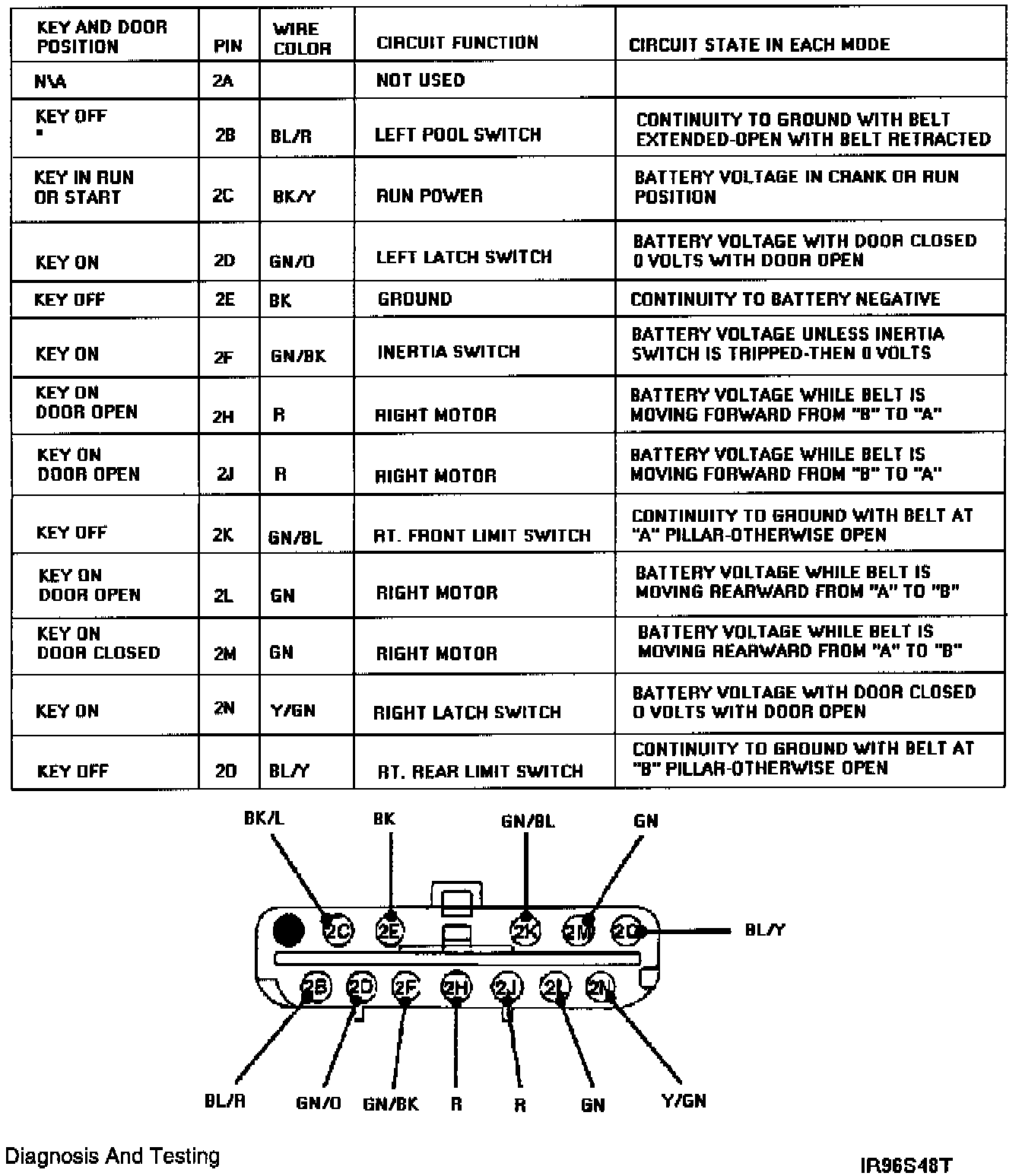

^ IV. Passive Restraint Module Pin Out--------------- Pg. 8-9

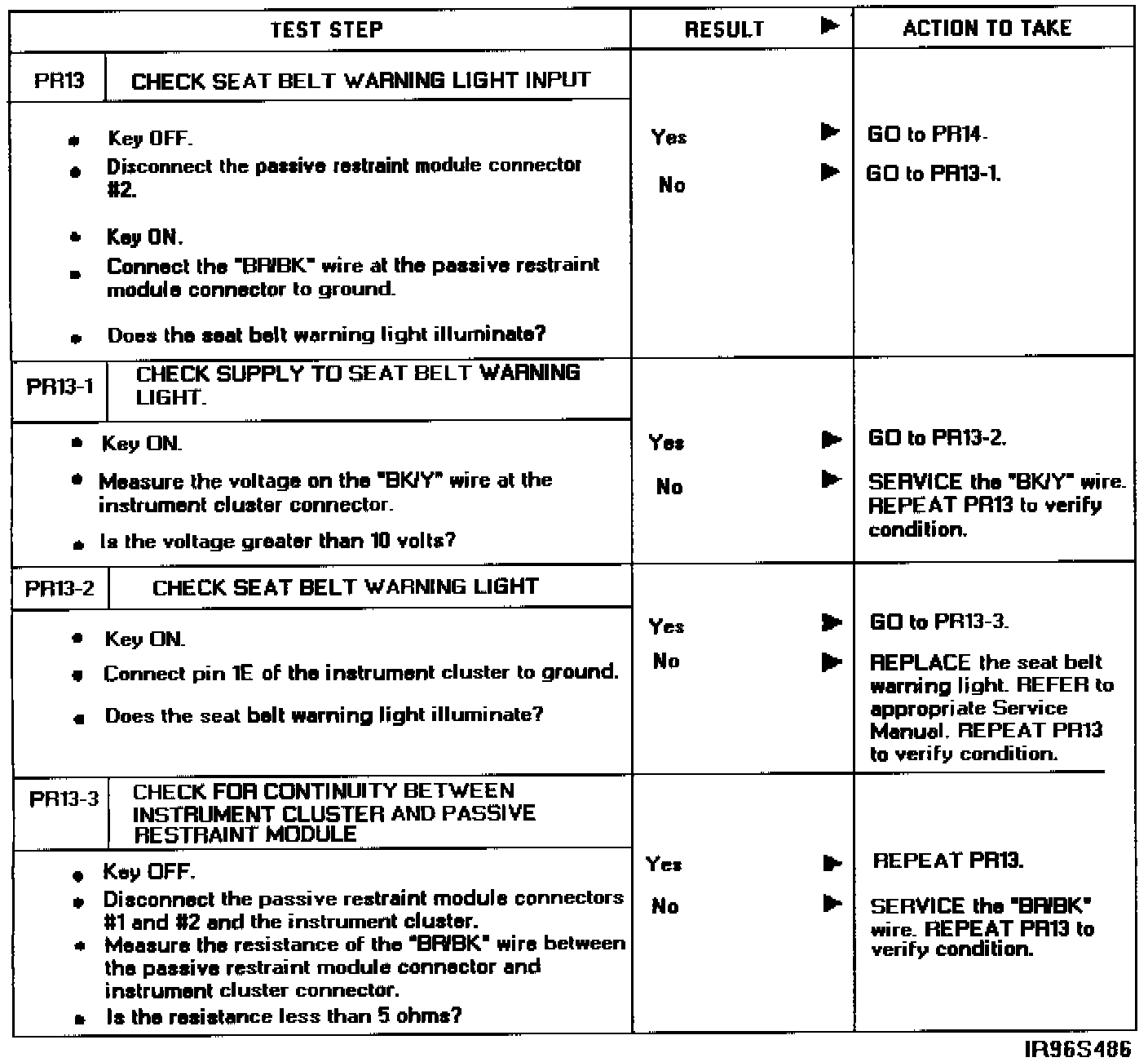

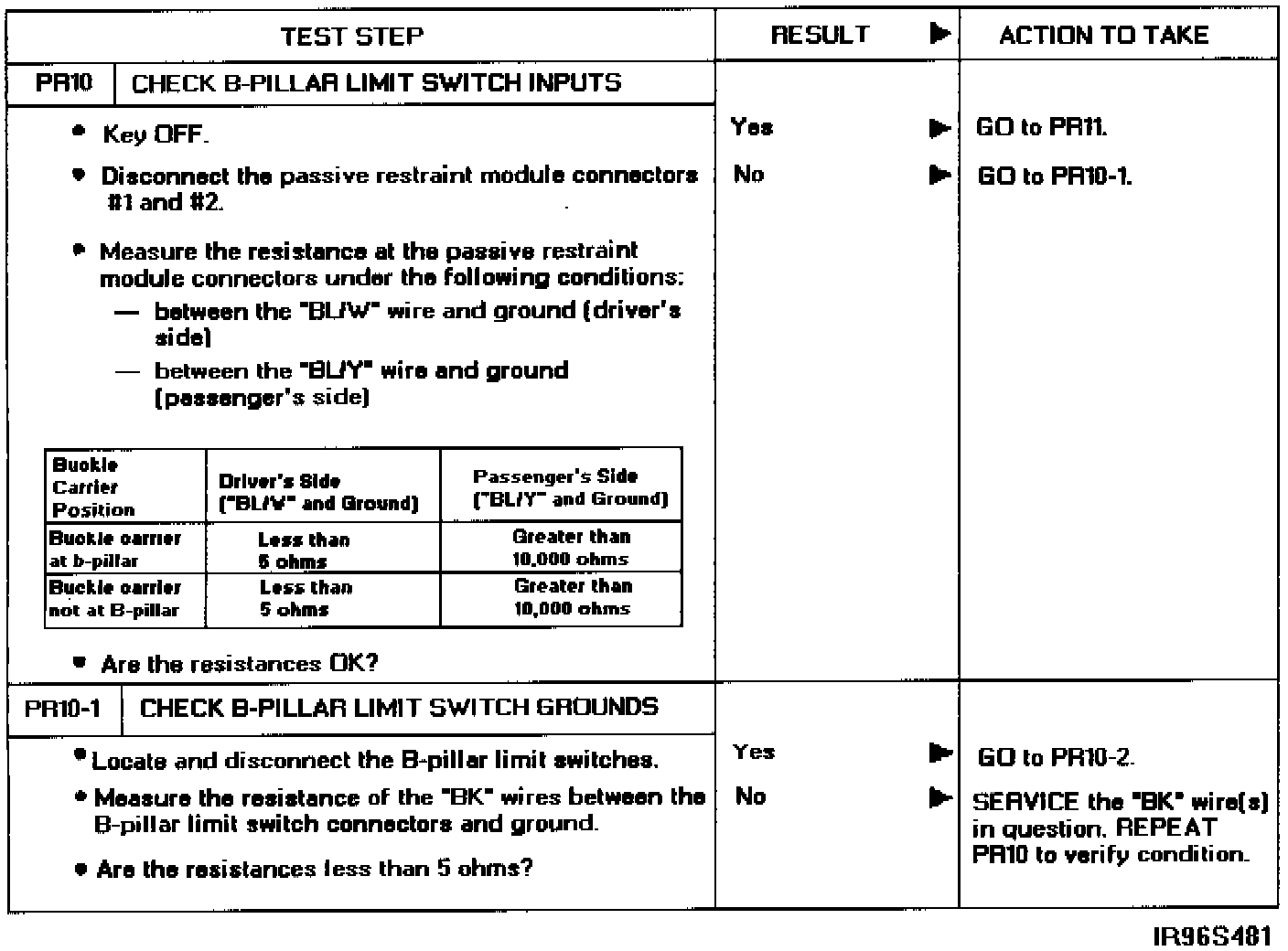

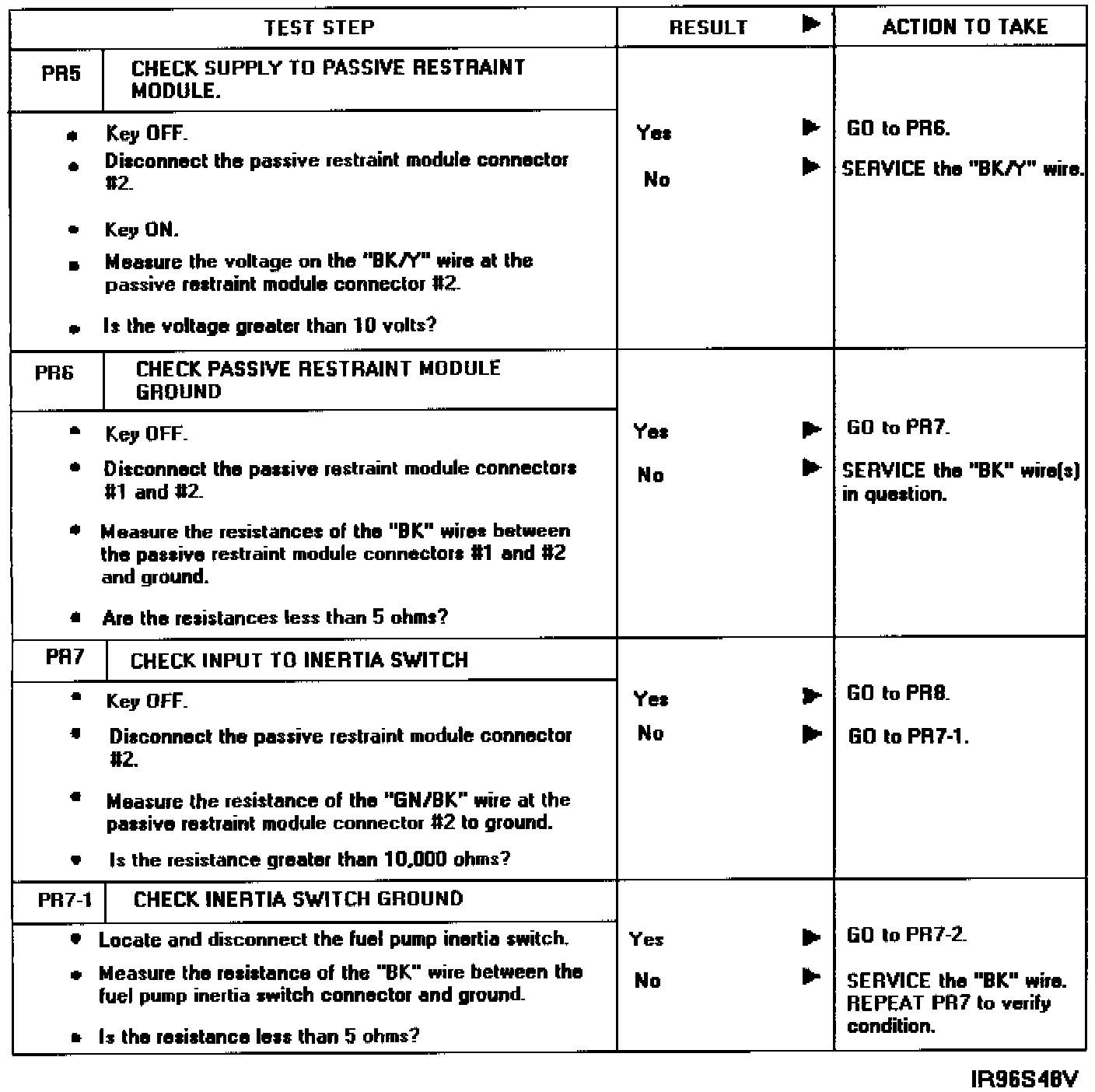

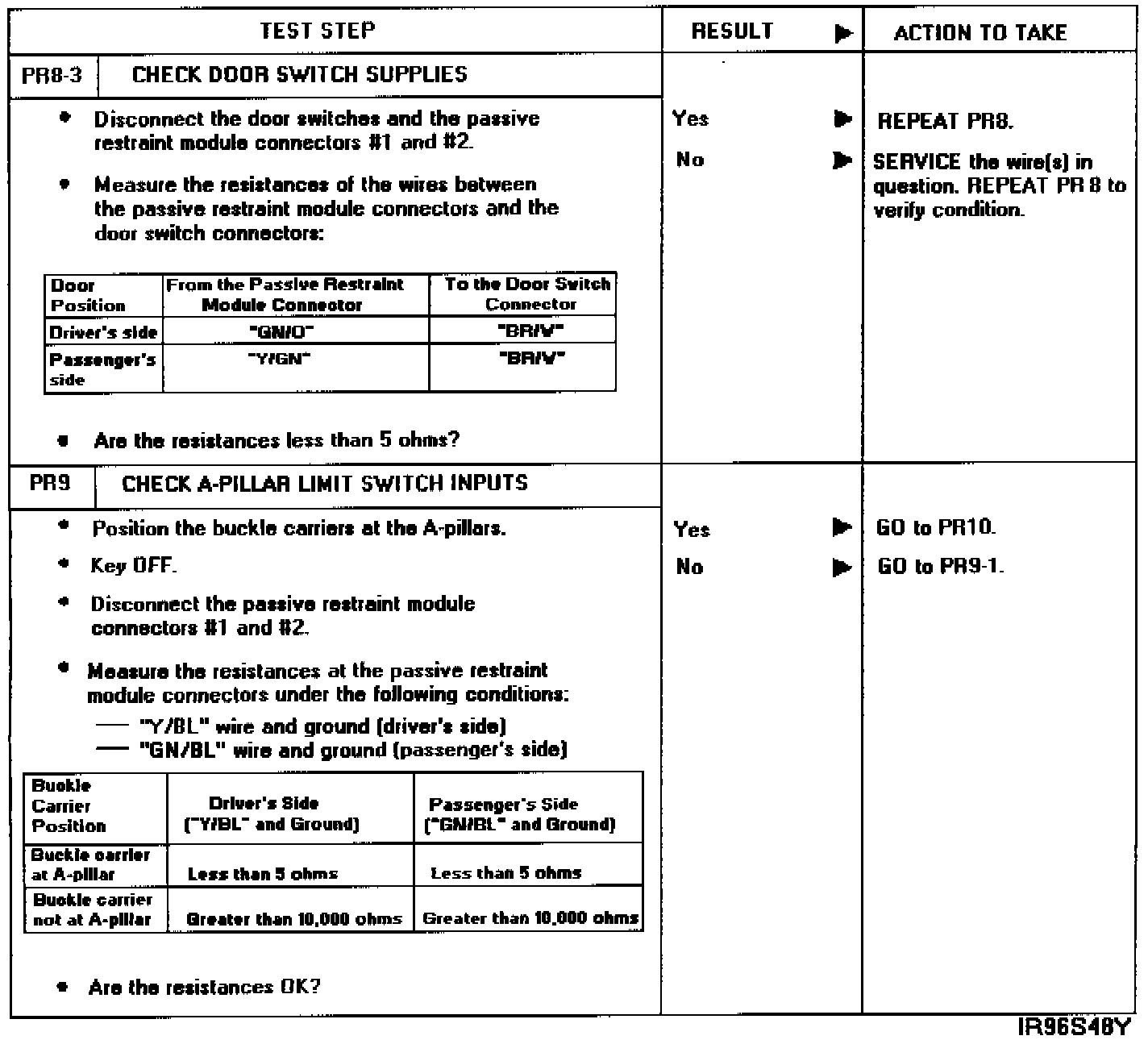

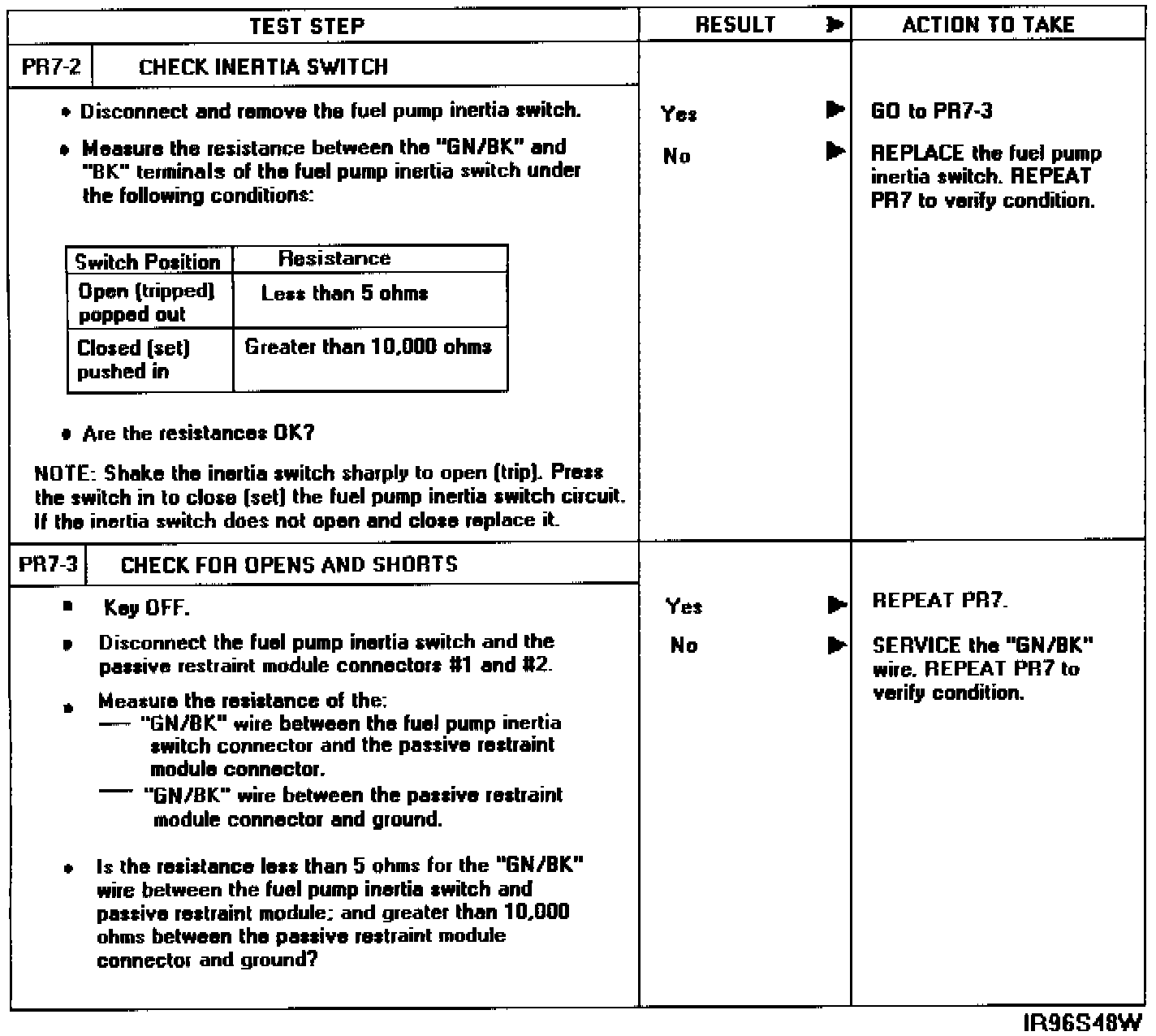

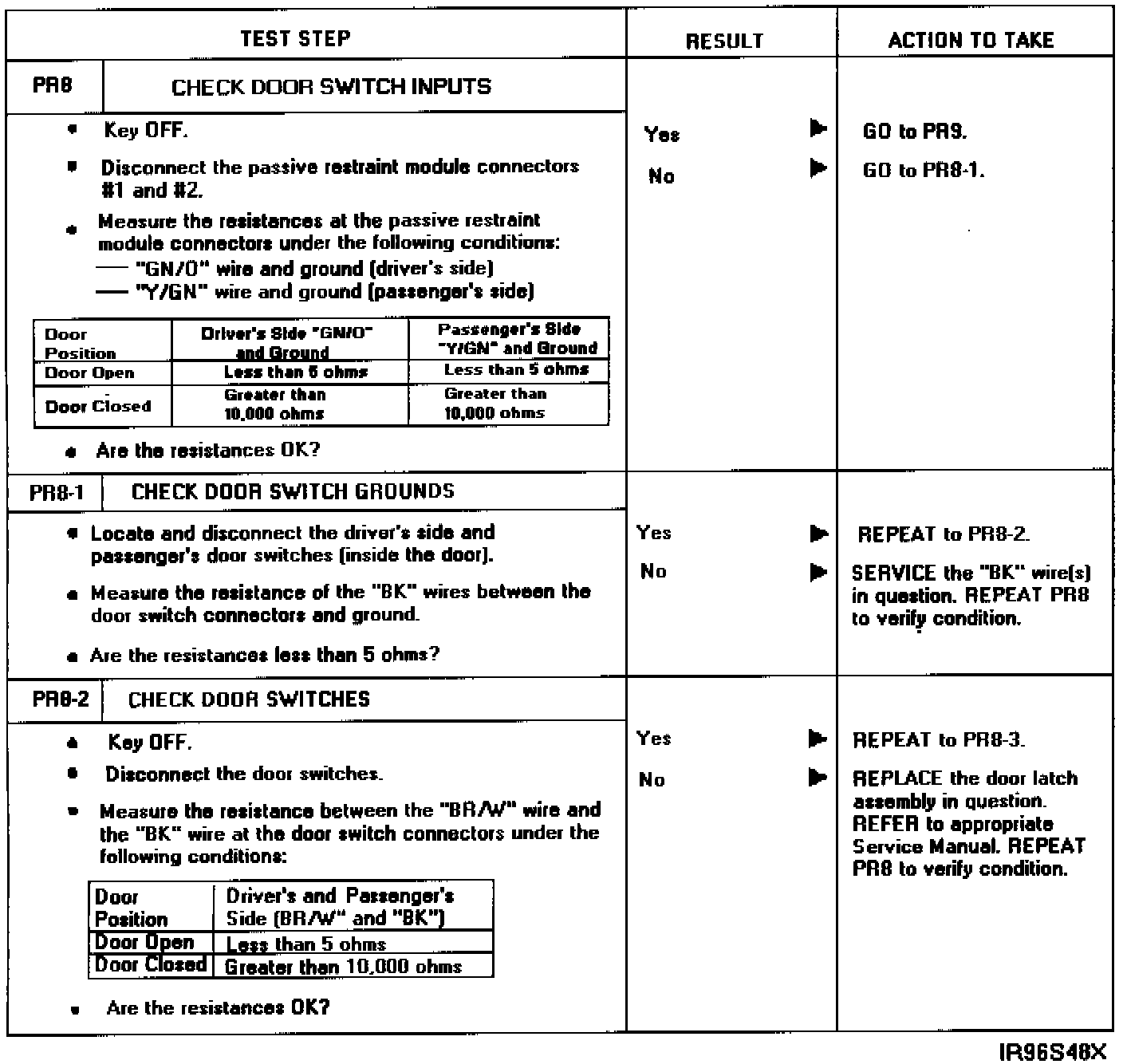

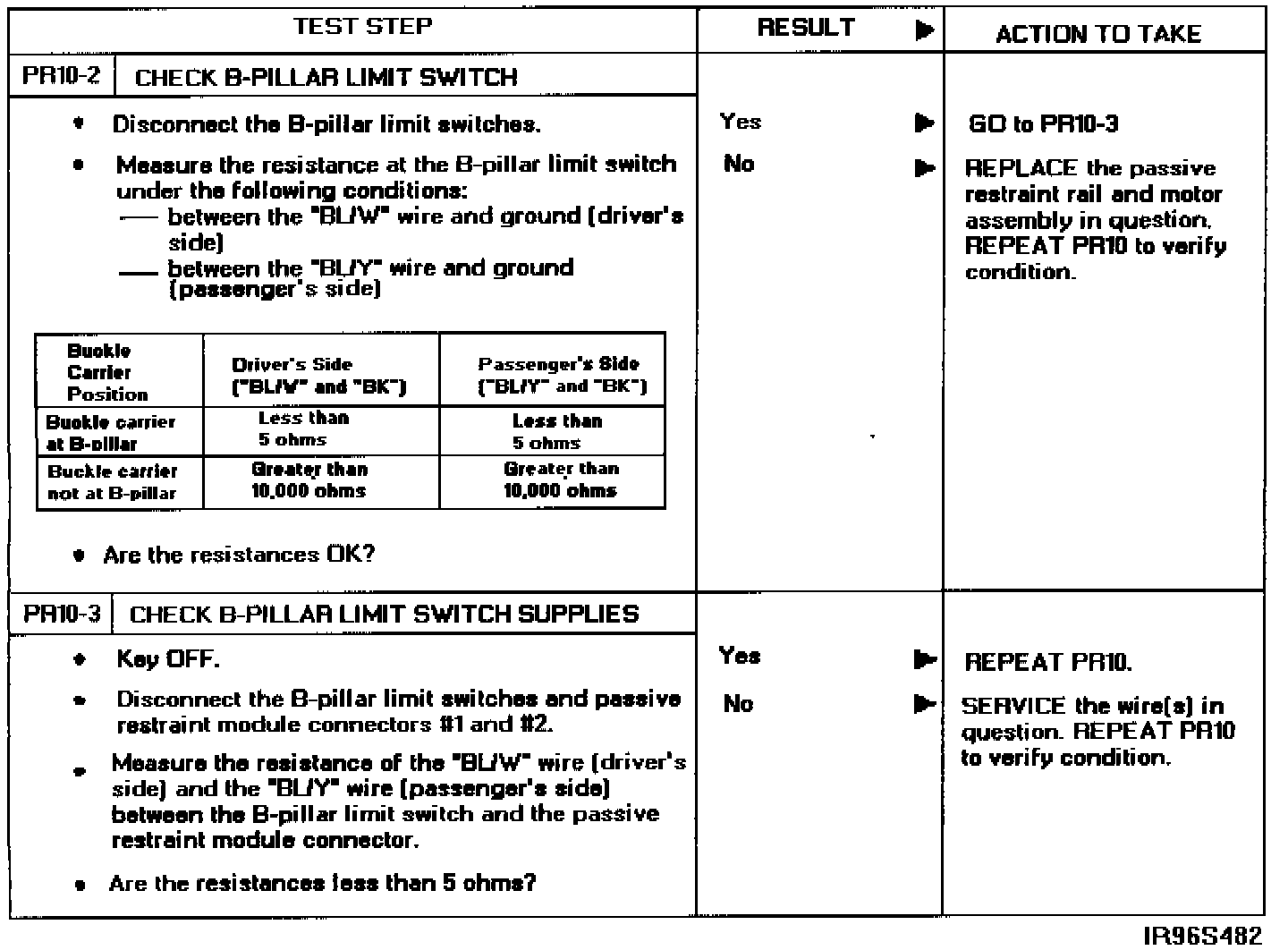

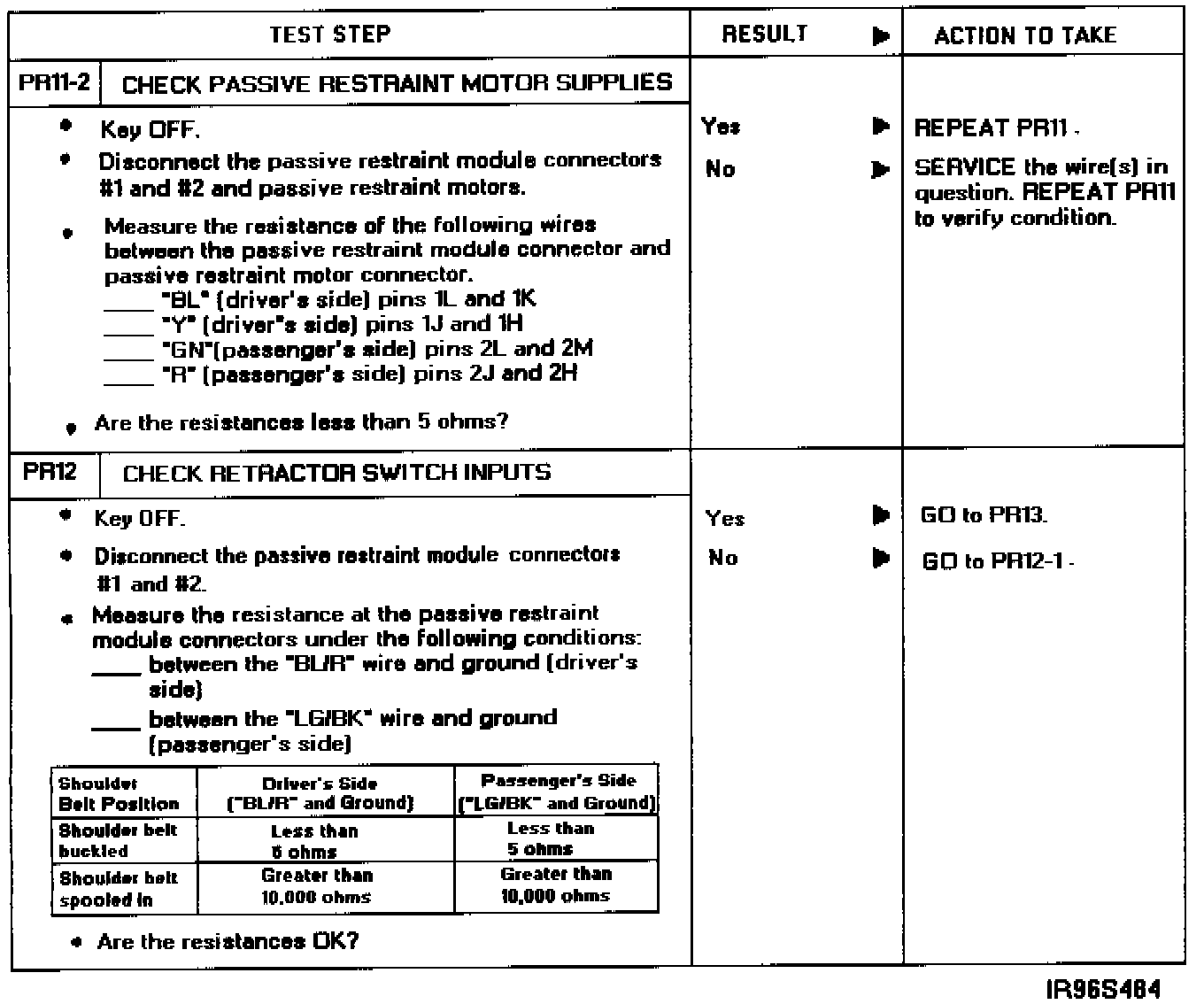

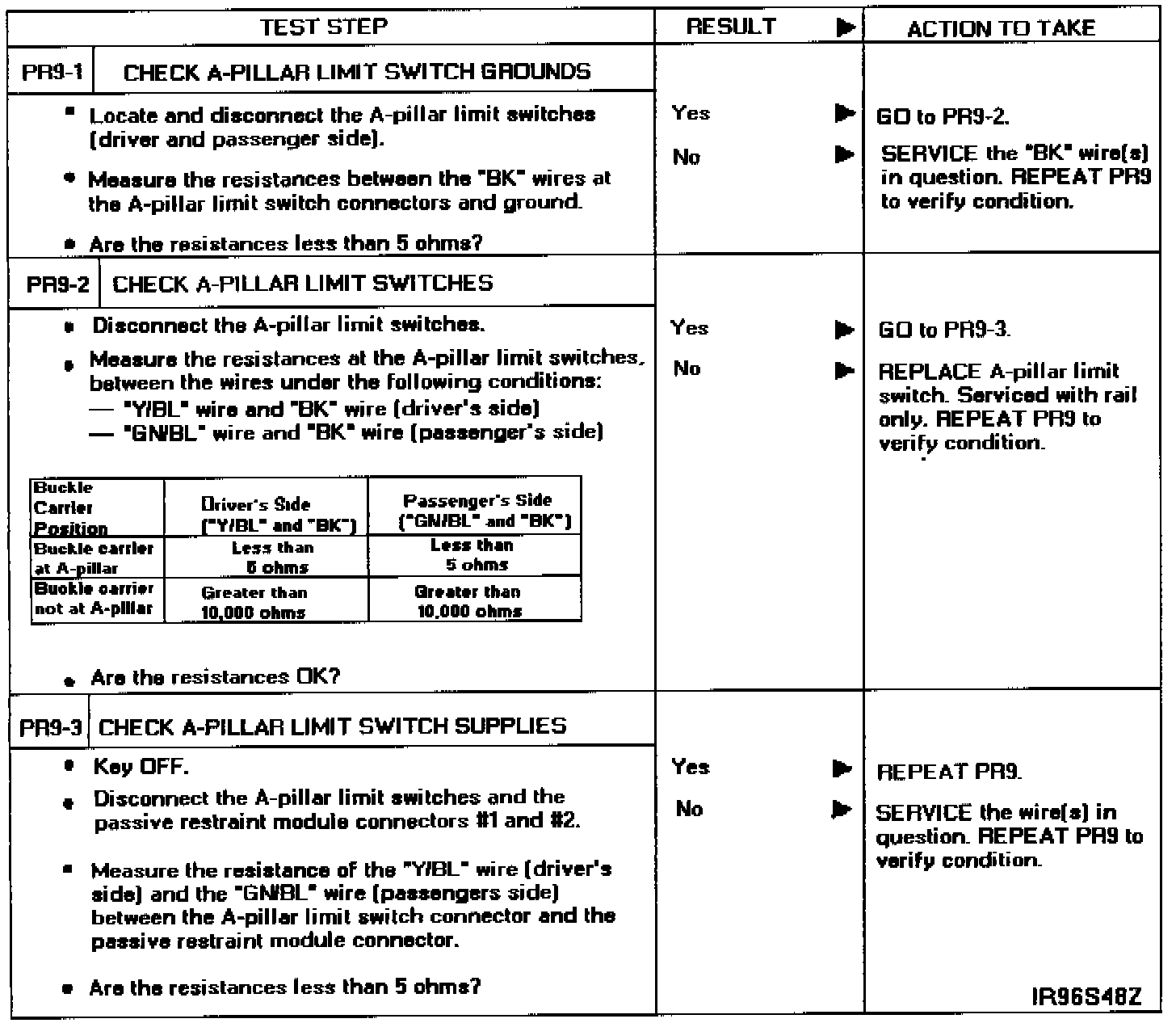

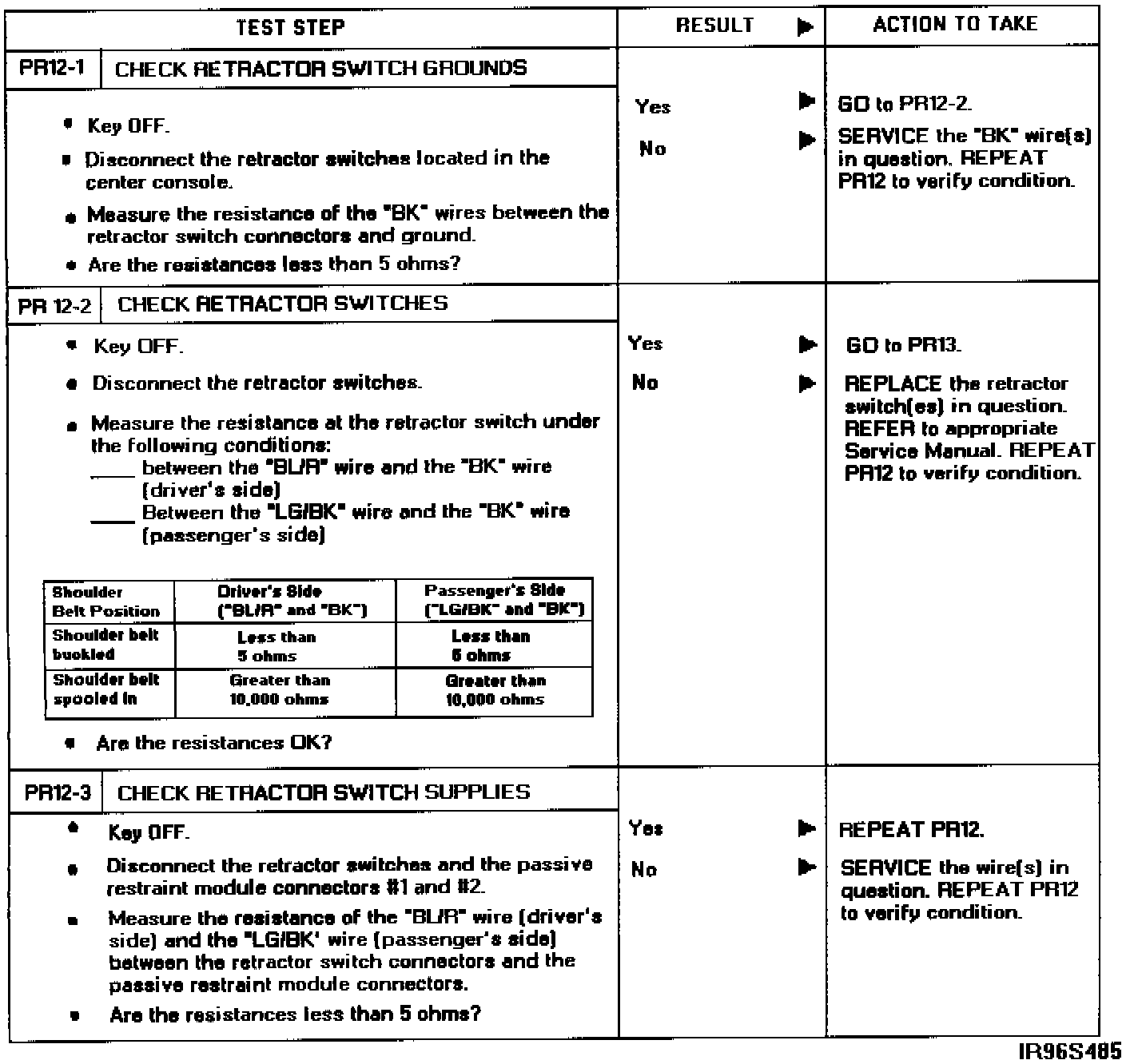

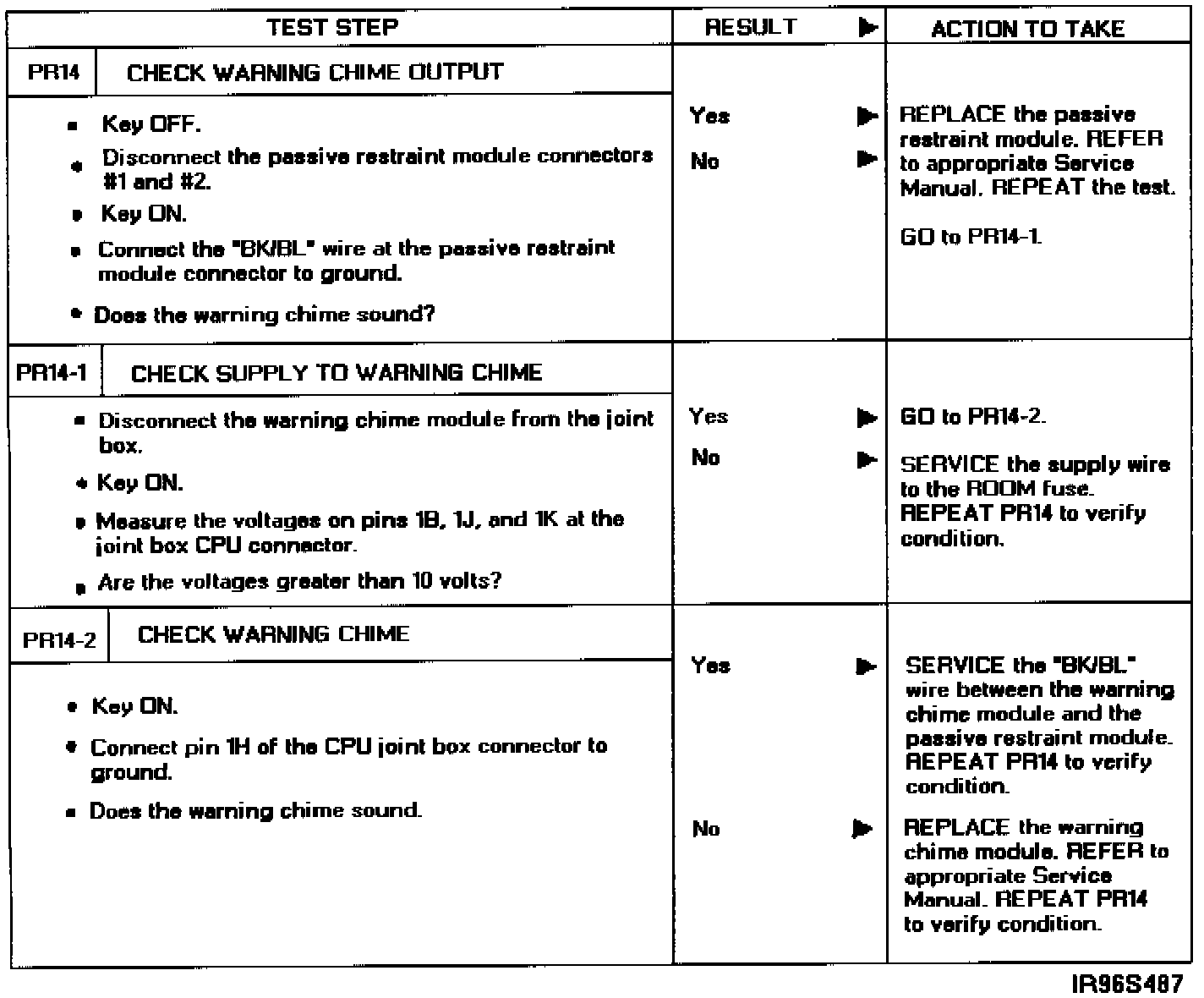

^ V. Diagnostic And Testing (PR Tests)------------- Pg. 10-22
^ VI. Fuel Pump Inertia Switch Technical------------ Pg. 23-27
Service Bulletin (90-26-02)
