Removal

1. Detach the shoulder belt from the buckle carrier.

2. Install a memory saver, then disconnect the battery negative cable.

3. Remove the A to B-pillar trim panel. Refer to appropriate Service Manual.

4. Remove the quarter trim panel. Refer to appropriate Service Manual.





5. Disconnect the front limit switch electrical connector. See Figure 1.

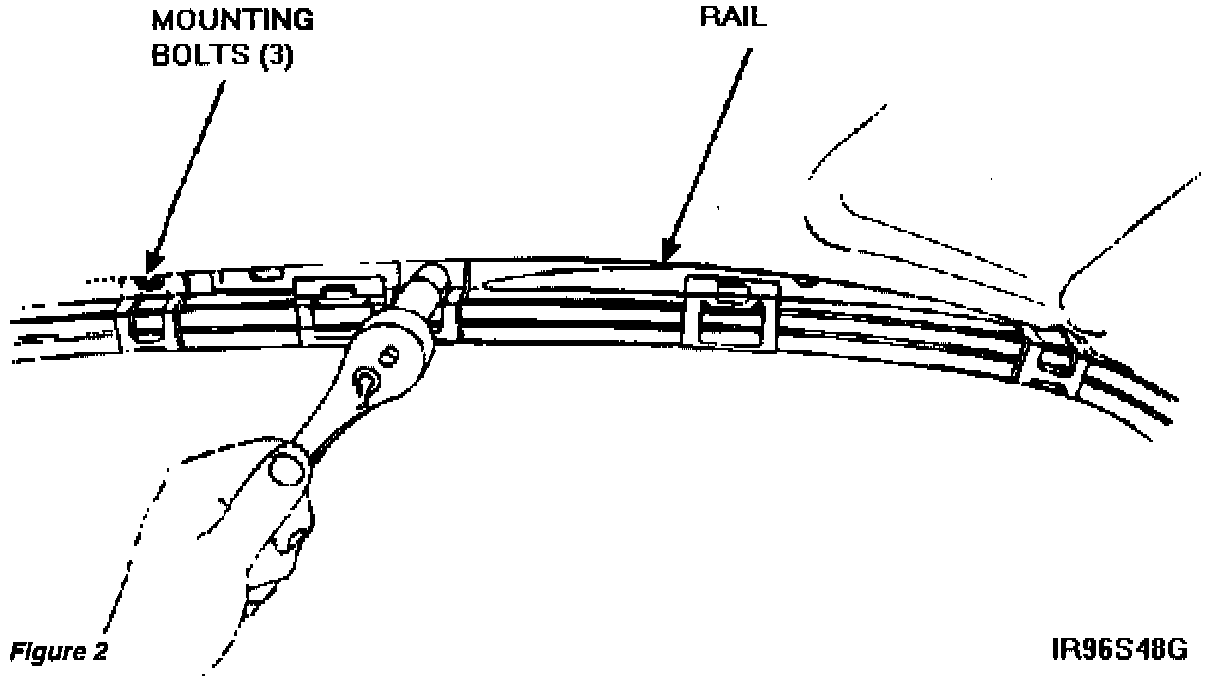

6. Remove the three (3) rail upper mounting bolts. See Figure 2.





7. Remove the rail upper mounting screw. See Figure 3.





8. Remove the two (2) rail side mounting bolts. Refer to Figure 4.

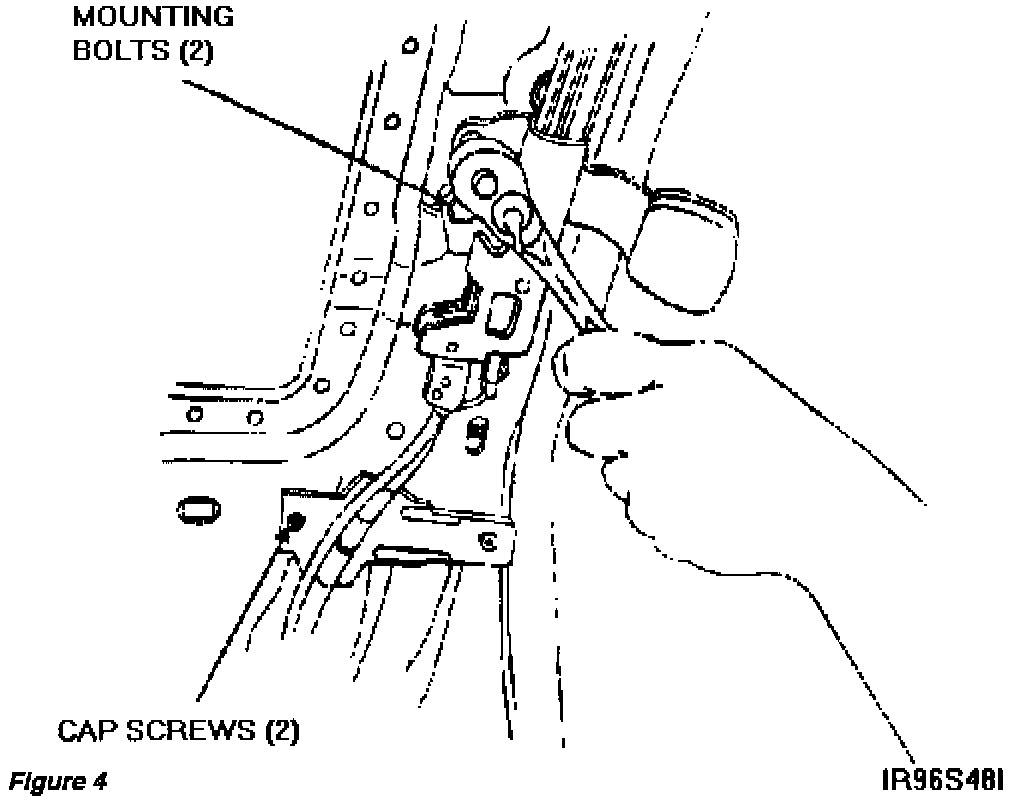

9. Remove the two (2) cable retaining capscrews. See Figure 4.

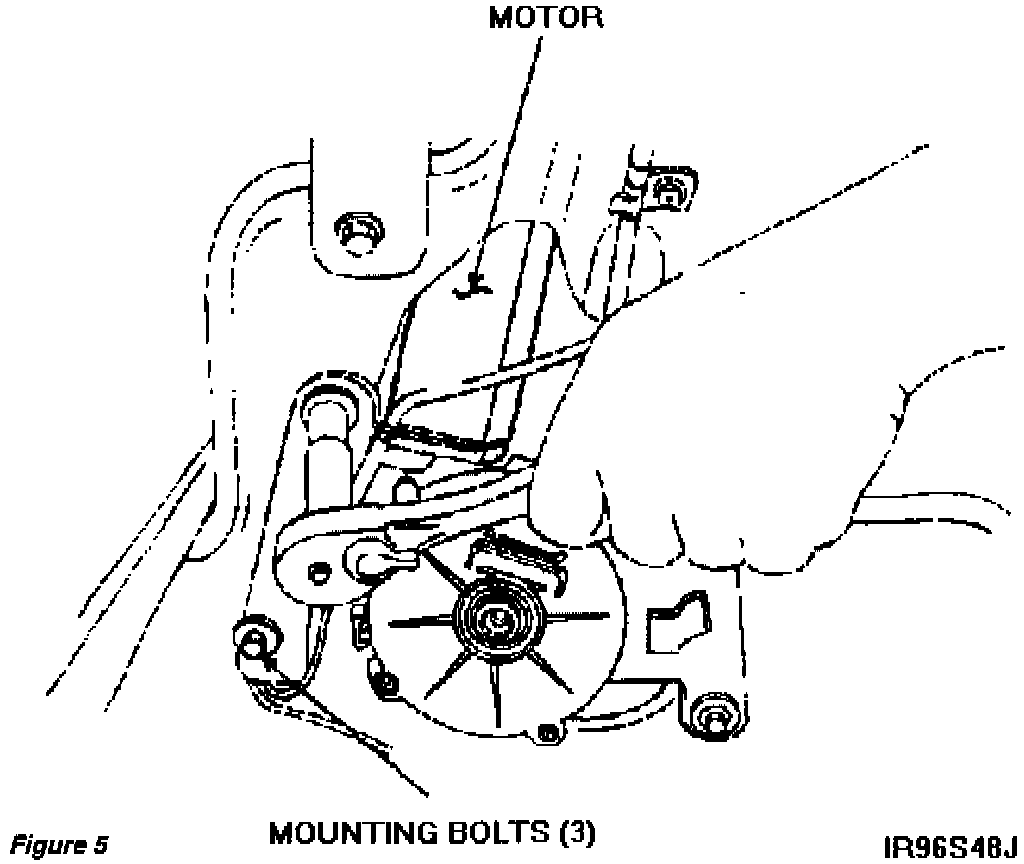

10. Remove the three (3) motor mounting bolts. See Figure 5.

11. Disconnect the motor electrical connector.

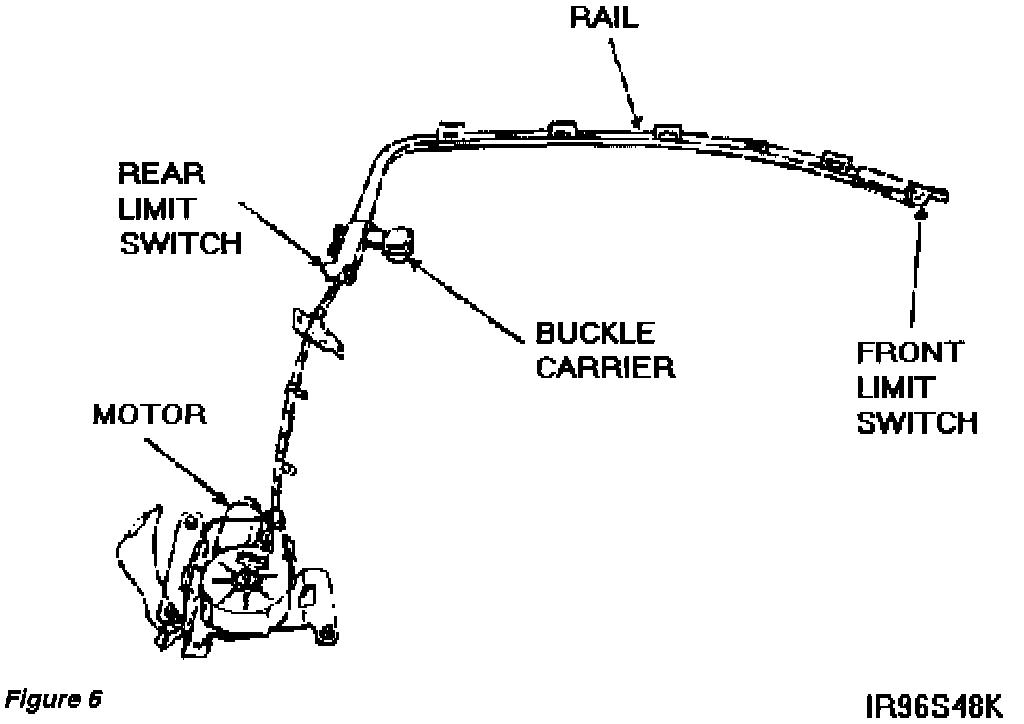

12. Remove the rail and motor assembly from the vehicle. See Figure 6.
