Front Shoulder Belt - Locks Too Easily/Too Sensitive

9228ford01

Article No.
92-11-4

May 20, 1992


^ SAFETY BELTS - NEW FRONT SHOULDER BELT RETRACTOR ASSEMBLY TO REDUCE SHOULDER BELT SENSITIVITY - VEHICLES BUILT BEFORE 12/19/91

^ SAFETY BELTS - SHOULDER BELTS TOO SENSITIVE - VEHICLES BUILT BEFORE 12/19/91


FORD: 1990-92 PROBE


ISSUE:
A front shoulder belt that locks too easily while driving on rough road surfaces may concern some customers. A less sensitive shoulder belt retractor assembly is now available for service use.





ACTION:

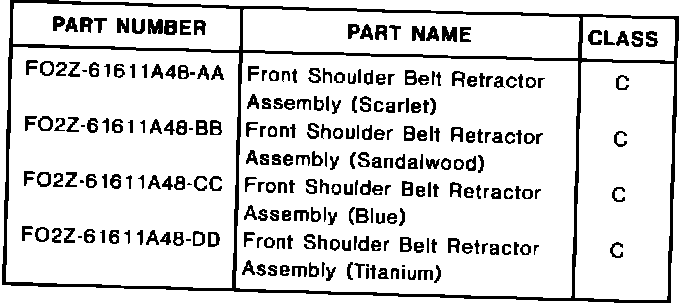

Install a new shoulder belt retractor assembly that is less sensitive. Refer to the Parts Block for correct parts usage. Refer to the 1990 Probe Service Manual, Section 41-54, or the 1991-92 Probe Service Manual, Section 01-20, for removal and installation details.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS:
Eligible Under Basic Warranty Coverage For 1990/91 Models, Bumper To Bumper Warranty Coverage For 1992 Models, Safety Restraint For All Models
OPERATION DESCRIPTION TIME
921104A Replace Retractor 0.5 Hr.
Assembly
DEALER CODING
BASIC PART NO. CONDITION CODE
70611A48 41
OASIS CODES: 104000
