Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests

Pinpoint Tests

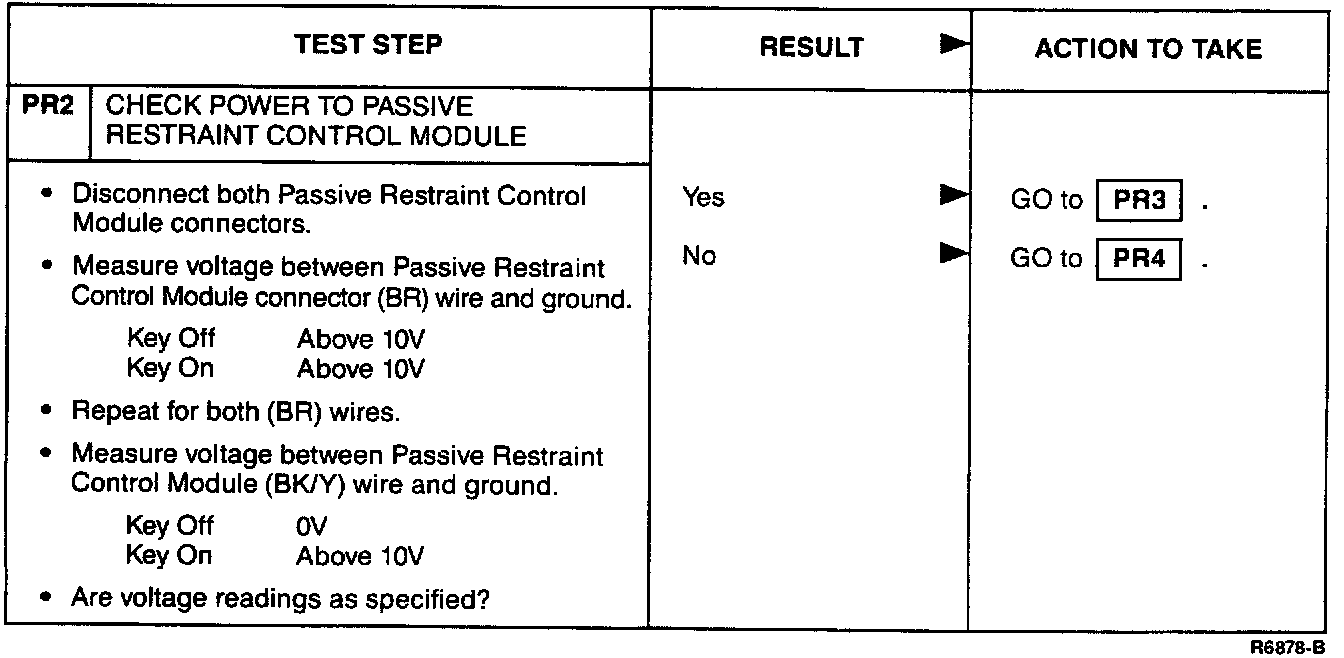

PR2:

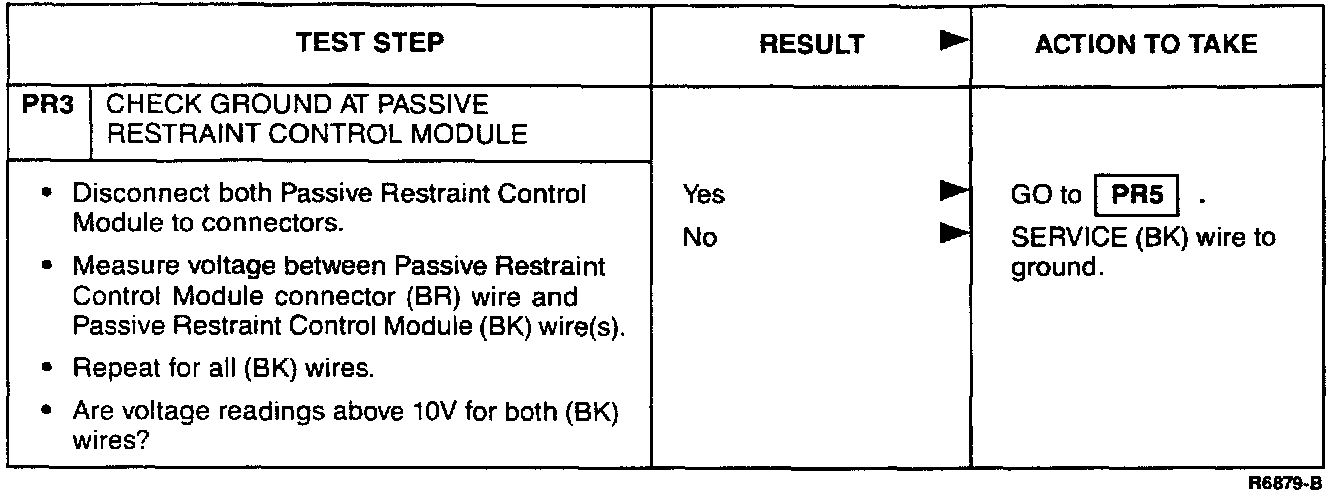

PR3:

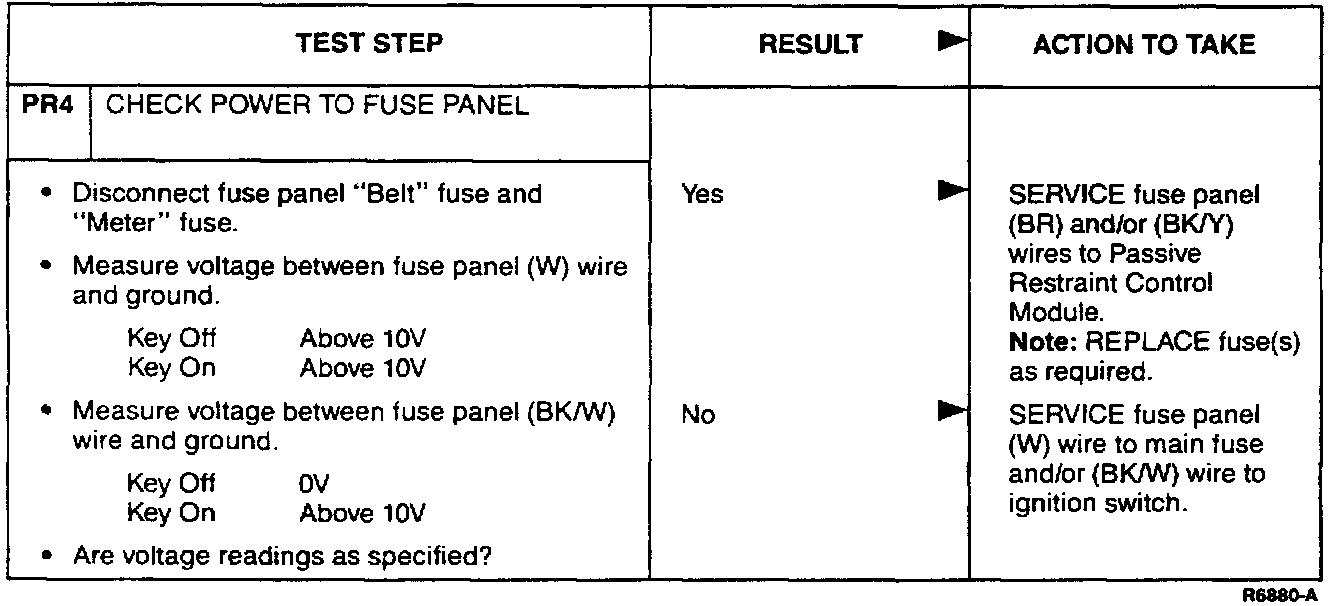

PR4:





PR5:

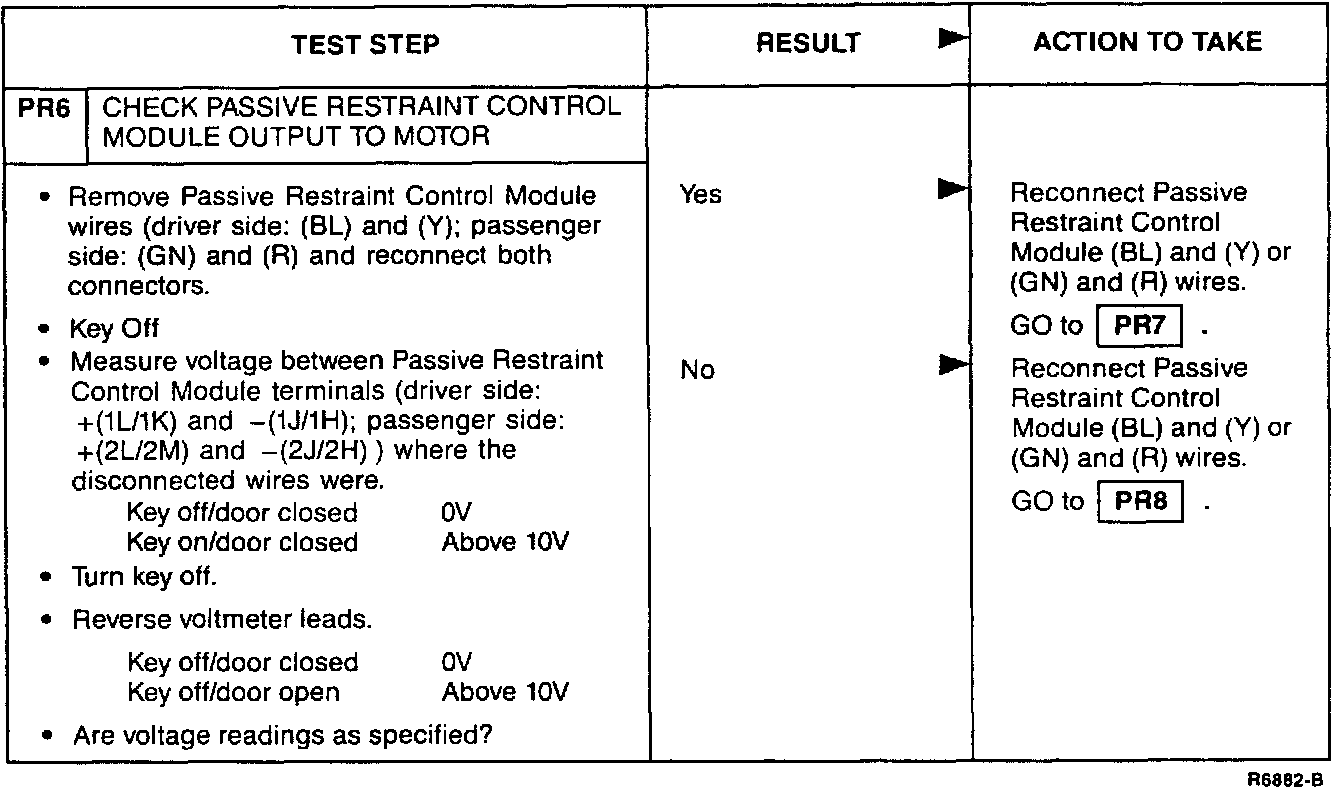

PR6:

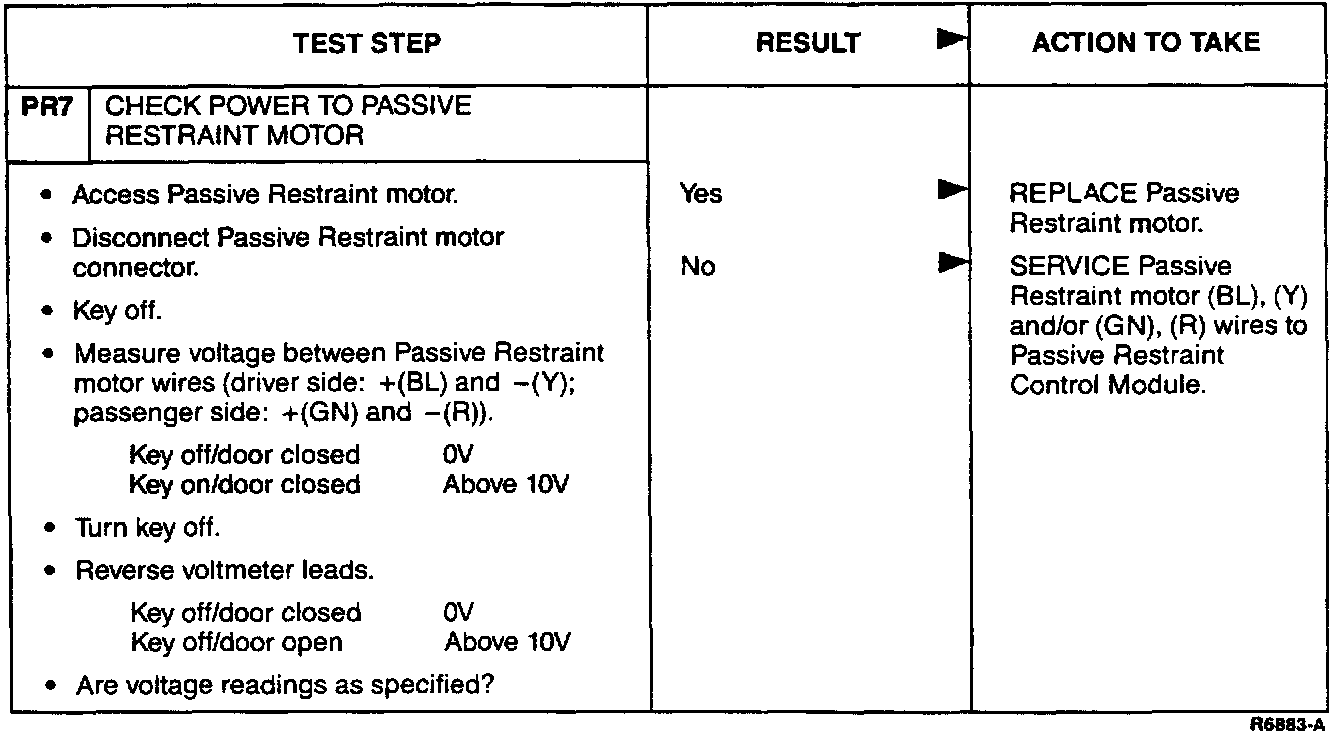

PR7:





PR8:

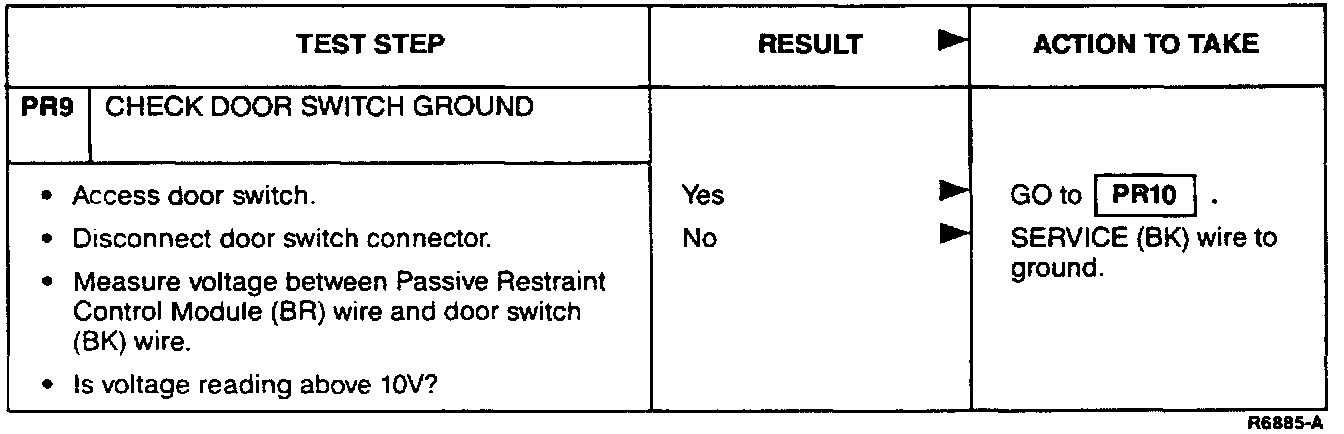

PR9:





PR10:

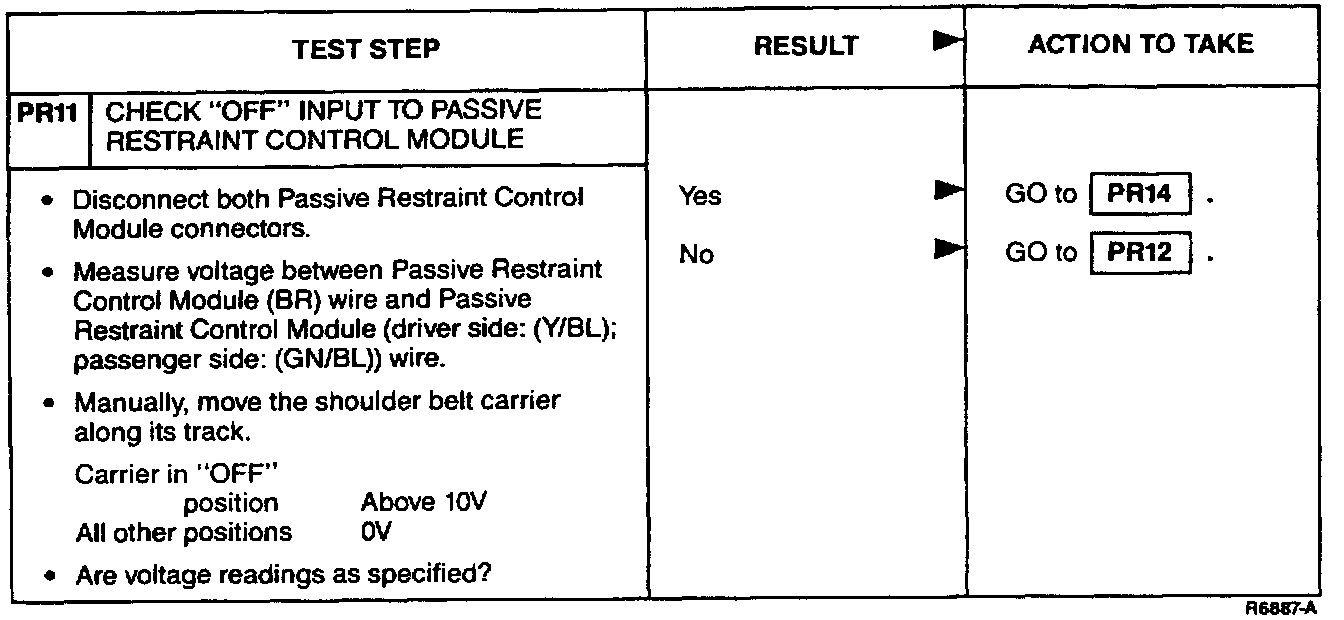

PR11:

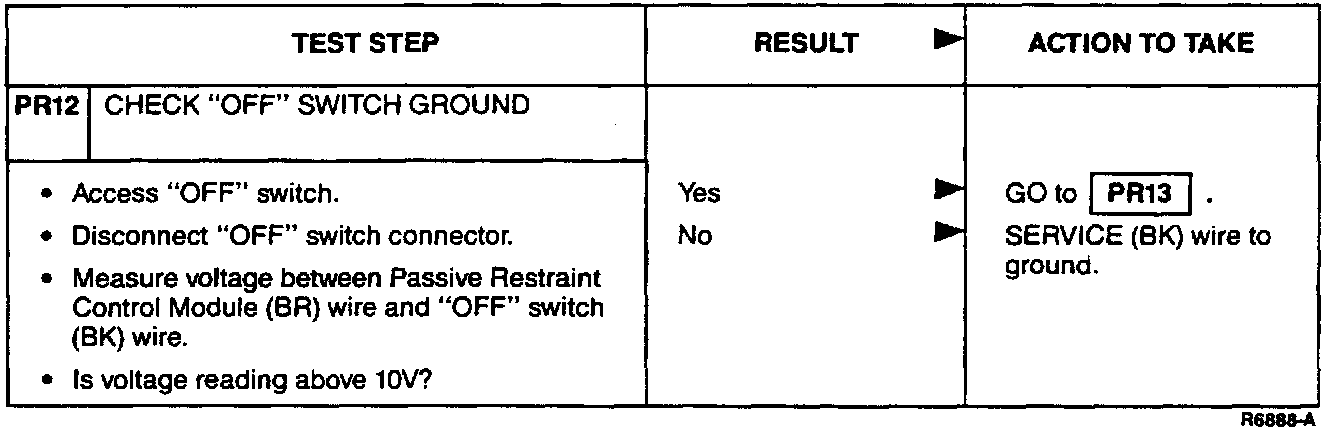

PR12:

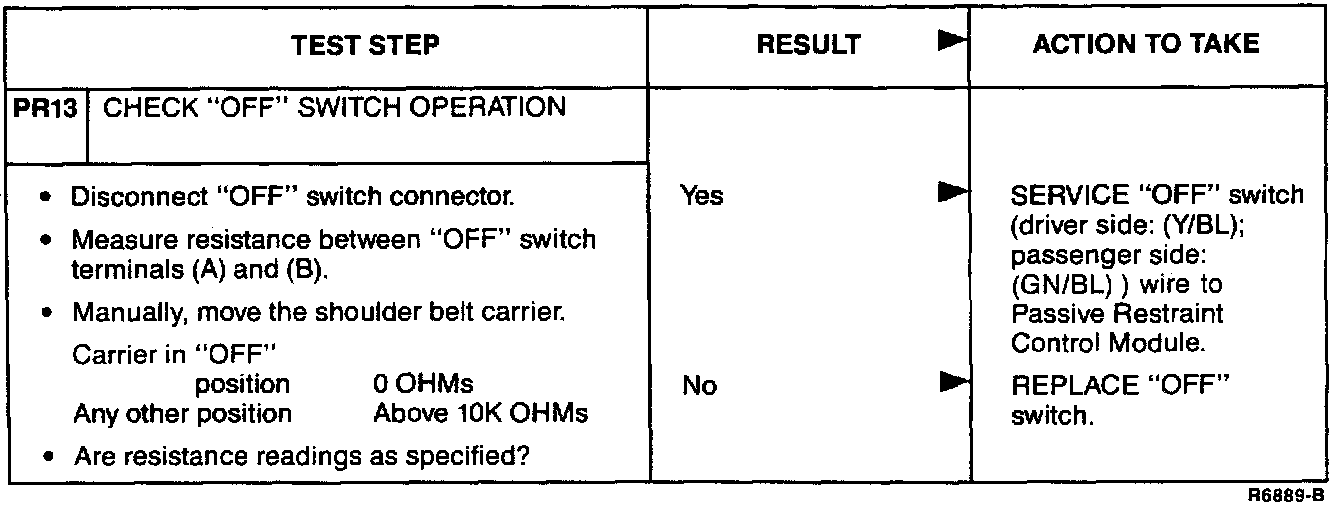

PR13:

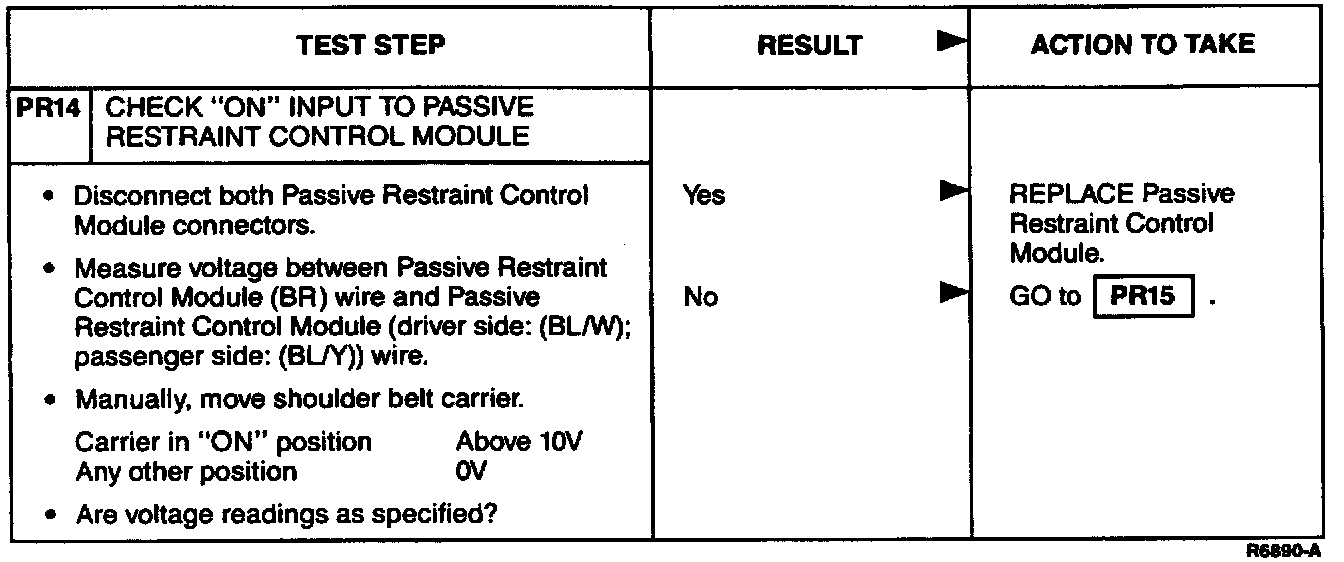

PR14:

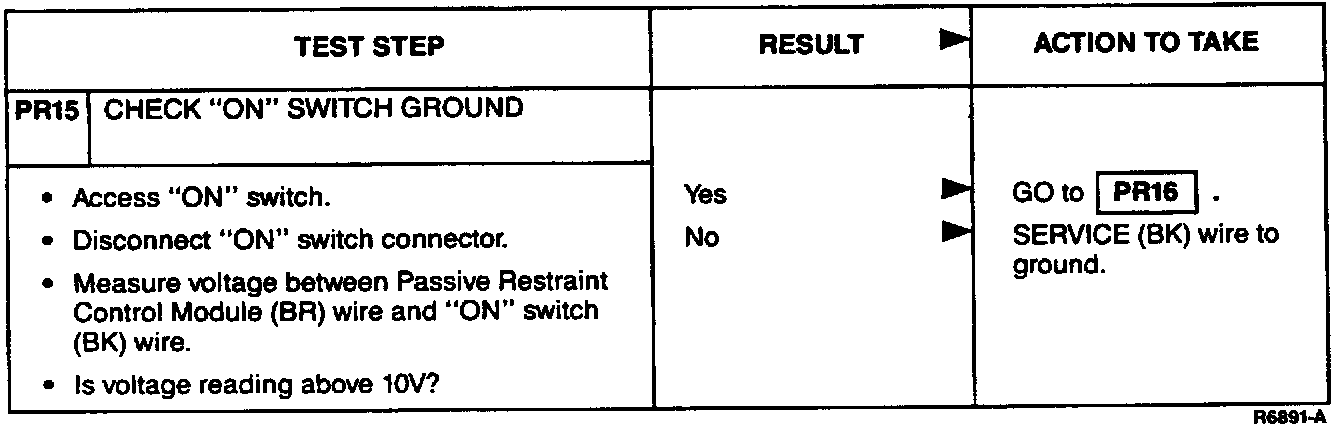

PR15:

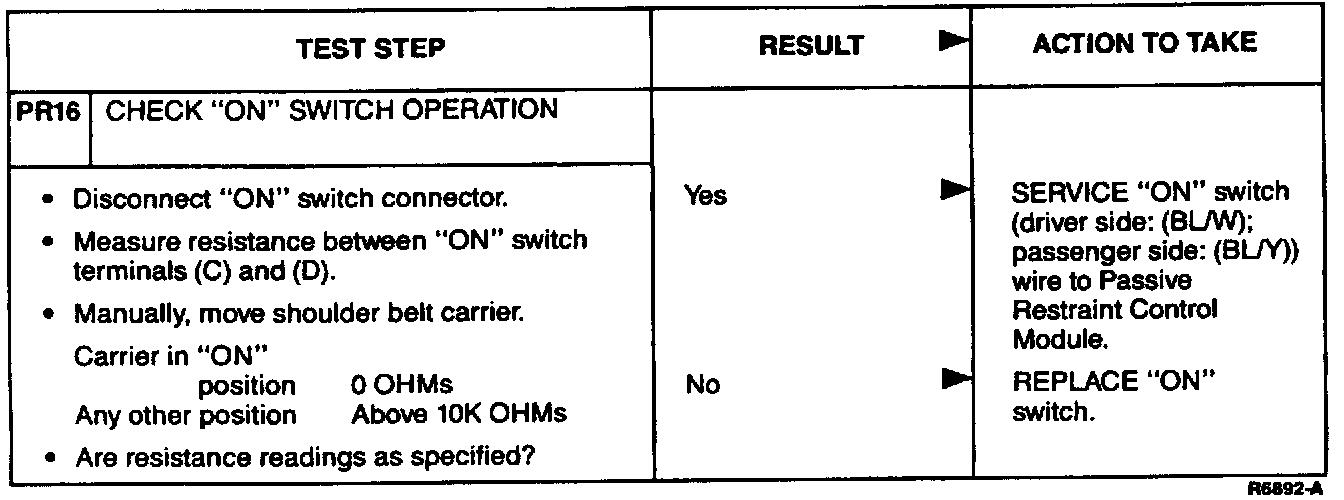

PR16:

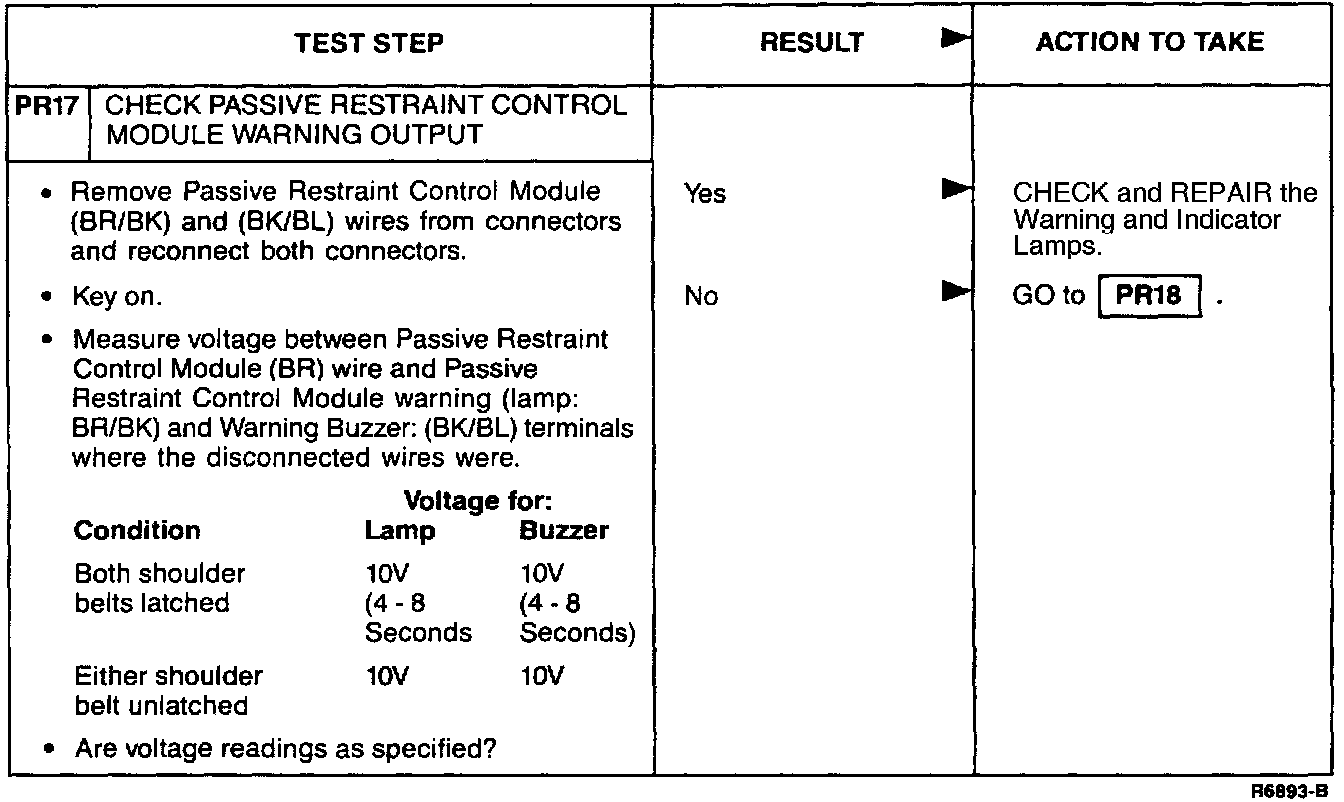

PR17:

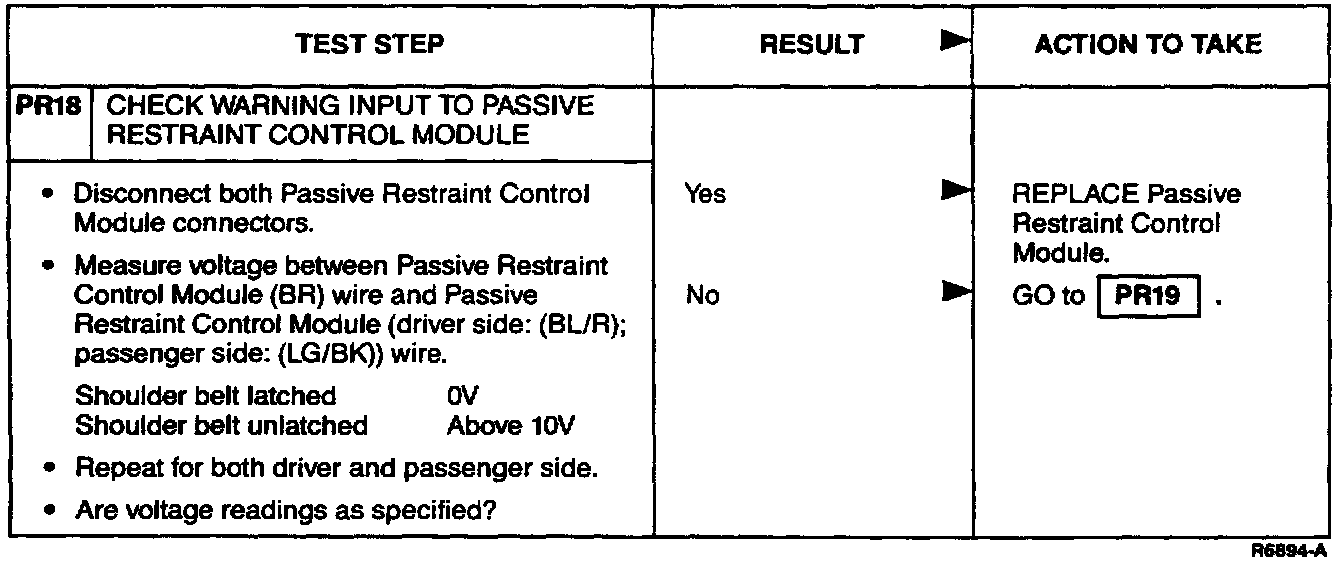

PR18:

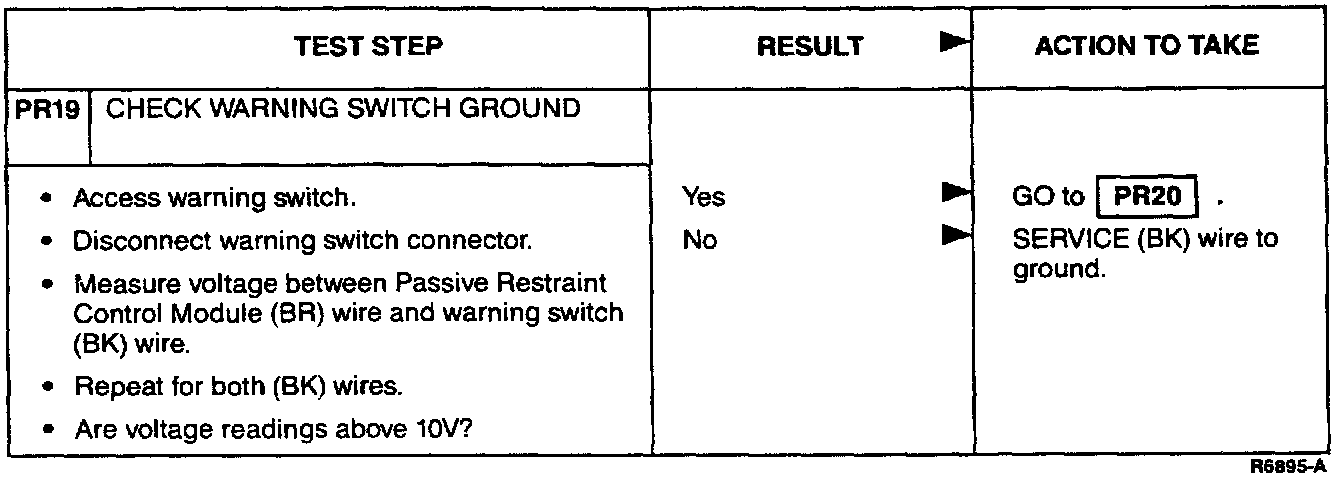

PR19:

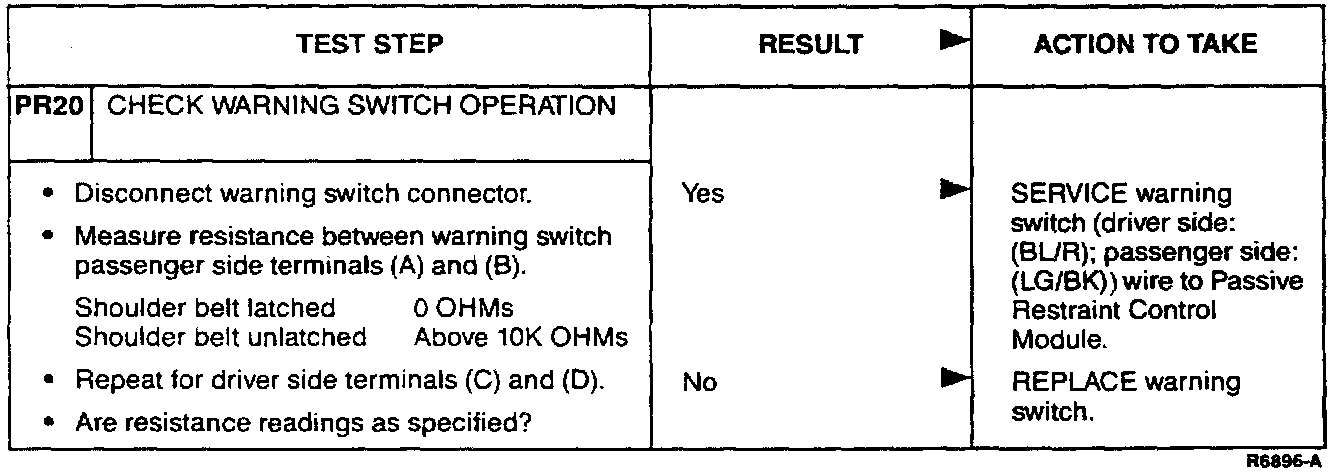

PR20:
