Rear Seat Belt Buckle

REMOVAL
1. Remove the rear seat cushion.

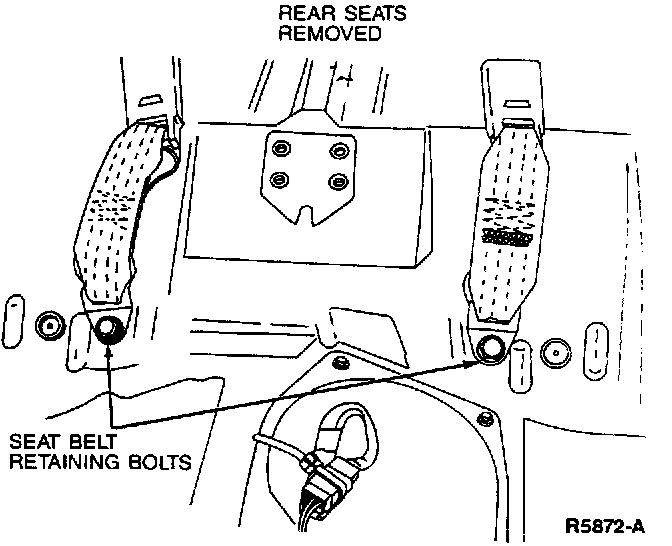

2. Remove the bolt securing the rear seat buckle to the floor.
3. Remove the rear seat buckle assembly.

INSTALLATION
1. Position the rear seat buckle assembly onto the floor.
2. Install the seat belt retaining bolt. Tighten the bolt to 39-55 Nm (28-39 ft lbs).
3. Install the rear seat cushion.
