Radiator Cooling Fan Motor Relay: Service and Repair

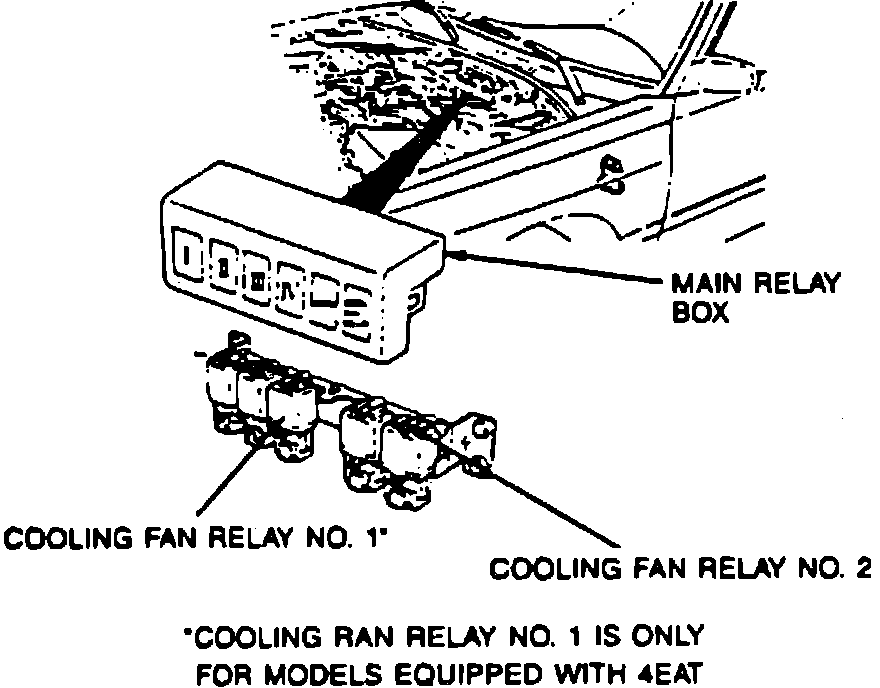

Fig. 40 Cooling Fan Relay Replace:

The cooling fan relays are located in the lefthand side of the bulkhead within the main relay box. A bracket is used to attach each relay to the bulkhead, Fig. 40.
1. Disconnect battery ground cable, then remove the relay from the bracket.
2. Disconnect electrical connector.
3. Reverse procedure to install.
