Electronic Steering/Ride Control Test - Revision

Article No.
91-11B-19

06/14/91

SHOP MANUAL - 1990 - PAGES 13-46-19 THROUGH 21 AND 14-39-16 THROUGH 18 - PINPOINT TEST PROCEDURES AND RESISTANCE VALUES REVISED

FORD:
1990 PROBE

ISSUE:
Electronic Steering and Programmed Ride Control Pinpoint Test procedures and resistance values have been revised on Pages 13-46-19 through 21 and 14-39-16 through 18 of the 1990 Probe Shop Manual.

ACTION:
Refer to the pages in this TSB article for the updated information.

OTHER APPLICABLE ARTICLES: 90-25B-18
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000

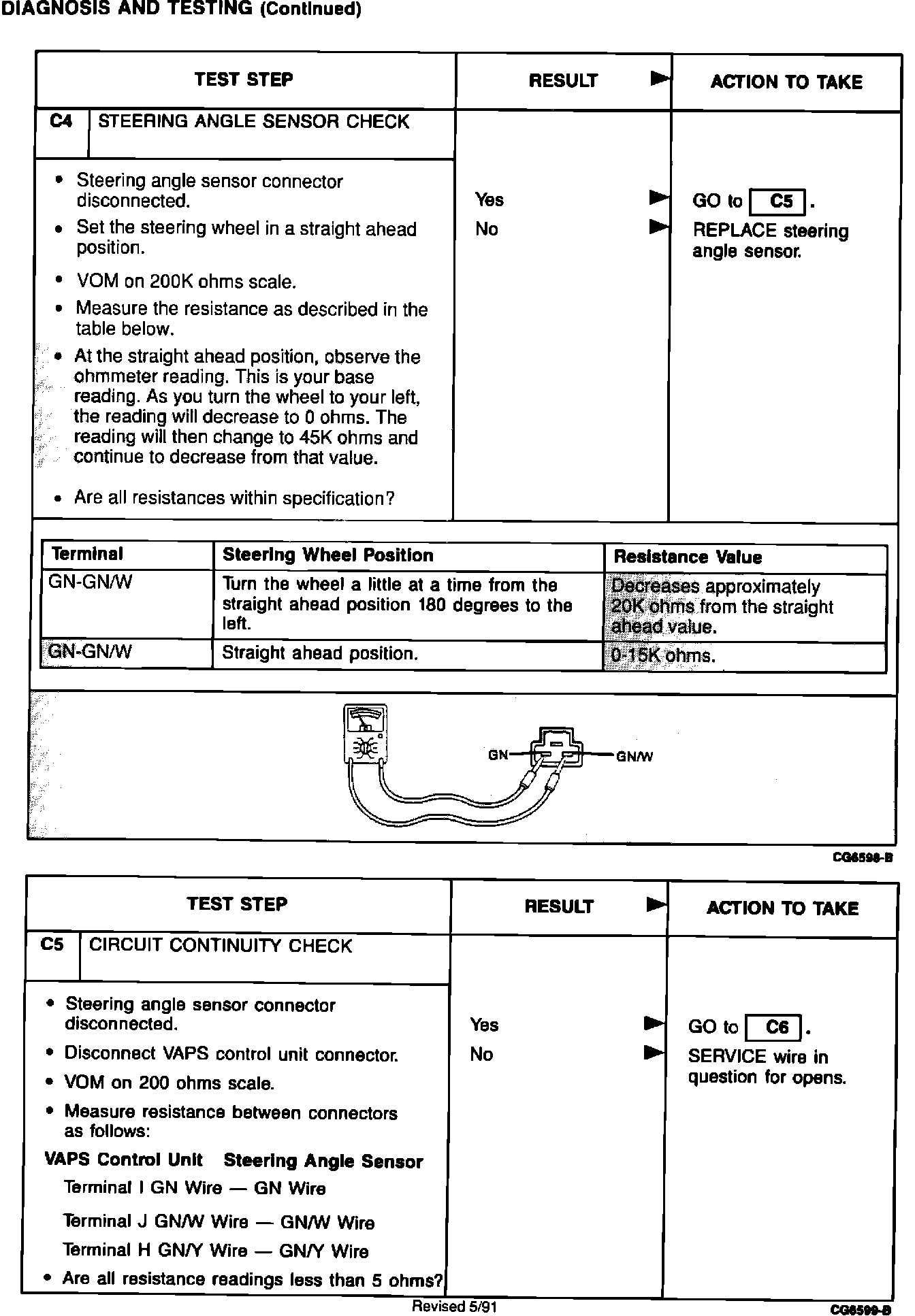

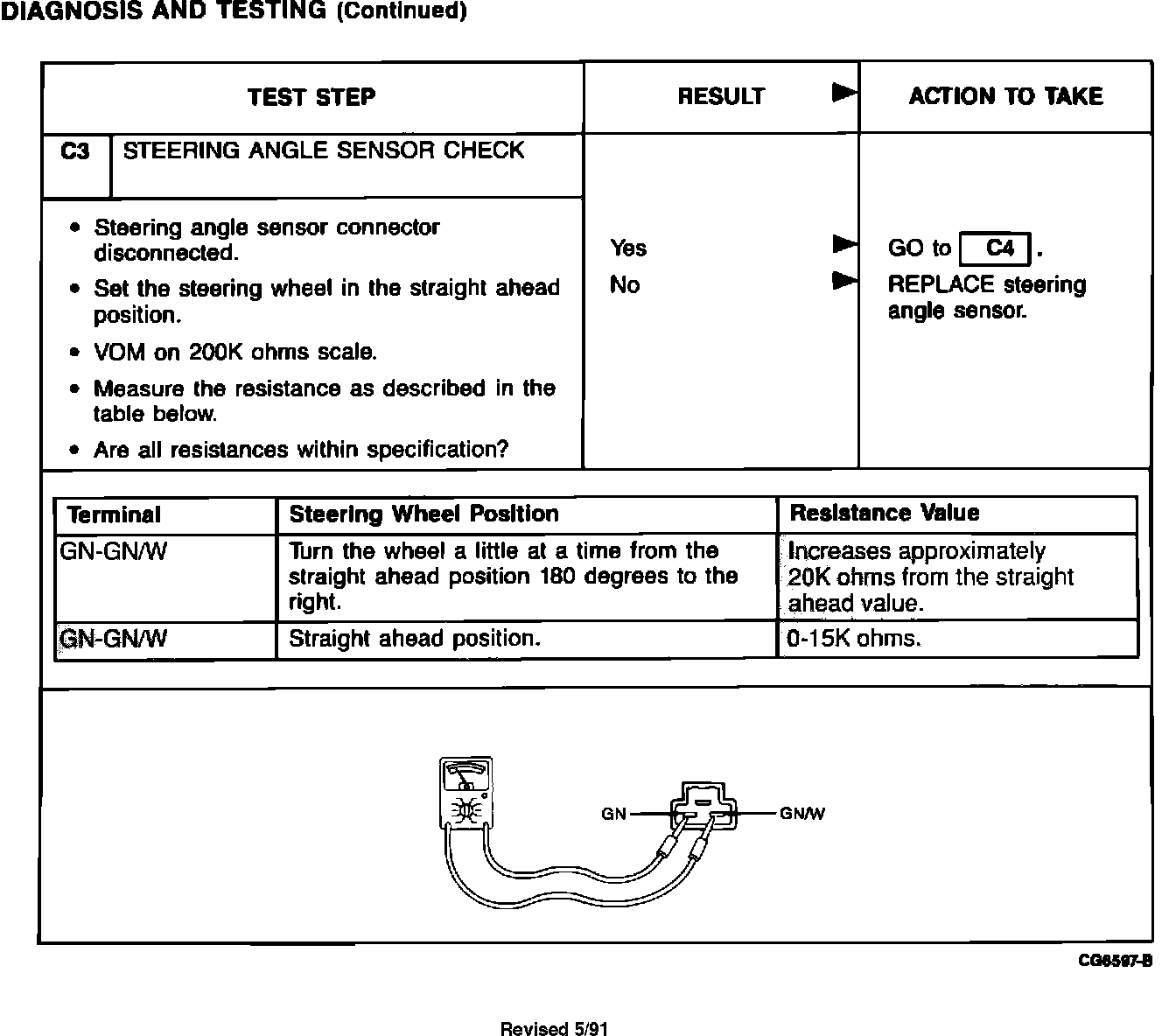

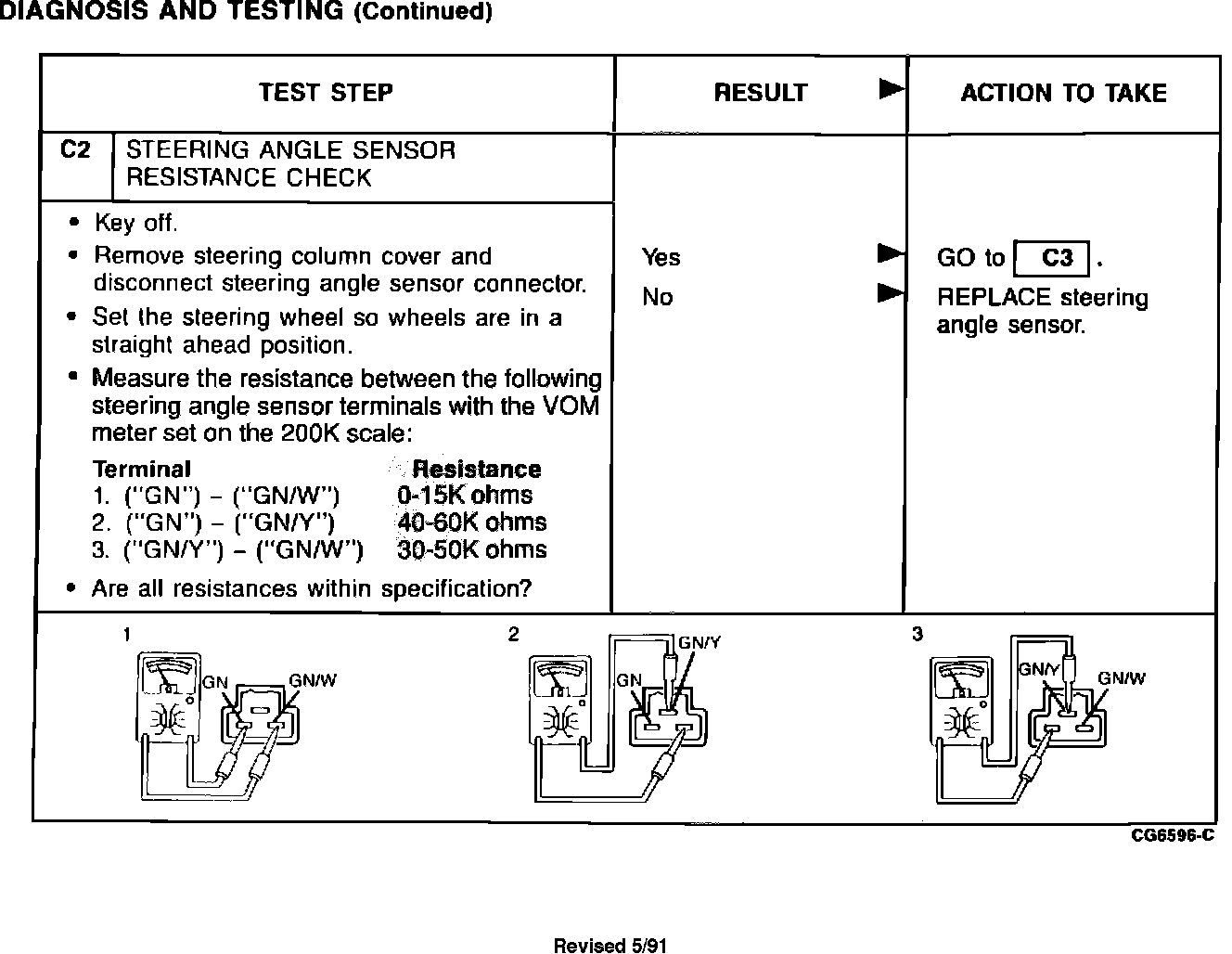

TEST STEP C2 THRU C5

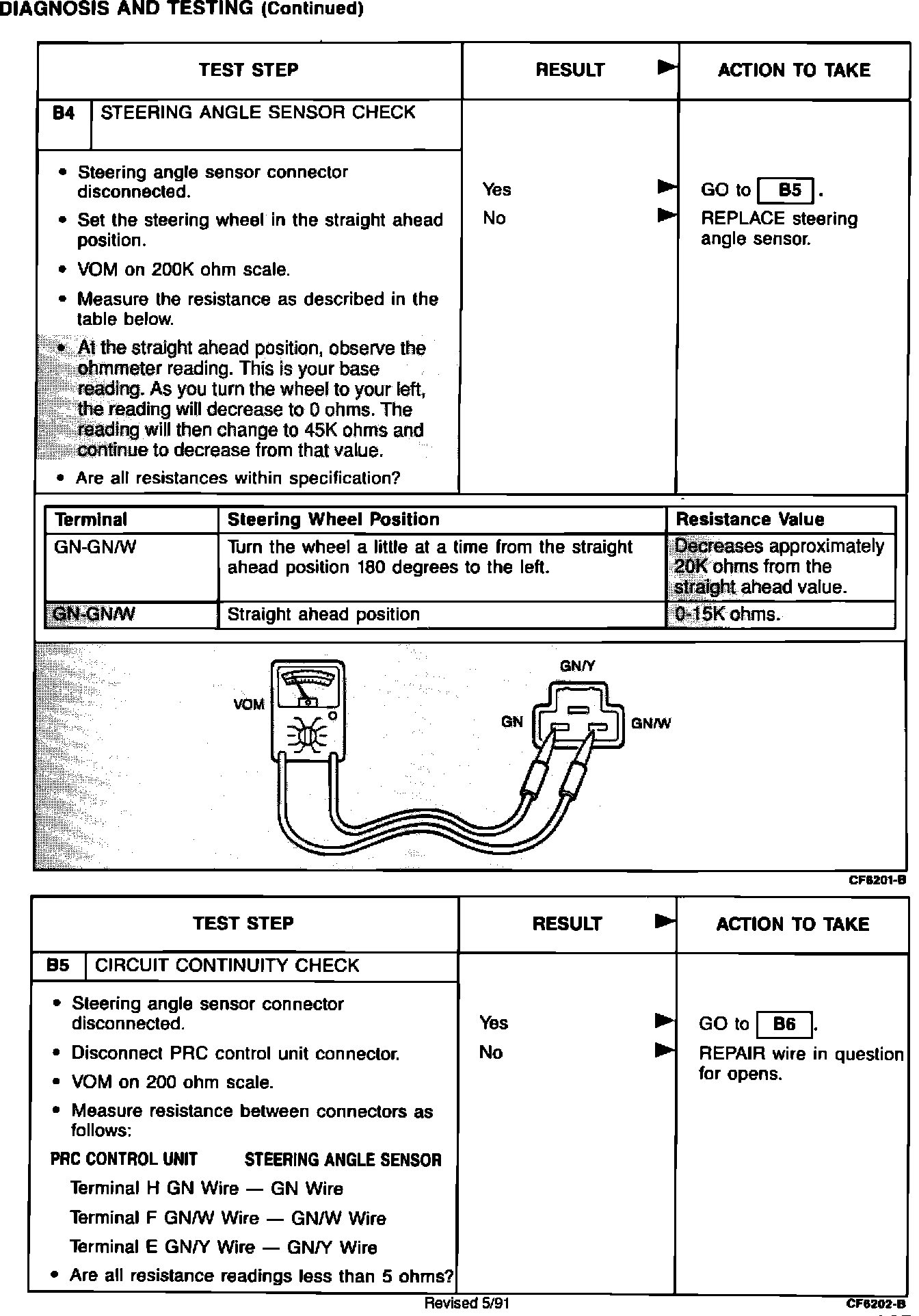

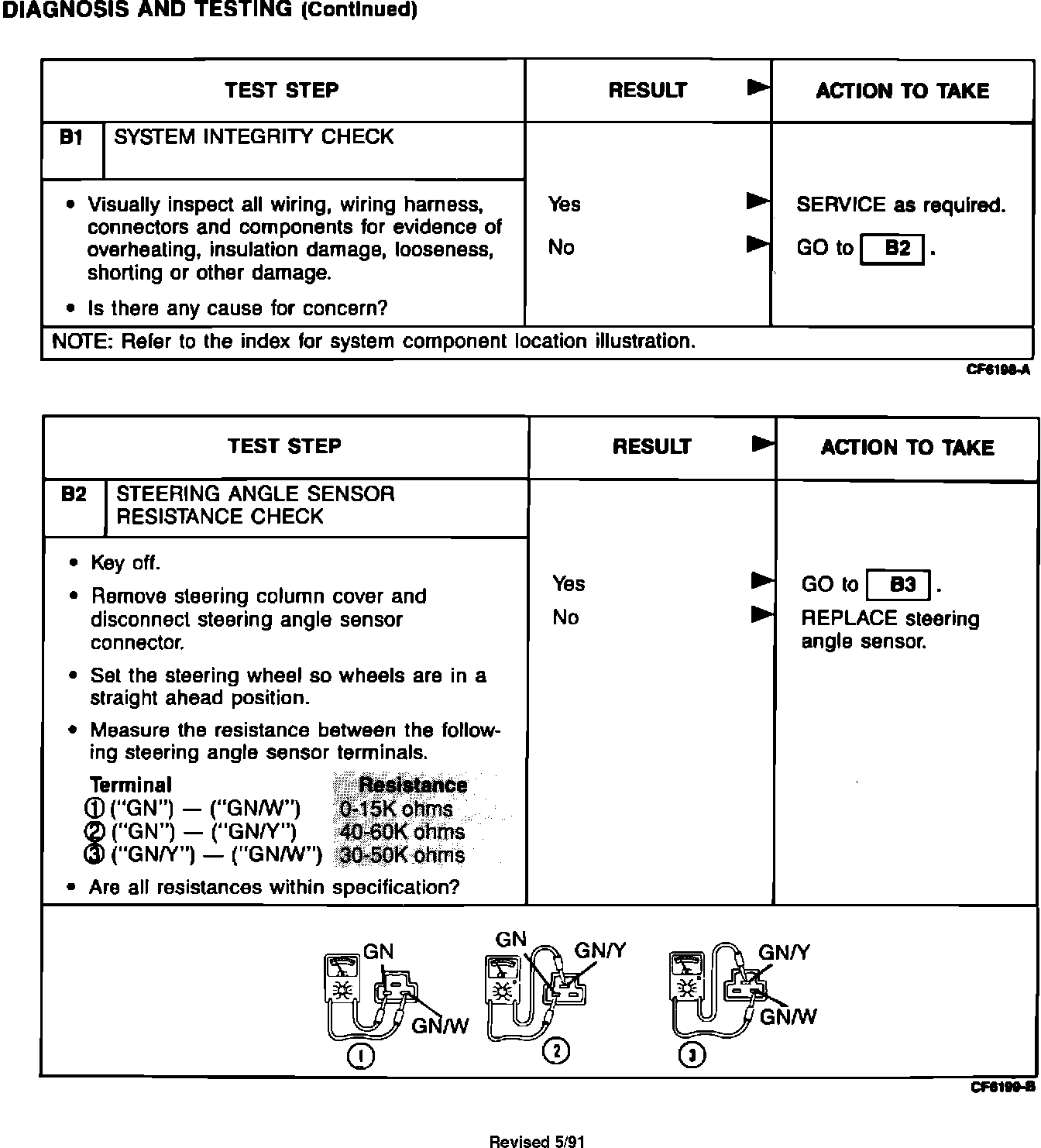

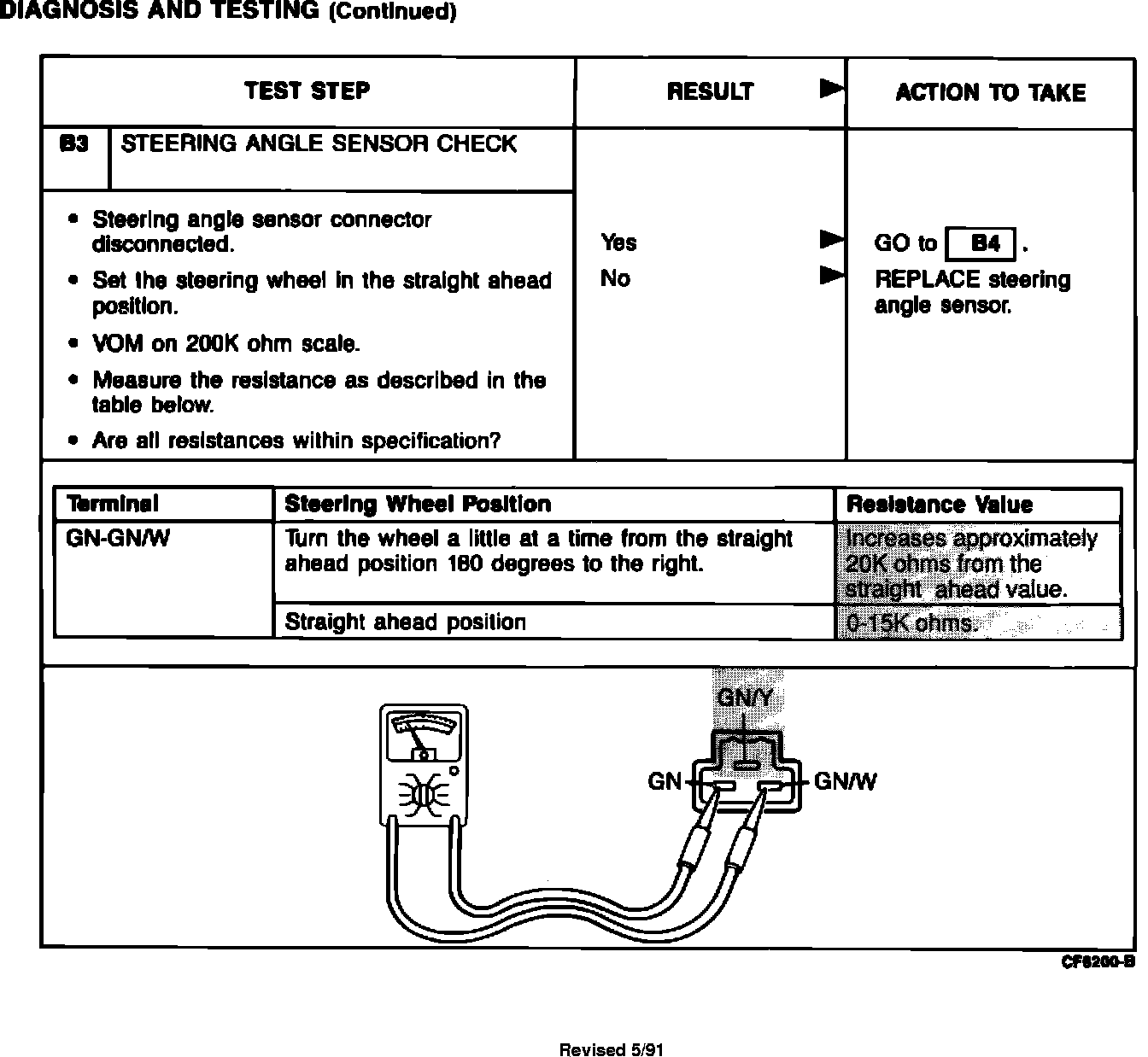

TEST STEP B1 THRU B5
