A4: Check For Air In System
A4: Check For Air In System

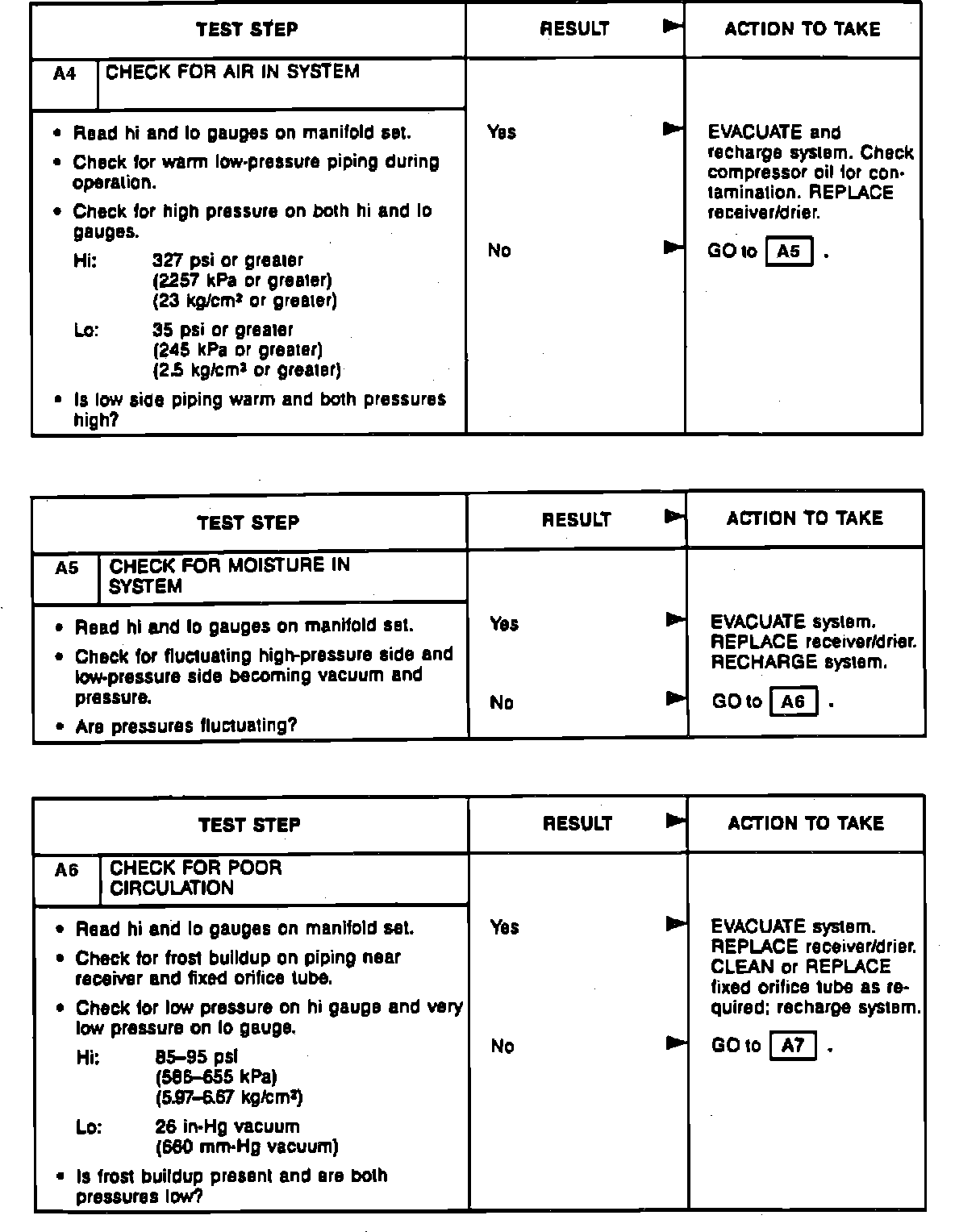

Fig. 14 Insufficient A/C cooling diagnosis (Test A4, A5 & A6):
