Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Electronic Climate Control >> Blower Motor Diagnosis >> BME5-Blower Relay No.2 Operation Check

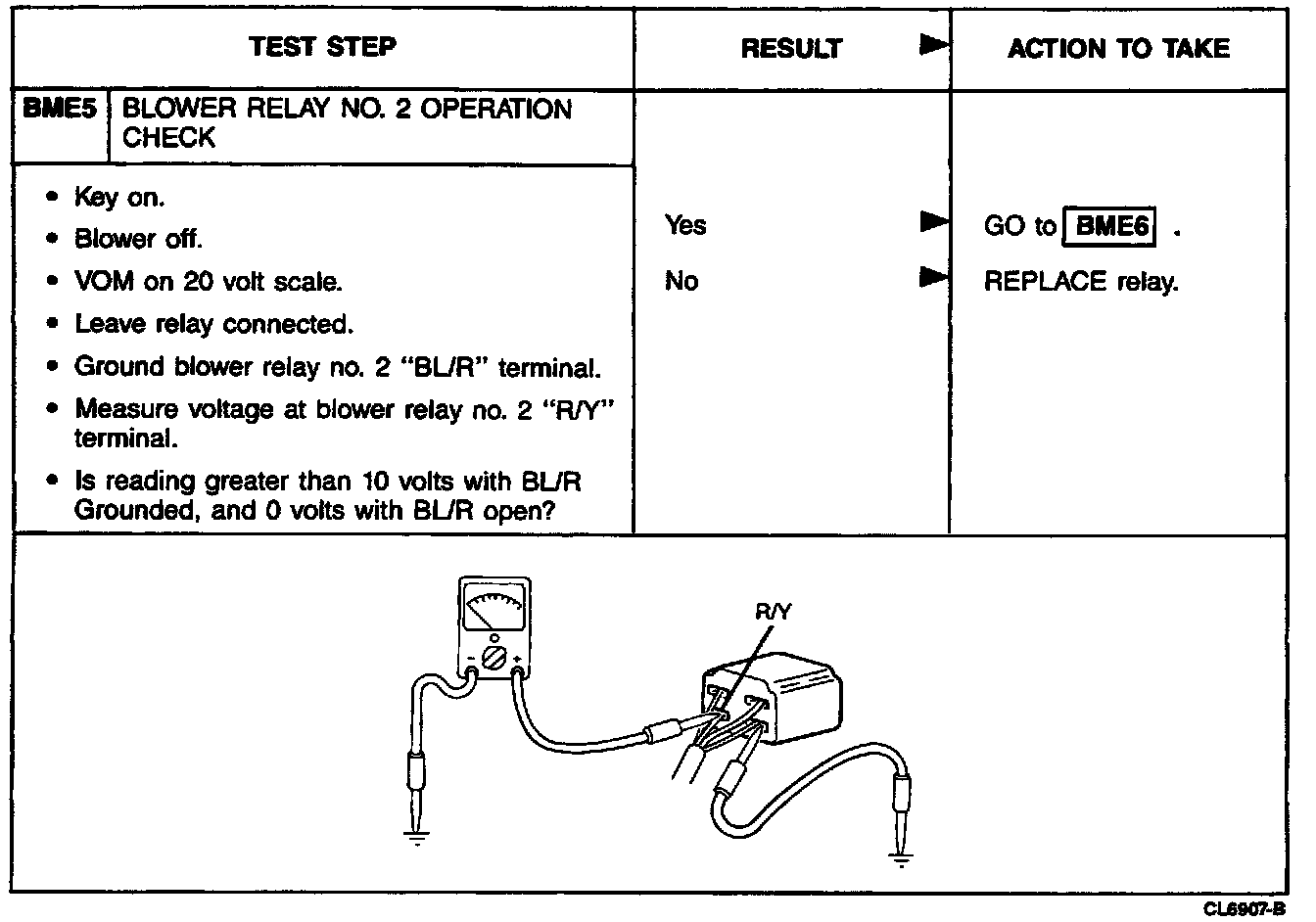

BME5-Blower Relay No.2 Operation Check

Blower Motor Diagnosis BME 5:
