Analog Oil Pressure Gauge - Application Chart

90ford21 INSTRUMENT CLUSTER - ANALOG - OIL PRESSURE GAUGE PARTS REQUIRED - NOT PUBLISHED IN PARTS

CATALOG OR MICRO-FICHE
Article No. 90-14-9
FORD: 1989-90 PROBE






This TSB article is being republished in its entirety to include a service part number that was omitted from the part listing.

ISSUE: The oil pressure gauge and related parts required are not identified by production date changes in the current parts catalog and micro-fiche. Cars built from Job # 1, 1988 through the present have had changes to the following components:

^ Circuit board

^ Oil pressure circuit board

^ Back panel

^ Combination gauge

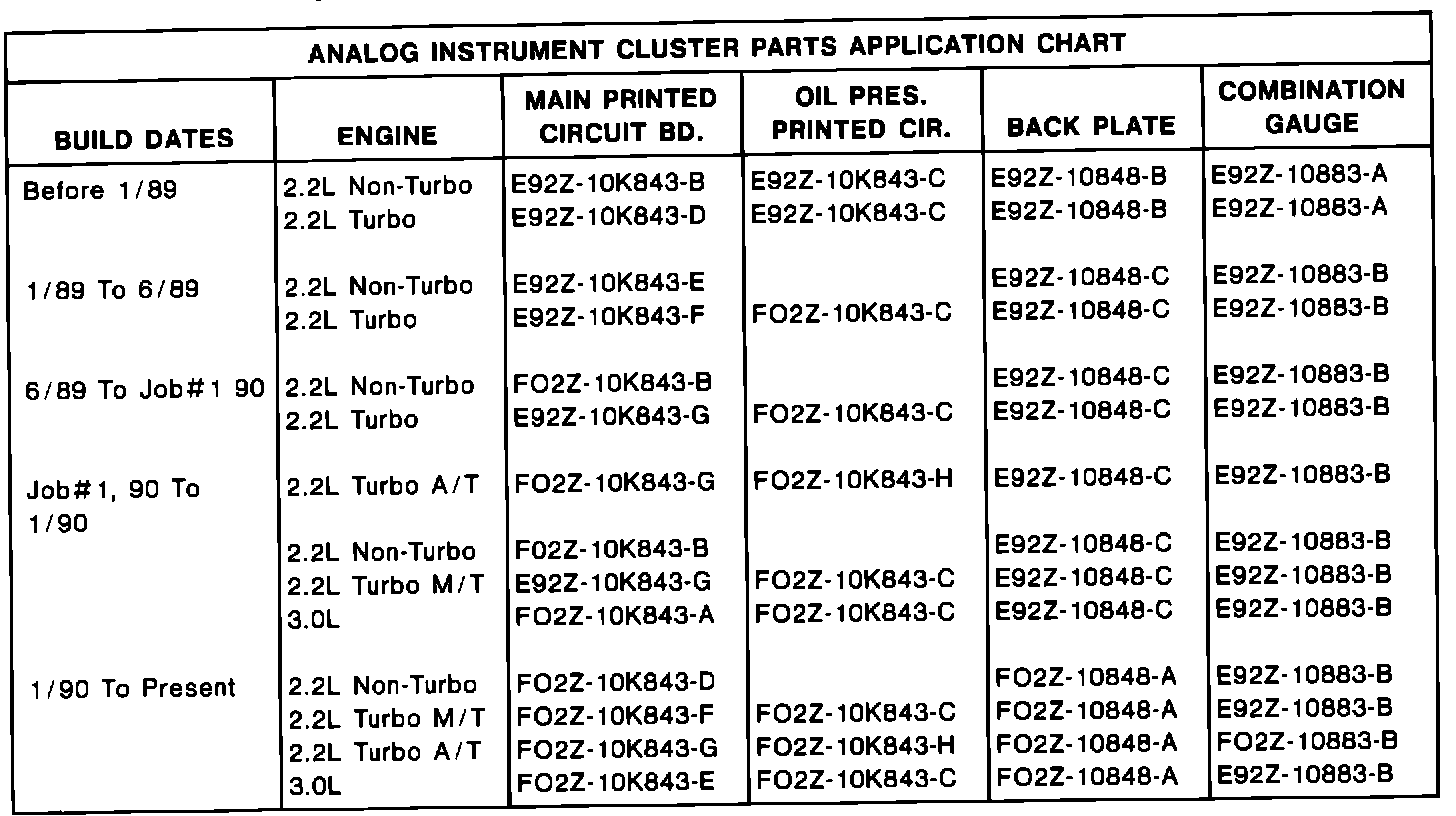

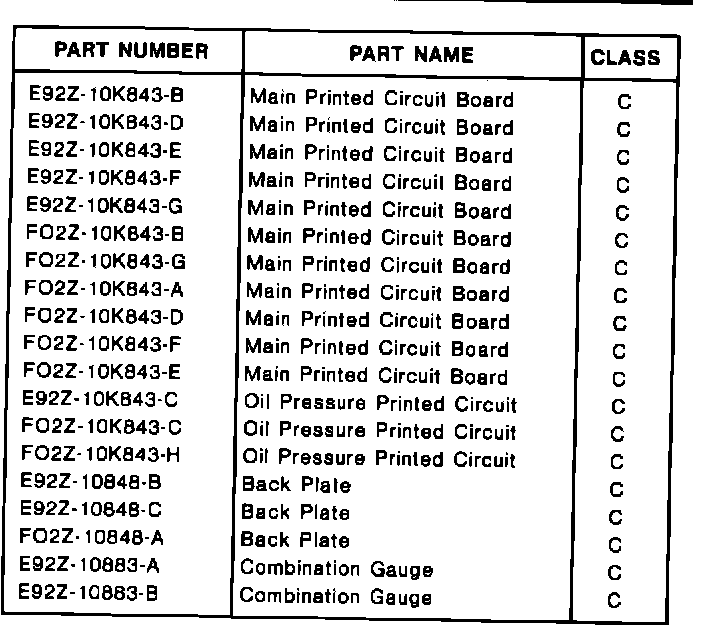

ACTION: If service is required, refer to the following Analog Instrument Cluster Parts Application Chart for correct parts usage.
OTHER APPLICABLE ARTICLES: None
SUPERSEDES: 90-12-8
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2300, 2400
