Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Illuminated Entry >> Part 2 of 2 - LX Models

Part 2 of 2 - LX Models

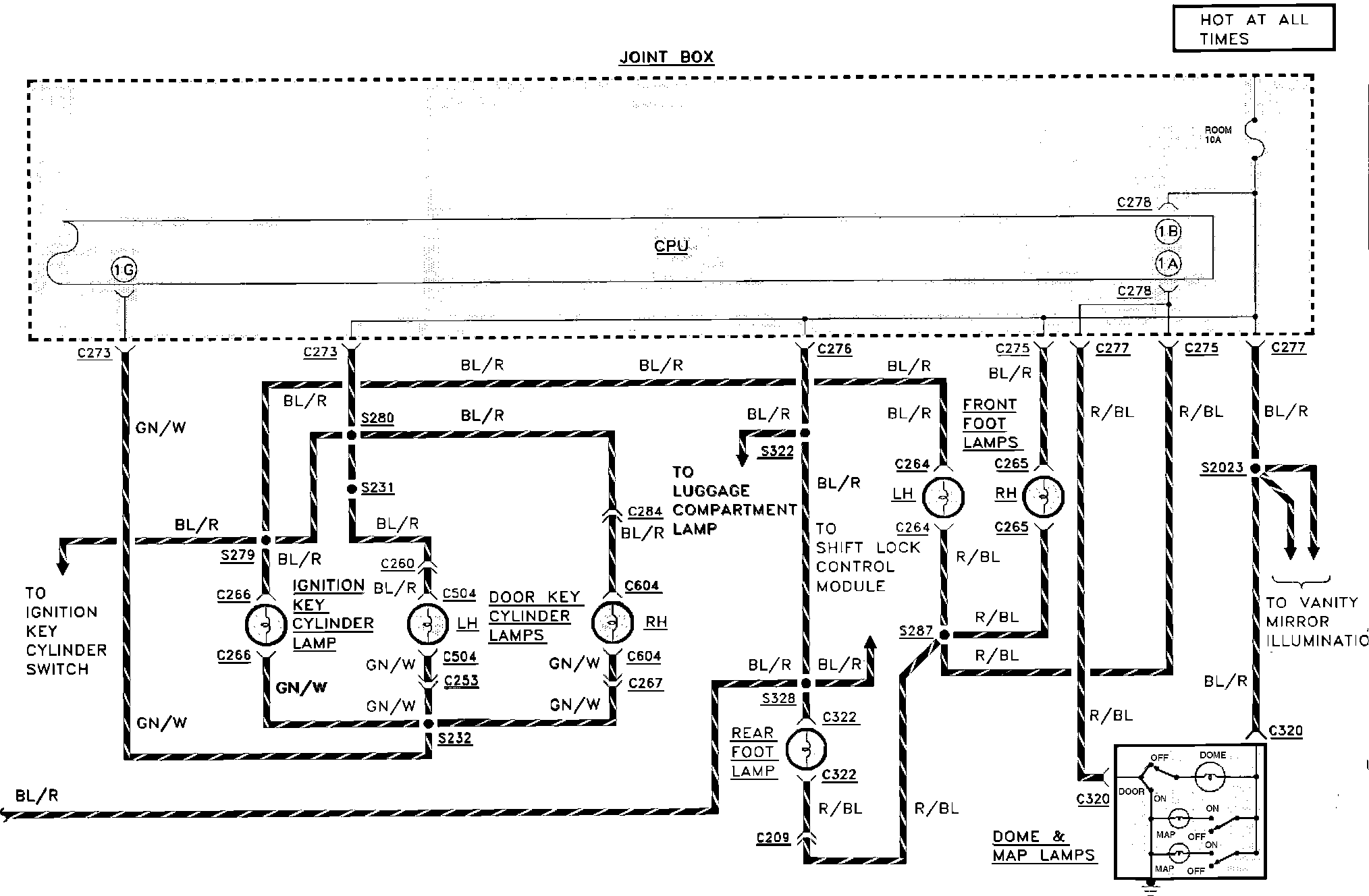

Illuminated Entry - LX Models:
