Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
U8 - U9
U8 - U9

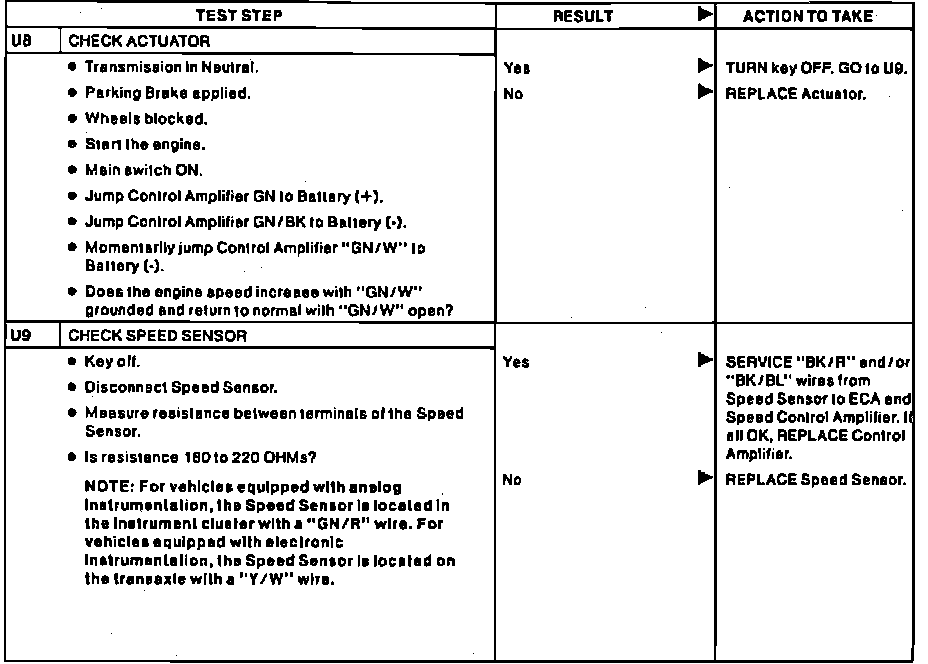

Fig. 79 Diagnosis and Testing (Part 4 Of 4):
