Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> U4 - U7

U4 - U7

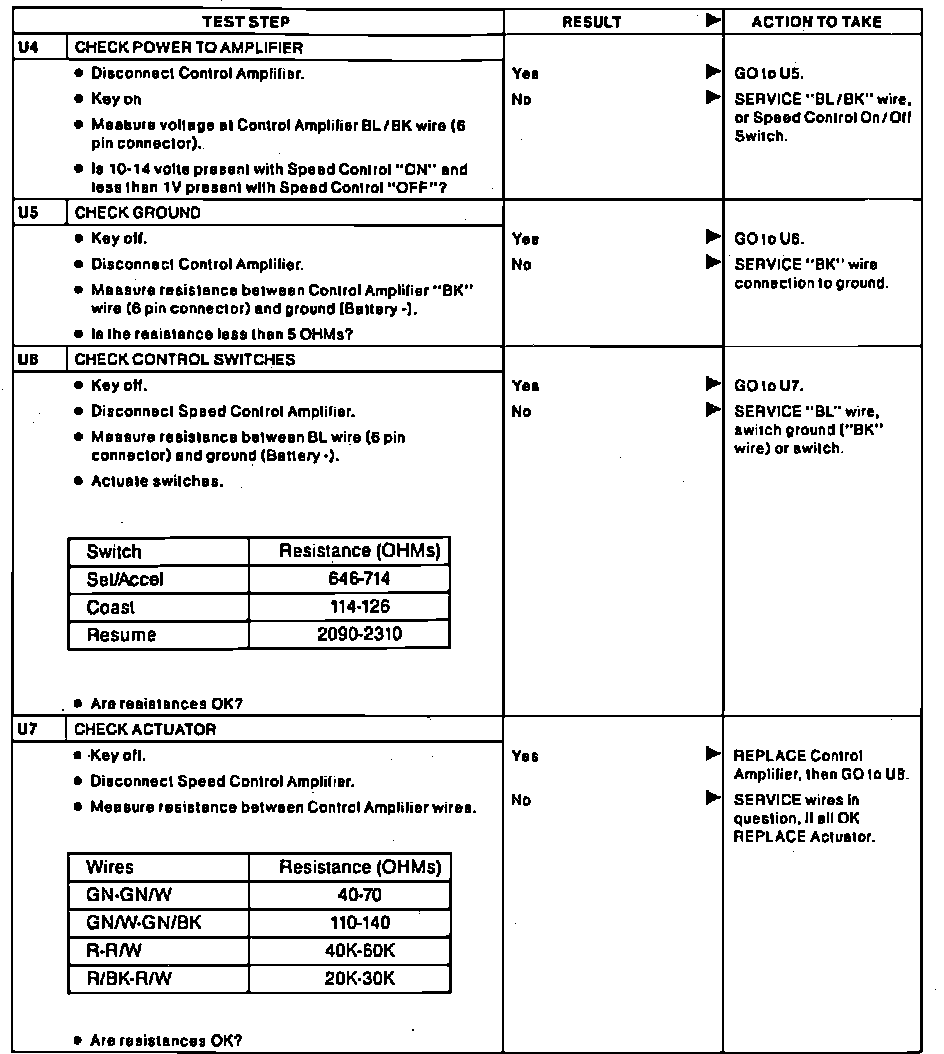

Fig. 79 Diagnosis and Testing (Part 3 Of 4):
