Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> AFR Front Right Wheel Sensor >> AFR7 ABS Unit Check

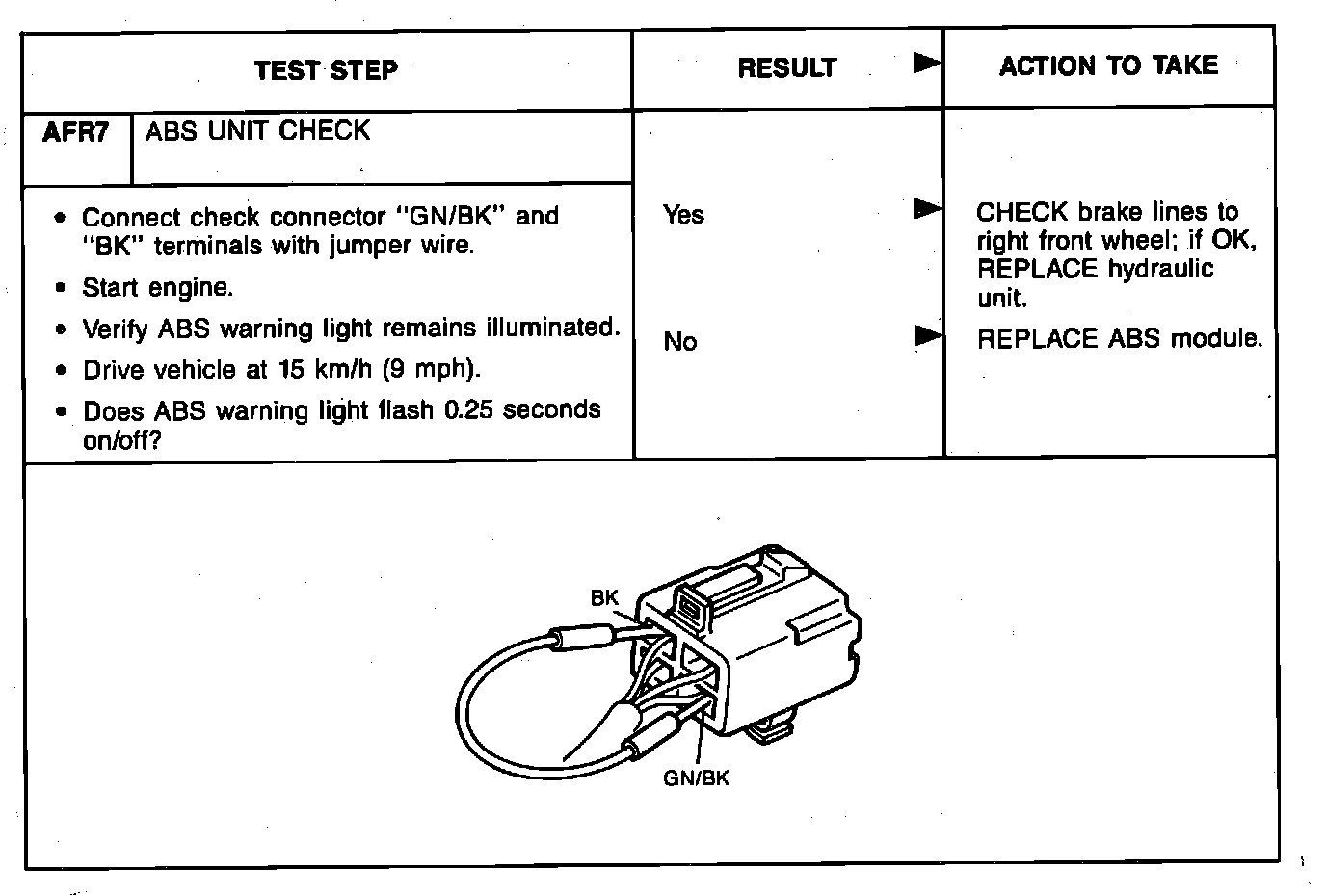

AFR7 ABS Unit Check
