Home >> Ford >> 1983 >> Mustang V8-302 5.0L VIN M 4-bbl HP >> Parts and Labor >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Images

Images

4 Speed, German:

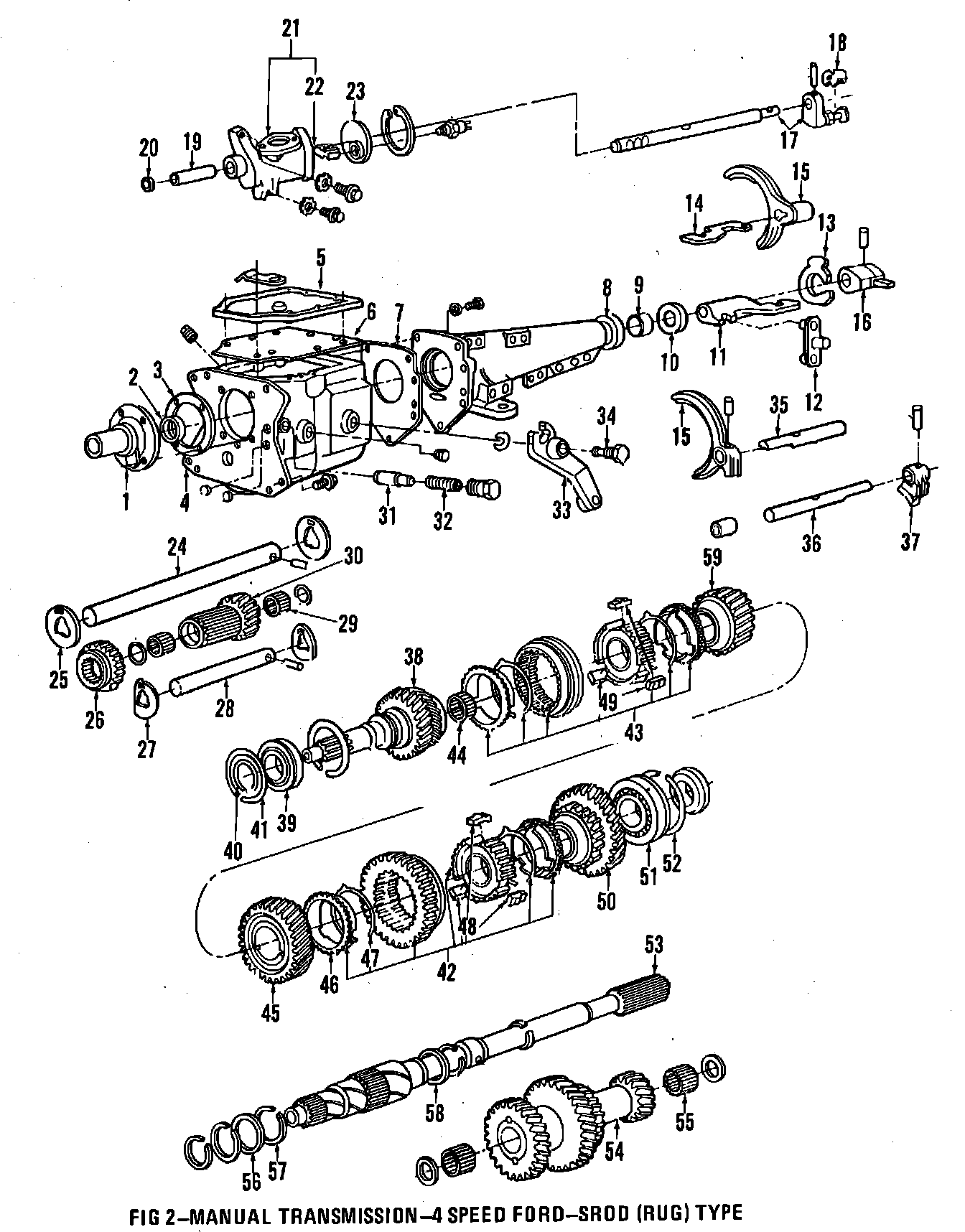

4 Speed, Ford-SROD(Rug) Type:

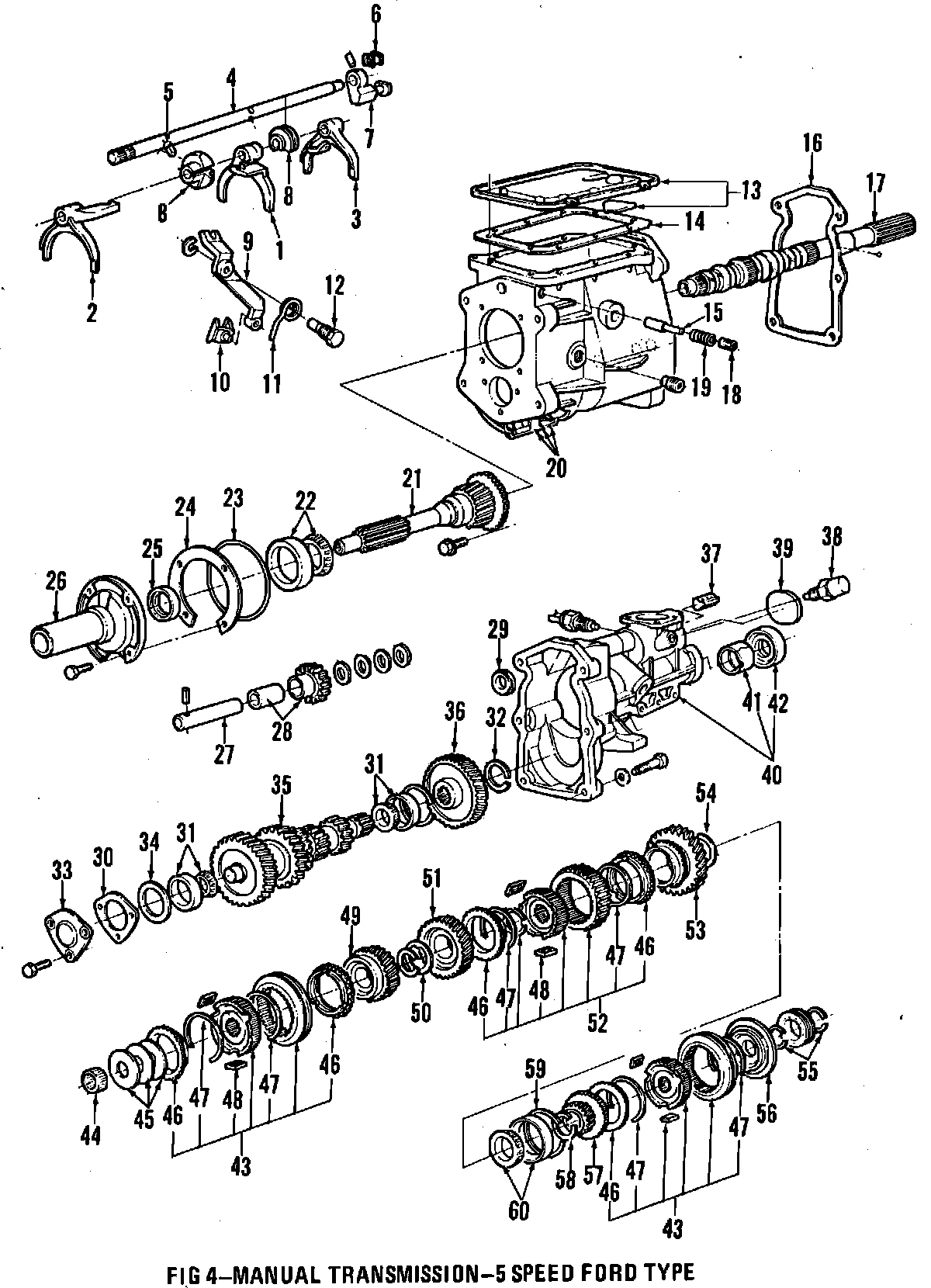

5 Speed, Ford Type:



5 Speed, Borg Warner:
