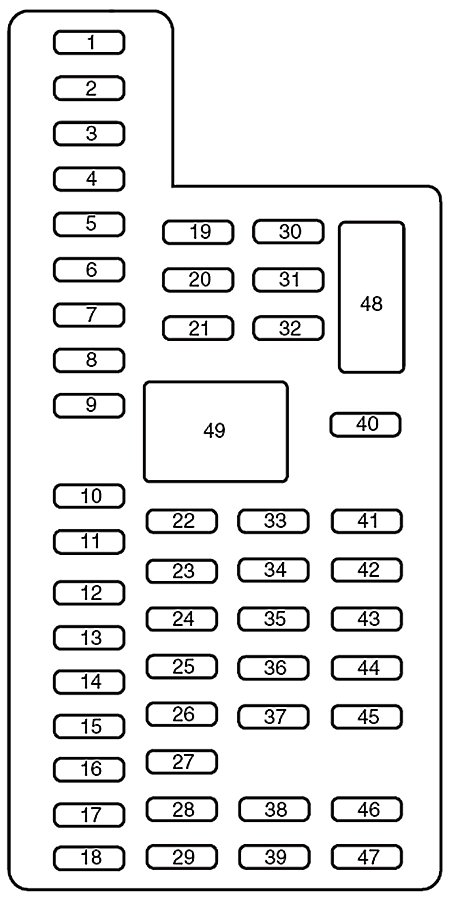

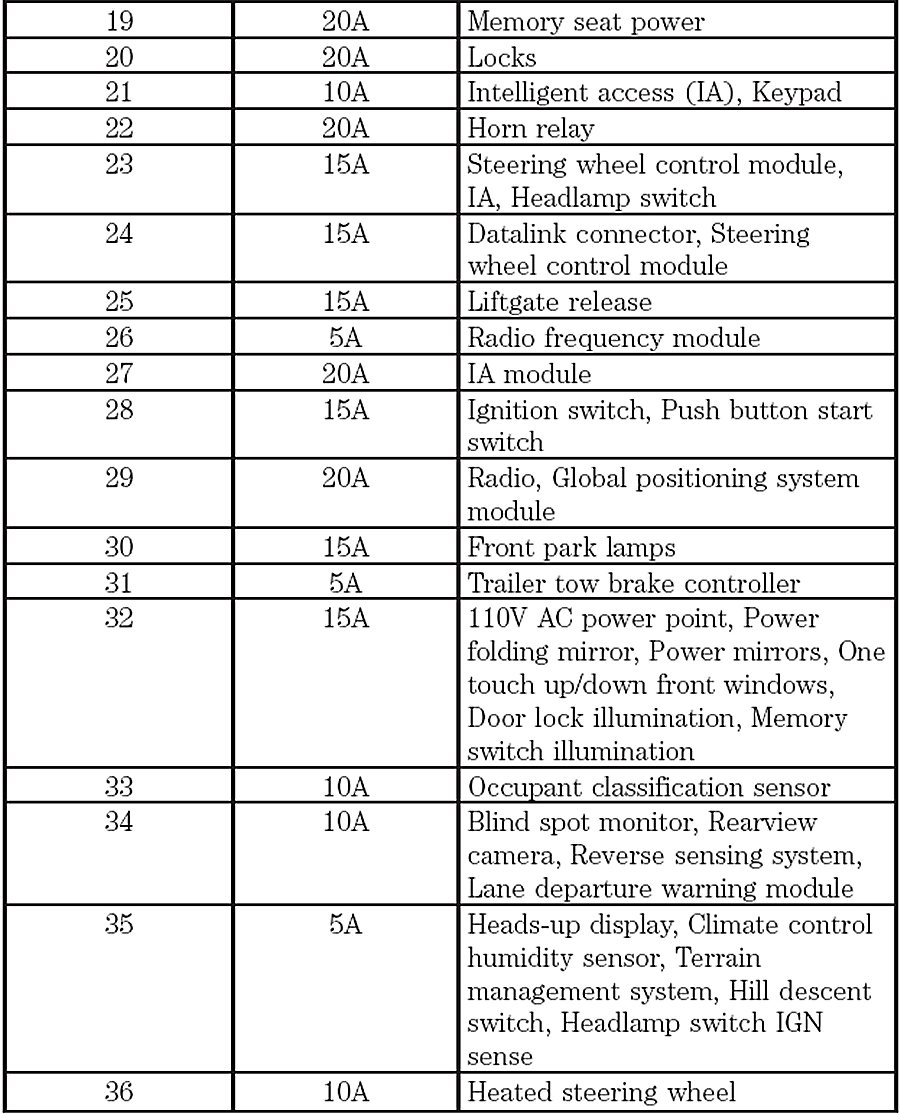

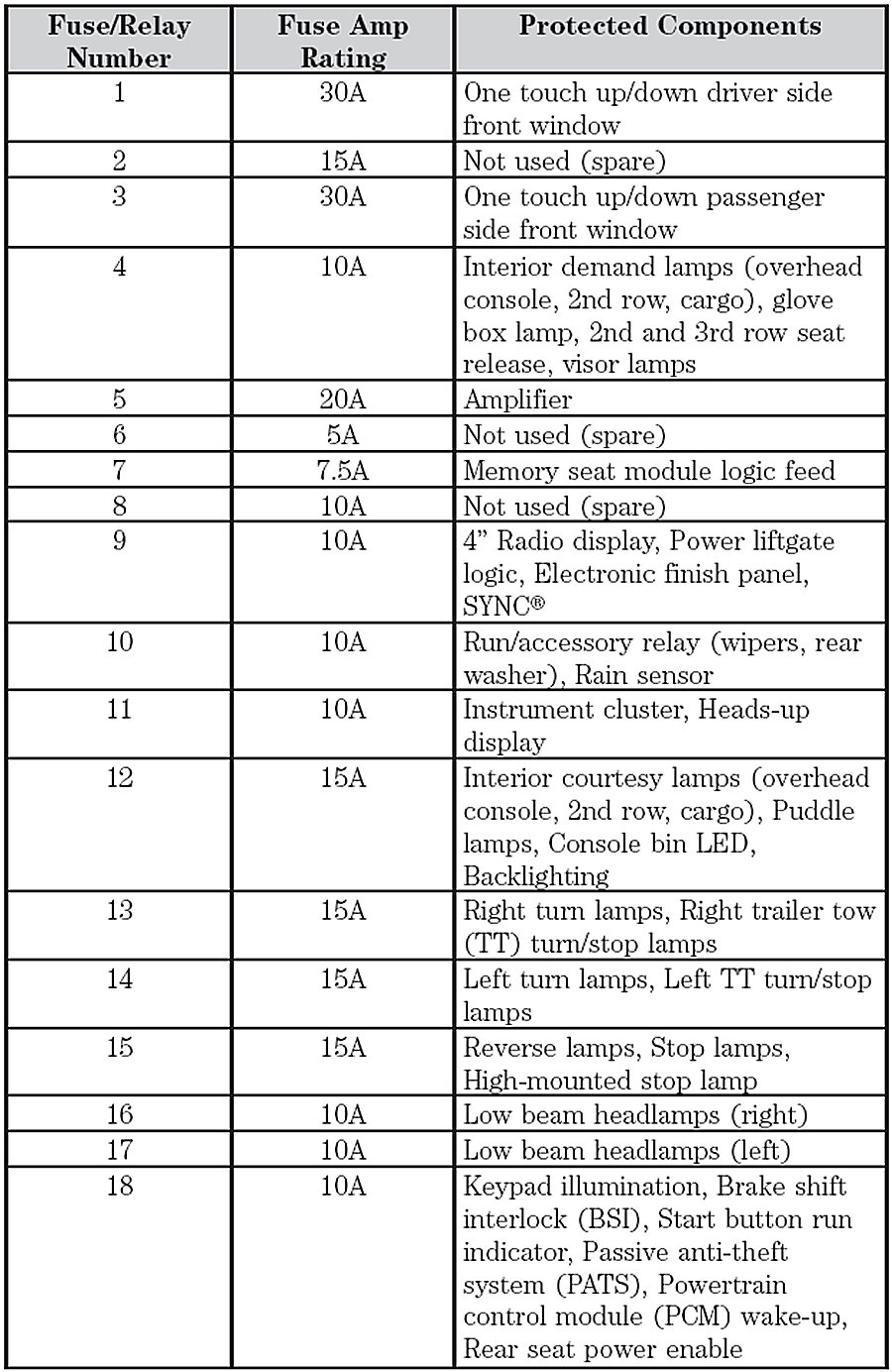

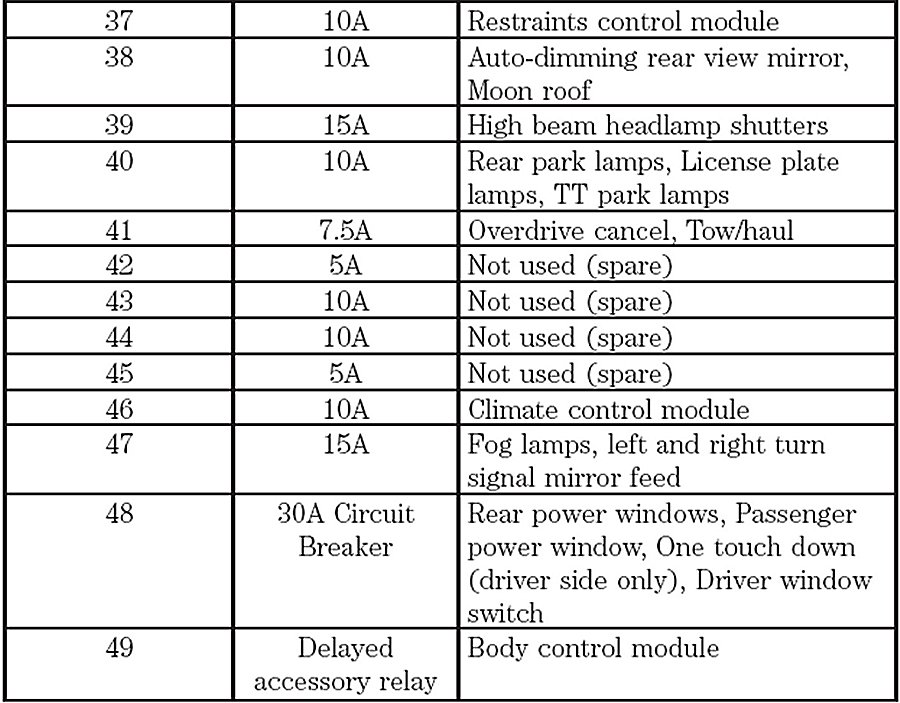

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
is located below and to the left of the steering wheel by the brake pedal.
