Lighting - Exterior Lights Flash ON and OFF
TSB 13-4-1204/25/13
HEADLAMPS FLASHING ON/OFF - VEHICLES NOT
EQUIPPED WITH AUTOLAMPS - BUILT ON OR
BEFORE 1/23/2013
FORD:
2013 Edge, Explorer
ISSUE
Some 2013 Explorer, Police Utility and Edge vehicles built on or before 1/23/2013 and not equipped with autolamps may exhibit the headlamps and/or exterior lamps turning on and off with the key out of the ignition and the headlamp switch in the off position.
ACTION
Follow the repair procedure steps to correct the concern.
SERVICE PROCEDURE
Replace the Front Lighting Control Module. Refer to Workshop Manual, Section 417-01.

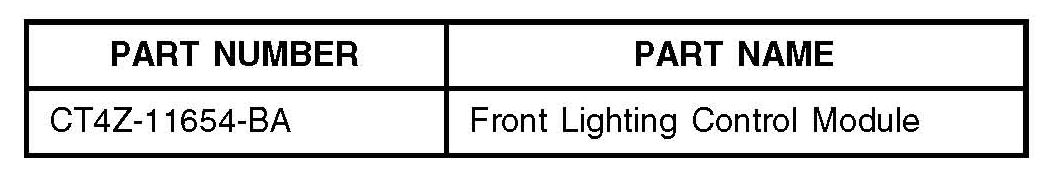

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
130412A 2013 Explorer: Replace 0.3 Hr.
The Front Lighting Control
Module (Do Not Use With
Any Other Labor
Operations)
130412A 2013 Edge: Replace The 0.2 Hr.
Front Lighting Control
Module (Do Not Use With
Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
11654 42
