Rear Subframe: Service and Repair
Subframe - Rear

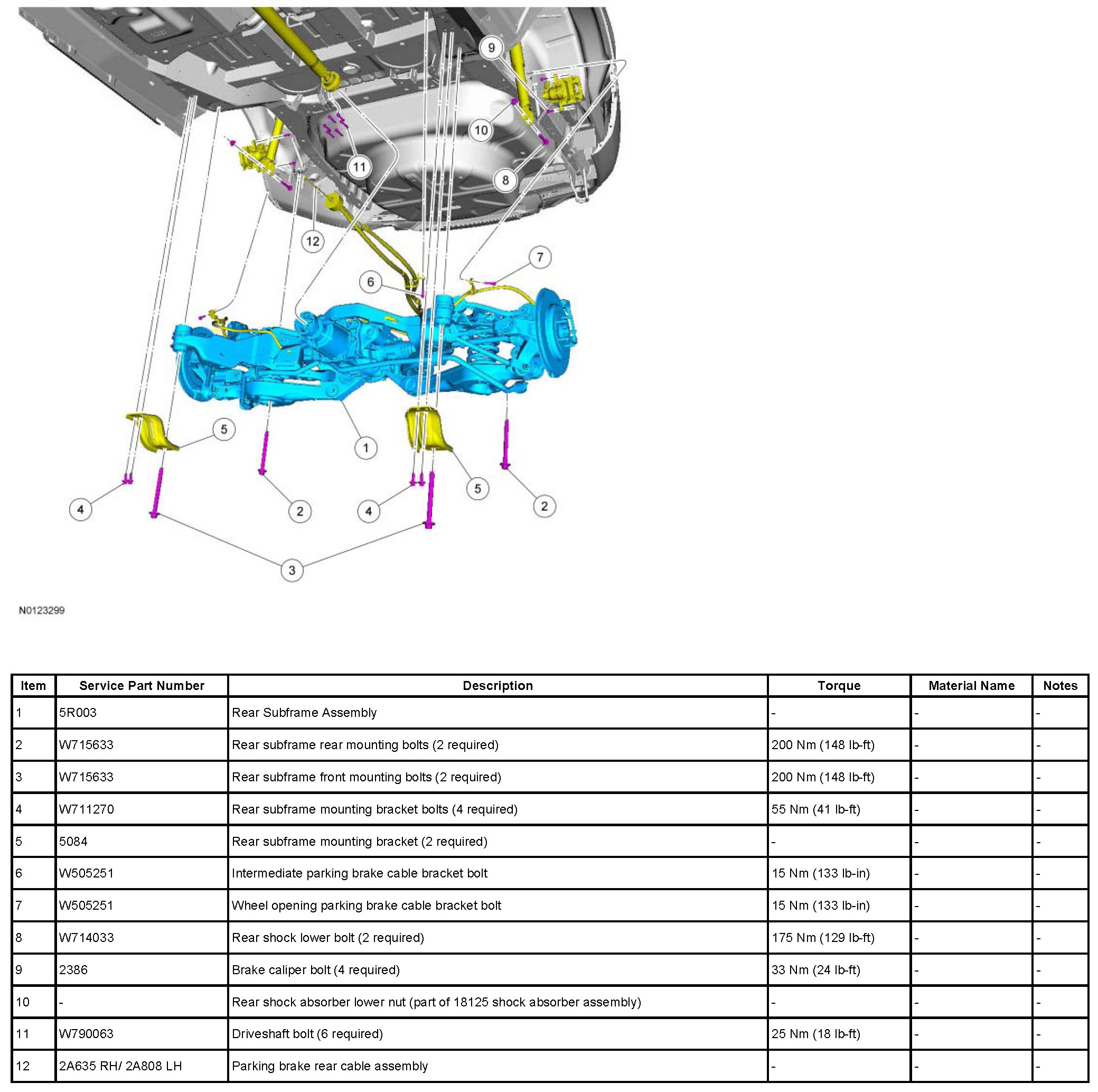

Exploded View
NOTE: AWD shown, FWD similar.
Removal
1. Removal Measure and record the vehicle ride height.
2. Remove the rear wheels.
3. With a wax pencil, mark the relational alignment of the rear subframe to the underbody at the mounting locations.
4. Remove the muffler and tail pipe.
5. NOTE: If equipped, index-mark the driveshaft before disconnecting from the rear drive axle.
If equipped, remove and discard the 6 driveshaft bolts and position the driveshaft aside.

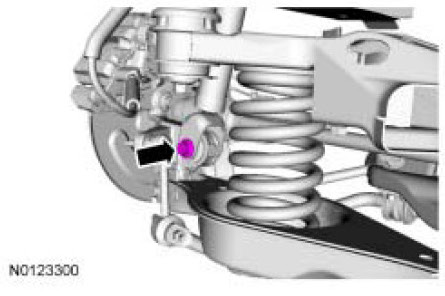

6. Remove and discard the 2 sway bar link upper nuts and reposition the sway bar.
7. Using a suitable jackstand, support the lower control arm.

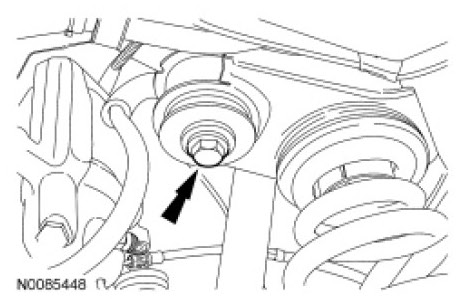

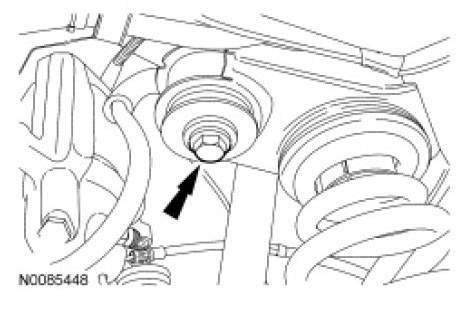

8. Remove and discard the 2 rear shock absorber lower bolts.
9. Remove the jackstand from the lower control arm.

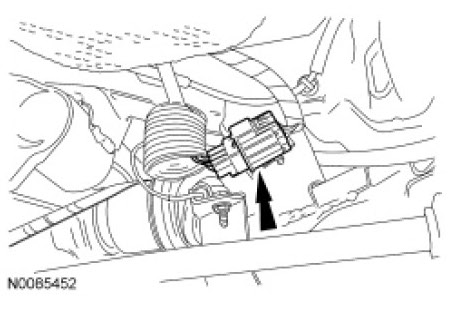

10. Disconnect the subframe assembly main electrical connector.
11. Release the parking brake cable tension.
12. Disconnect the RH parking brake cable from the front parking brake cable and the frame cable bracket.

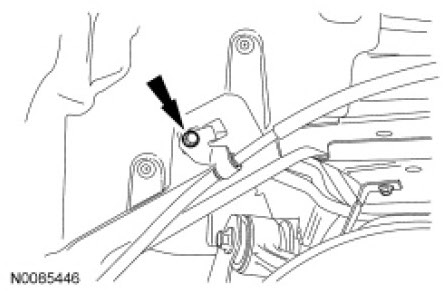

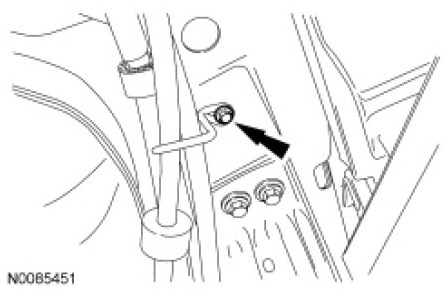

13. Remove the rear parking brake cable bracket bolt and position the rear parking brake cable bracket aside.
14. NOTE: LH shown, RH similar.

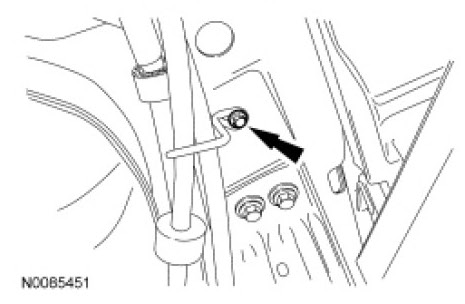

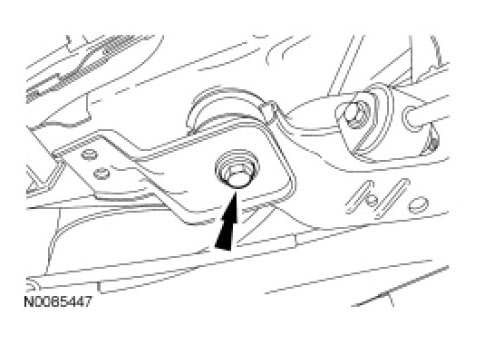

Remove the LH and RH wheel opening parking brake cable bracket bolts and position the wheel opening parking brake cable brackets aside.
15. Disconnect the parking brake cables from the brake calipers.

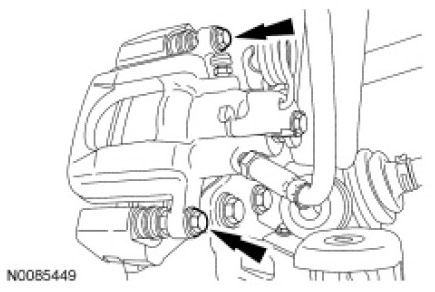

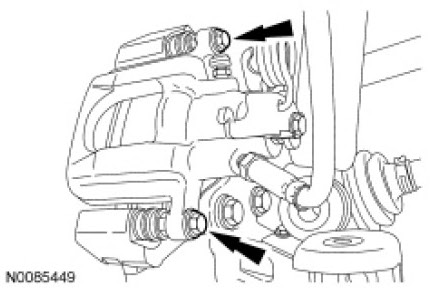

16. Remove the 4 rear brake caliper bolts.
17. NOTICE: Do not allow the caliper to hang from the brake hose or damage to the hose can occur.
NOTE: It is not necessary to disconnect the hydraulic brake lines.
Remove the 2 rear brake calipers and position aside.
- Support the 2 rear brake caliper using mechanic's wire.

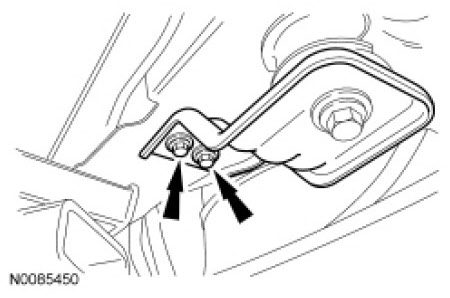

18. Remove and discard the 4 rear subframe assembly bracket bolts.
19. NOTICE: When positioning the lifting table, be sure to support the rear subframe assembly on the subframe rails. Do not lift on the rear differential or rear lower control arms, damage may occur.
Position 300-OTC1585AE under the subframe assembly.
20. Remove and discard the 2 rear subframe assembly forward bolts and remove the 2 rear subframe assembly brackets.
21. Remove and discard the 2 rear subframe assembly rearward bolts.
22. Lower the rear subframe assembly from the vehicle.
Installation
1. Position the subframe to the vehicle and loosely install the 2 new rear subframe rearward bolts.
2. Position the 2 rear subframe assembly brackets and loosely install the 2 new rear subframe forward bolts.
3. Align the subframe to the alignment marks made during removal.
4. Tighten the 2 new rear subframe rearward bolts.
- Tighten to 200 Nm (148 lb-ft).
5. Tighten the 2 new rear subframe forward bolts.
- Tighten to 200 Nm (148 lb-ft).
6. Install the 4 new rear subframe assembly bracket bolts.
- Tighten to 55 Nm (41 lb-ft).
7. Position the 2 rear brake calipers and install the 4 rear brake caliper bolts.
- Tighten to 33 Nm (24 lb-ft).
8. Connect the parking brake cables to the brake calipers.
9. NOTE: LH shown, RH similar.
Position the LH and RH wheel opening parking brake cable brackets and install the wheel opening parking brake cable bracket bolts.
- Tighten to 15 Nm (133 lb-in).

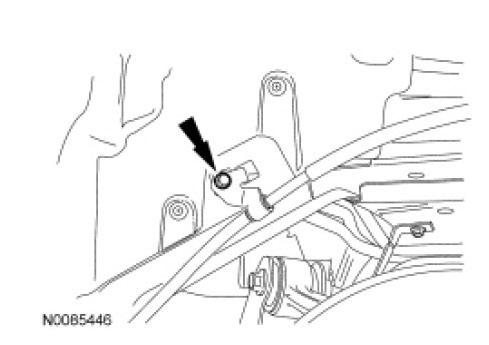

10. Position the rear parking brake cable bracket and install the rear parking brake cable bracket bolt..
- Tighten to 15 Nm (133 lb-in).
11. Connect the RH parking brake cable to the front parking brake cable and the frame cable bracket.
12. Adjust the parking brake cable tension.

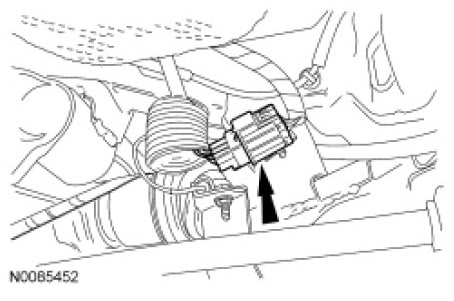

13. Connect the subframe assembly main electrical connector.
14. Install the 2 new rear shock absorber lower bolts.
- Tighten to 175 Nm (129 lb-ft).
15. Using a suitable jackstand, support the lower control arm.
16. Position the sway bar and install the 2 new sway bar link upper nuts.
- Tighten to 150 Nm (111 lb-ft).
17. Remove the jackstand from the lower control arm.
18. NOTE: If equipped, align the driveshaft using the index-mark made during removal.
If equipped, position the driveshaft and install the 6 new driveshaft bolts.
- Tighten to 25 Nm (18 lb-ft).
19. Install the muffler and tail pipe.
20. Install the rear wheels.
