Electrical - Battery Discharged After Vehicle Sits 2 Weeks
TSB 13-3-403/07/13
DISCHARGED BATTERY - VEHICLE NOT DRIVEN
FOR TWO WEEKS OR LONGER
FORD:
2013 Escape
ISSUE
Some 2013 Escape vehicles built on 8/28/2012 and through 12/5/2012 and equipped with a roof opening panel may exhibit a discharged battery condition only after the vehicle has not been driven for two weeks or longer.
ACTION
Follow the Service Procedure steps below to correct the condition.
SERVICE PROCEDURE
Replace the roof opening panel motor shade and roof opening panel motor sliding front panel. Refer to Workshop Manual, Section 501-17.

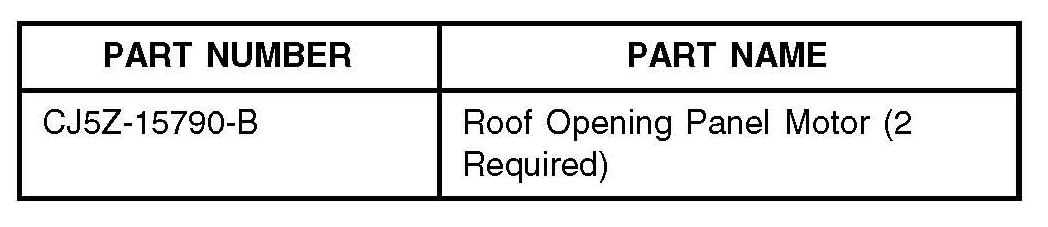

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
130304A 2013 Escape: Replace The 2.4 Hrs.
Roof Opening Panel
Motors For The Shade
And Sliding Front Panel
Following The Service
Procedure (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
15790 42
