Wiper Motor - Windshield

Wiper Motor - Windshield

Removal

1. Remove the wiper mounting arm and pivot shaft. REFER to Wiper Mounting Arm and Pivot Shaft .

2. Using a flat-blade screwdriver or a suitable tool at the location shown, separate the wiper motor linkage arm from the wiper pivot arm linkage.

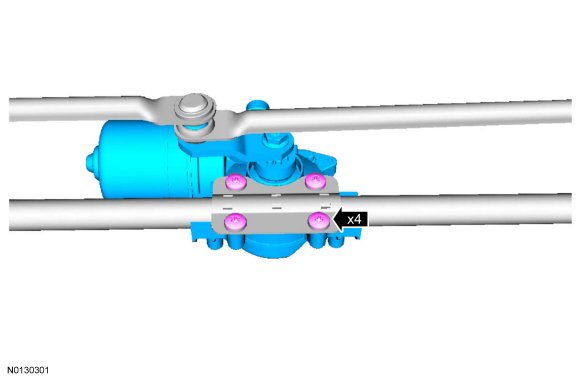

3. Remove the 4 wiper motor bolts and the wiper motor.
- To install, tighten to 18 Nm (159 lb-in).





Installation

1. To install, reverse the removal procedure.
