Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Diagrams
>>

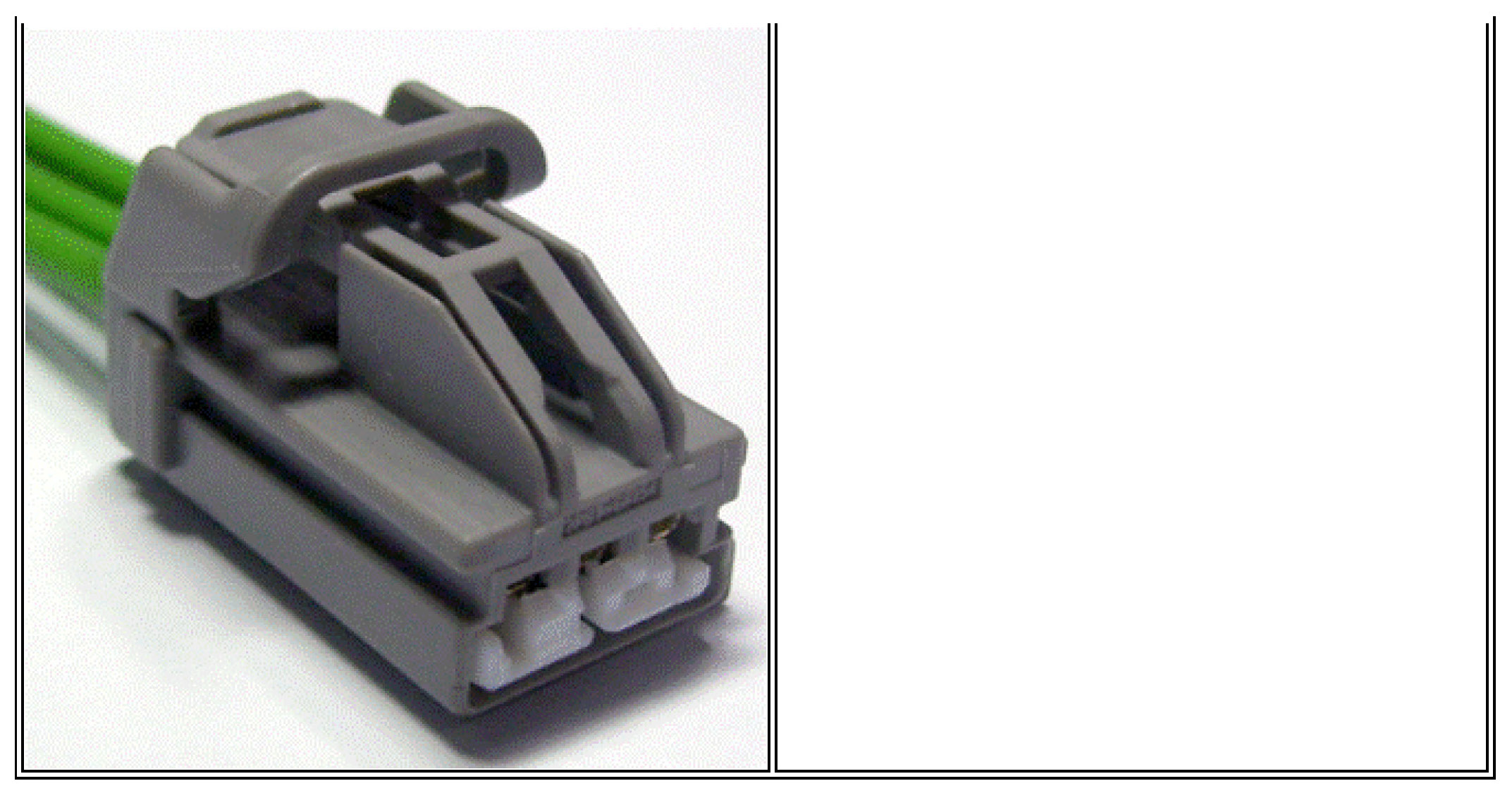

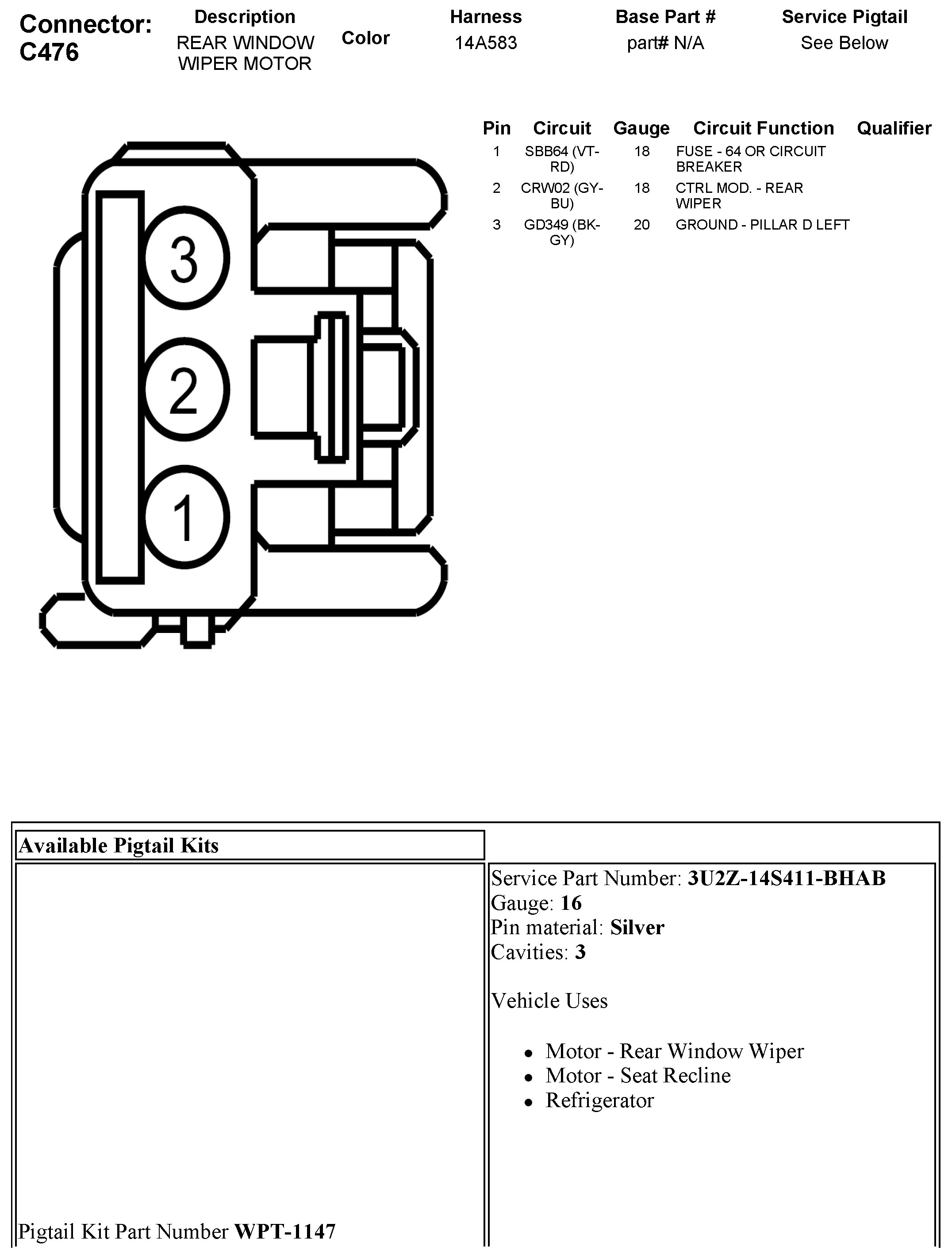

C476 Rear Window Wiper Motor
C476 Rear Window Wiper Motor
