Glass, Frames and Mechanisms - Exploded View, Front Door




Glass, Frames and Mechanisms - Exploded View, Front Door

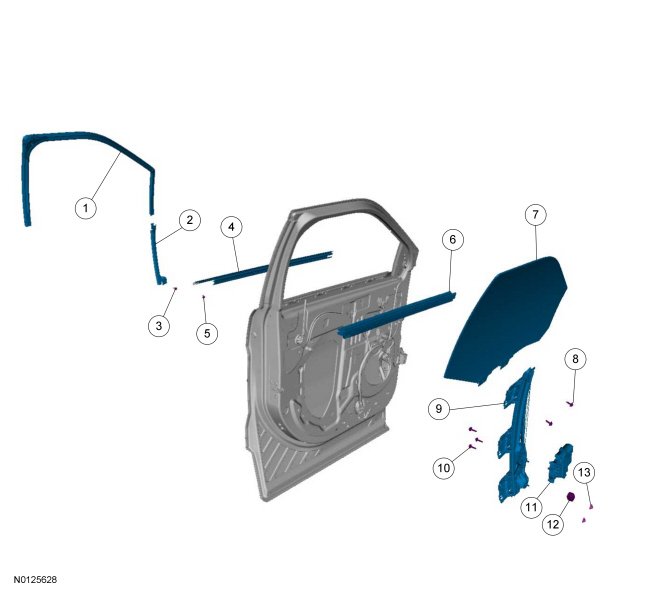

Exploded View

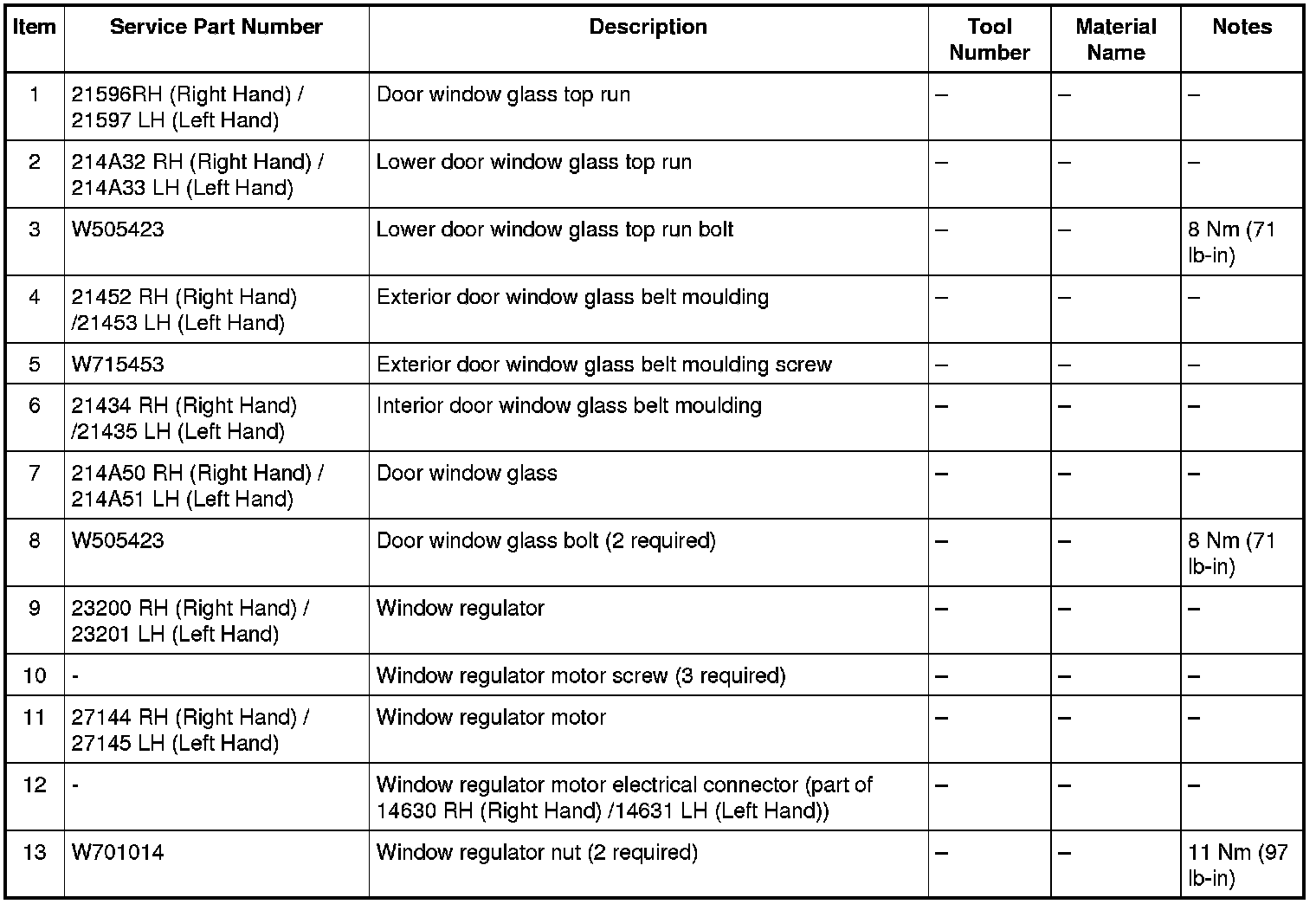

Glass, Frames, and Mechanisms
