Window Glass - Rear

Window Glass - Rear

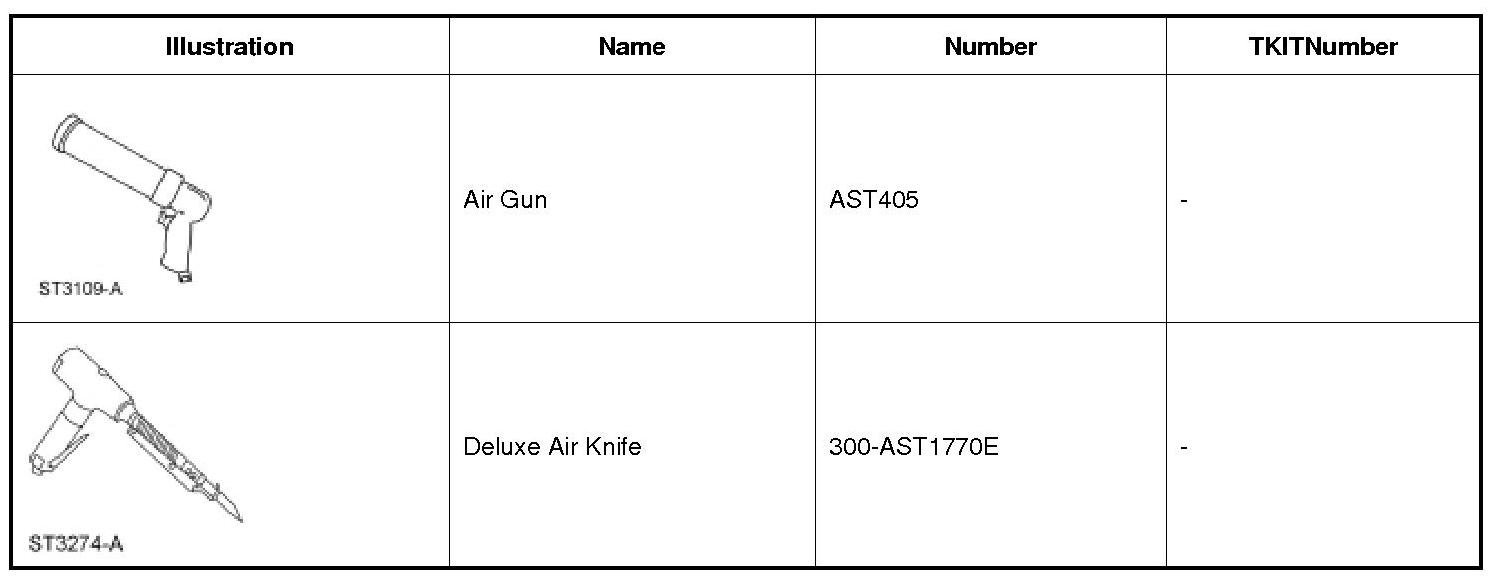

Special Tool(s)

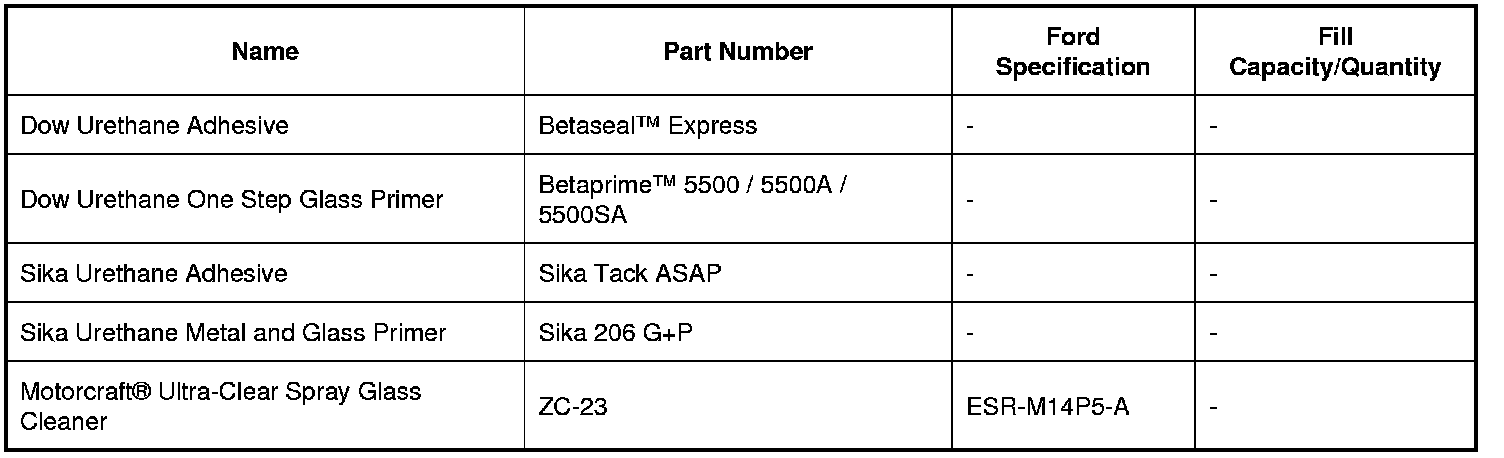

Material(s)

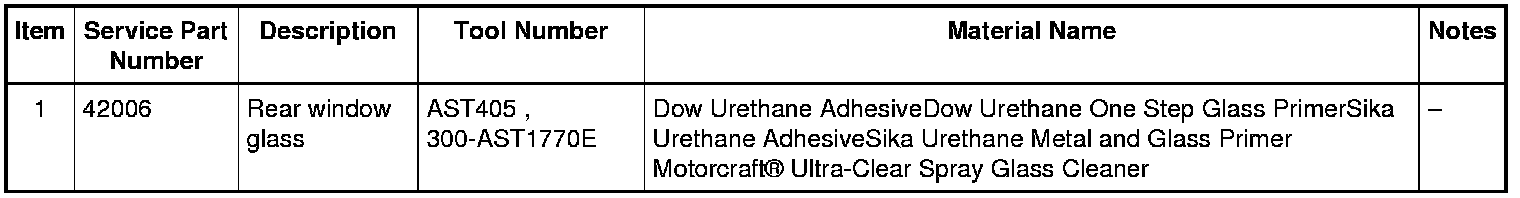

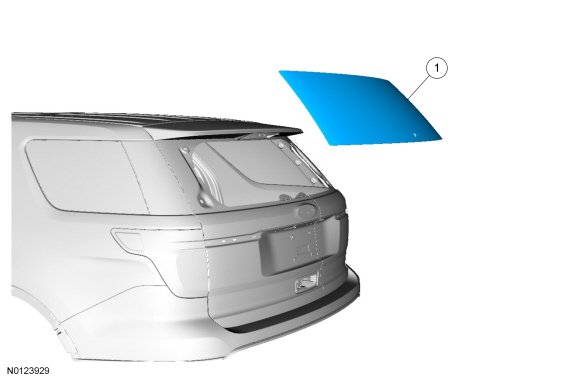

Exploded View










Removal

1. Remove rear wiper motor. REFER to Wiper Motor - Rear Window .

2. Remove the liftgate spoiler. REFER to Spoiler .

3. Disconnect the 2 liftgate window defrost electrical connectors.

4. WARNING: Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTICE: To avoid rust formation, use extreme care not to scratch the paint or primer, or otherwise damage the pinch weld during glass removal.

NOTE: Lubricate the existing urethane adhesive with water to aid the 300-AST1770E while cutting.

NOTE: Insert the blade into the 300-AST1770E so that the flat side is against the glass. This will leave the entire urethane adhesive bead on the pinch weld and allow a dry fit of the replacement rear glass.
Using the 300-AST1770E , begin cutting the urethane adhesive at the top center and work toward the bottom corners.

5. Using the 300-AST1770E , cut the remaining urethane adhesive and remove the rear window glass.

Installation

1. NOTE: For additional material guidelines, refer to the manufacturer's installation information.
Dry fit the liftgate window glass to the existing urethane adhesive bead on the body pinch weld.

1. For a uniform fit, use the 2 liftgate window glass alignment pins to align the liftgate window glass in the opening.

2. Use a non-permanent pencil to make alignment marks on the liftgate window glass and body to aid in the installation alignment of the liftgate window glass.

2. Remove the liftgate window glass.

3. WARNING: Repair any corrosion found on the pinch weld. The pinch weld is a structural component of the vehicle. Corrosion left unrepaired may reduce the structural integrity of the vehicle. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.
Using an appropriate tool, trim the urethane adhesive leaving a 1 mm (0.04 in) to 2 mm (0.08 in) base of original equipment urethane adhesive on the pinch weld.





4. Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.

5. If installing the original liftgate window glass, remove the excess urethane adhesive.

6. Clean the inside of the liftgate window glass surface with glass cleaner.

7. NOTE: Be sure to use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and glass primer. REFER to Material(s) .
If installing a new liftgate window glass, apply glass primer according to the manufacturer's instructions. Allow at least 6 minutes to dry.

8. Cut the urethane adhesive applicator tip to specification.





9. NOTE: Use either a high-ratio, electric or battery-operated caulk gun that will apply the urethane adhesive with less effort and continuous bead.

Apply urethane adhesive on top of the existing trimmed urethane adhesive bead on the pinch weld, starting and ending at the bottom of the liftgate window glass opening near the center, making sure there are no gaps in the bead.

10. WARNING: Do not drive vehicle until the urethane adhesive seal has cured. Follow urethane adhesive manufacturer's curing directions. Inadequate or incorrect curing of the urethane adhesive seal will adversely affect glass retention. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

NOTICE: Before positioning the rear quarter glass, open vehicle windows to prevent the air pressure of closing doors from affecting the urethane adhesive bond.

Install the liftgate window glass on the vehicle using the alignment pins (if equipped) or the alignment marks made previously.

11. NOTE: The urethane adhesive must cure for a minimum of one hour before testing for air or water leaks.

After the urethane adhesive has cured, check the liftgate window glass seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.

12. Connect the 2 liftgate window defrost electrical connectors.

13. Install the liftgate spoiler. REFER to Spoiler .

14. Install the rear wiper motor. REFER to Wiper Motor - Rear Window .
