Removal and Replacement

Flexplate

Special Tool(s)






Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .

2. Remove the transaxle. REFER to Transmission .

3. NOTE: Do not reuse the flexplate bolts.

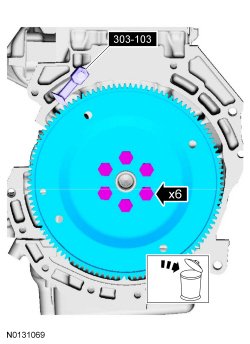

Install 303-103 (T74P-6375-A) and remove the 6 bolts and the flexplate.

- Discard the bolts.






Installation

1. NOTE: Special bolts are used for installation. Do not use standard bolts.
Install the flexplate, the 6 new bolts and the Flywheel Holding Tool.
-
- Tighten in the sequence shown in 3 stages:
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (59 lb-ft).
- Stage 3: Tighten to 120 Nm (89 lb-ft).





2. Install the transaxle. REFER to Transmission .

3. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
